NC S Series Mandrel Hydraulic Tube Bender with Easy-Program Setting-Zhangjiagang HuaShun Machinery Manufacture Co.,Ltd.

Operation and Control

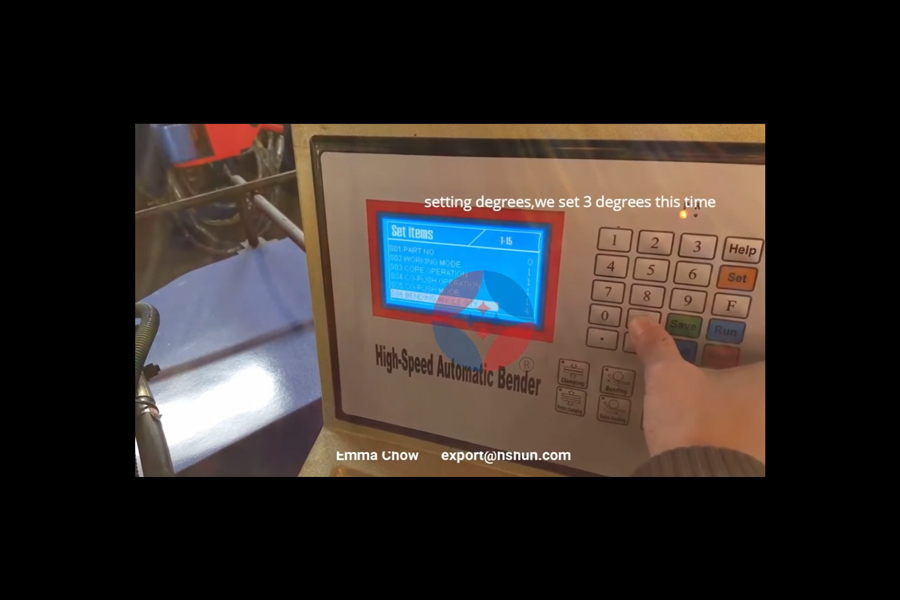

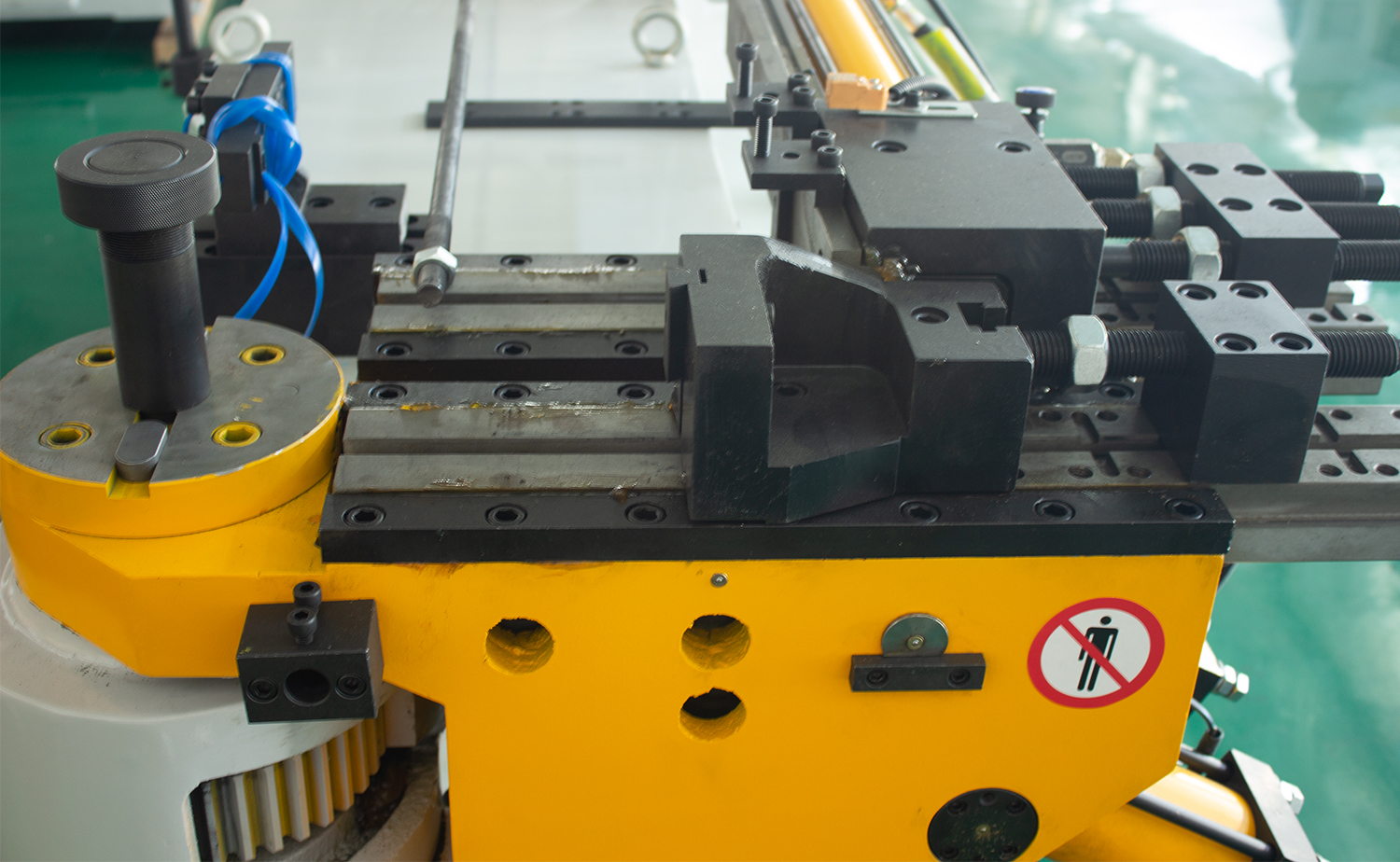

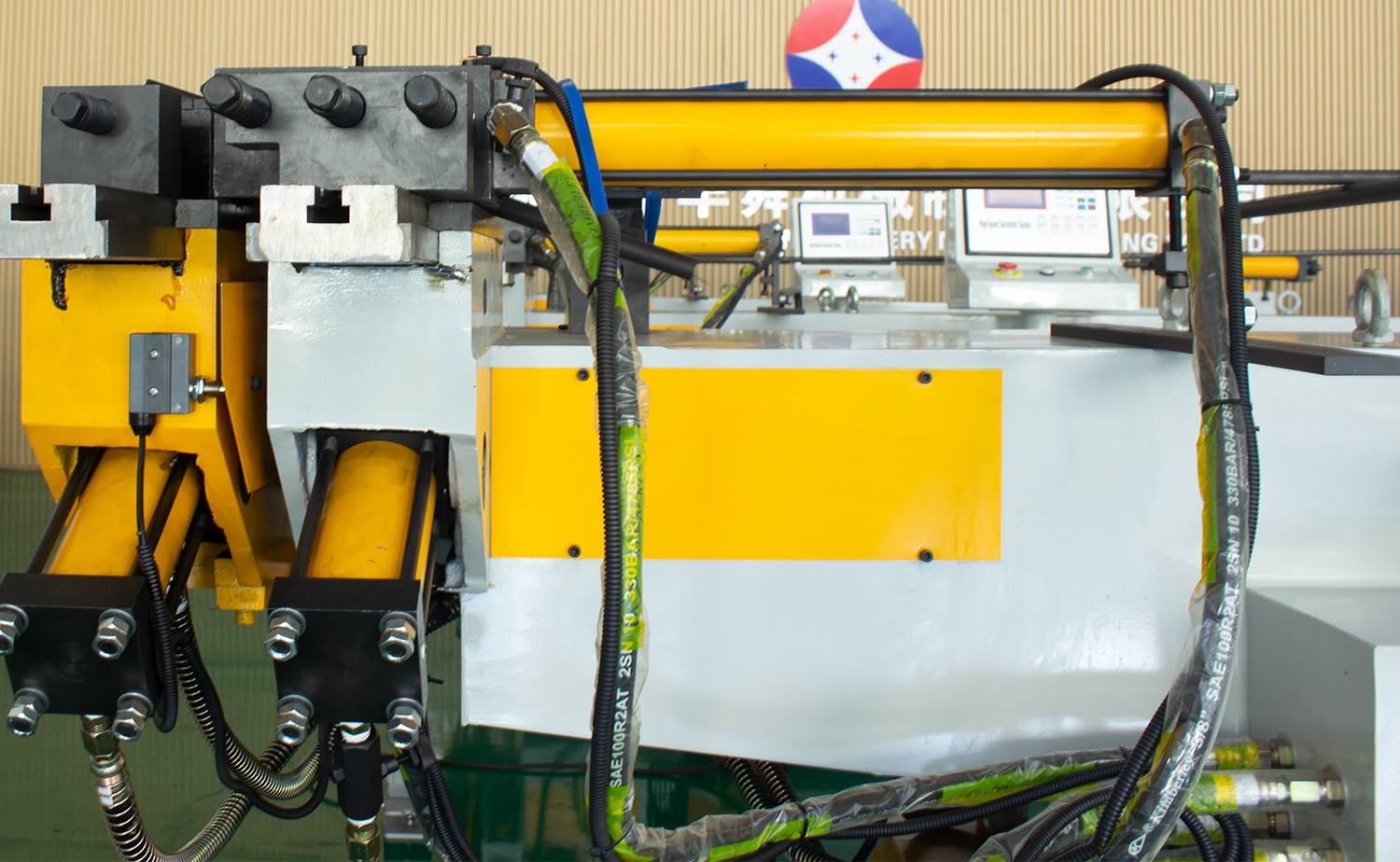

The Human Interface provides easy switching between auto and manual modes. The machine features a standard clockwise bending direction and fully hydraulic clamping on both the clamp die and pressure die for secure material handling. The hydraulic system is arranged in a level-way configuration for stability.

Bending System

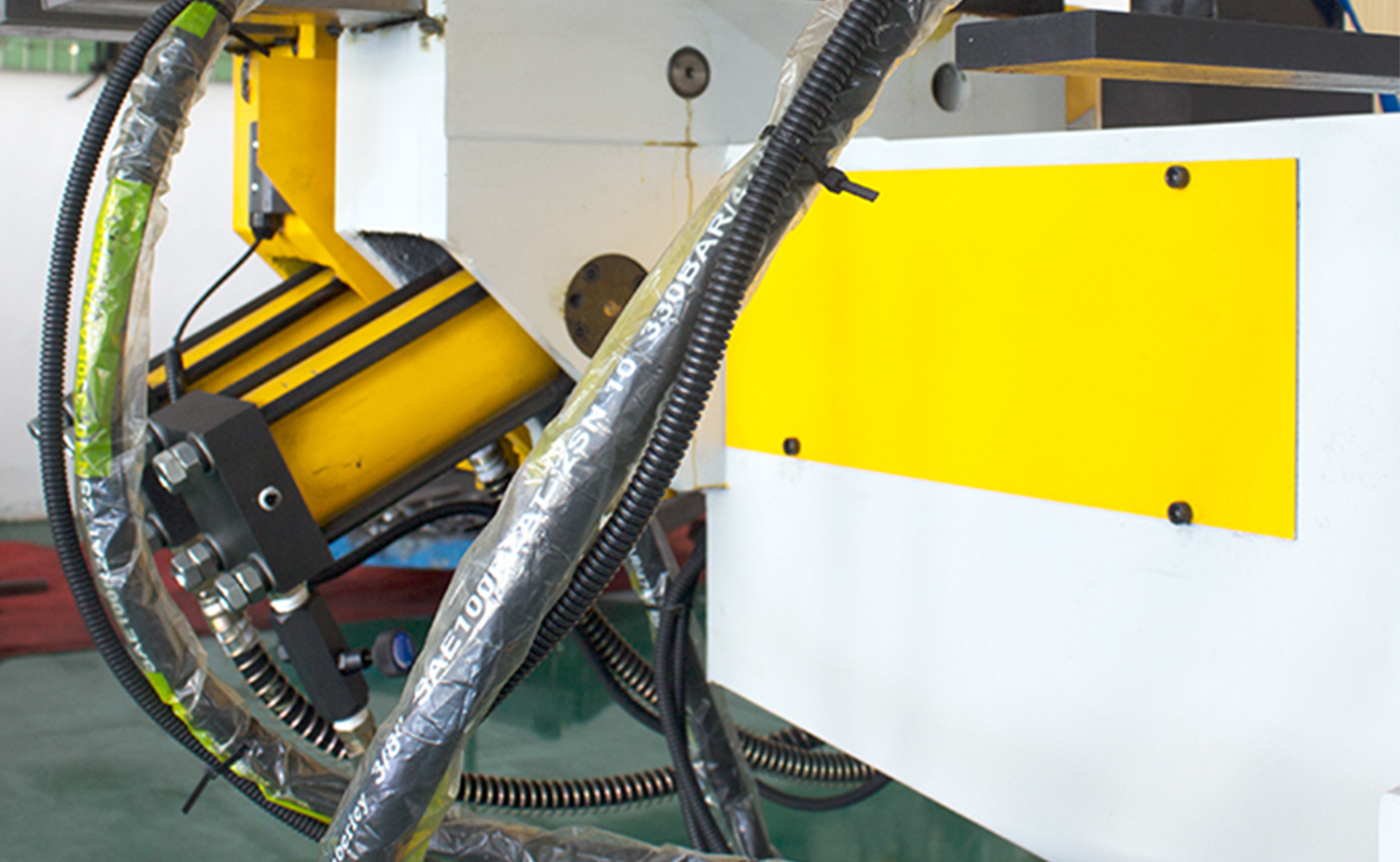

It uses a direct-acting hydraulic pressure die with an adjustable speed valve. The machine stores up to 16 programs, each supporting up to 16 bends, and includes programmable material spring-back settings for each bend angle.

Axes and Feeding

The bending axis is cylinder-driven, while the feeding and rotating axes are manual, offering flexibility and ease of operation.

Material Compatibility

The machine delivers precise, repeatable bends in materials such as steel, stainless steel, aluminum, titanium, and brass. A foot pedal start mechanism allows for quick cycle initiation.

Included Accessories

Includes water cooling, tooling for draw bending, a wiper die bracket, and a mandrel rod. Also comes with an operation manual, tool box, and adjustable tools. Available with flexible electrical options (3-phase 220V, 380V, or 415V).

Model	SB-38NC	SB-50NC	SB-63NC
Max Pipe O.D.	38×2.0 mm	50×2.5 mm	63×3.5 mm
Stainless Round Tube	32×1.5 mm	45×1.5 mm	50×2.0 mm
Mild Steel Square Tube	25×2.0 mm	40×2.0 mm	45×3.0 mm
Max. Travel of Manual	1700 mm	2200 mm	2400 mm
Max. Bending Radius	200 mm	250 mm	300 mm
Max. Bending Angle	190°	190°	190°
Bending Pipe Numbers	16 pcs	16 pcs	16 pcs
Max. Pressure	12 MPa	12 MPa	14 MPa
Motor Power	4 kW	5.5 kW	7.5 kW
Demension	2400×750×1200 mm	2950×850×1200 mm	3300×850×1250 mm
Weight	700 kg	1100 kg	1400 kg
