CNC L Series Fully Automatic Tube Bending Machine with Servo-Hydraulic Control
Back
Features
Basic Parameters
Video
Industry Applications
Contact Us
Features
Automation and Functionality

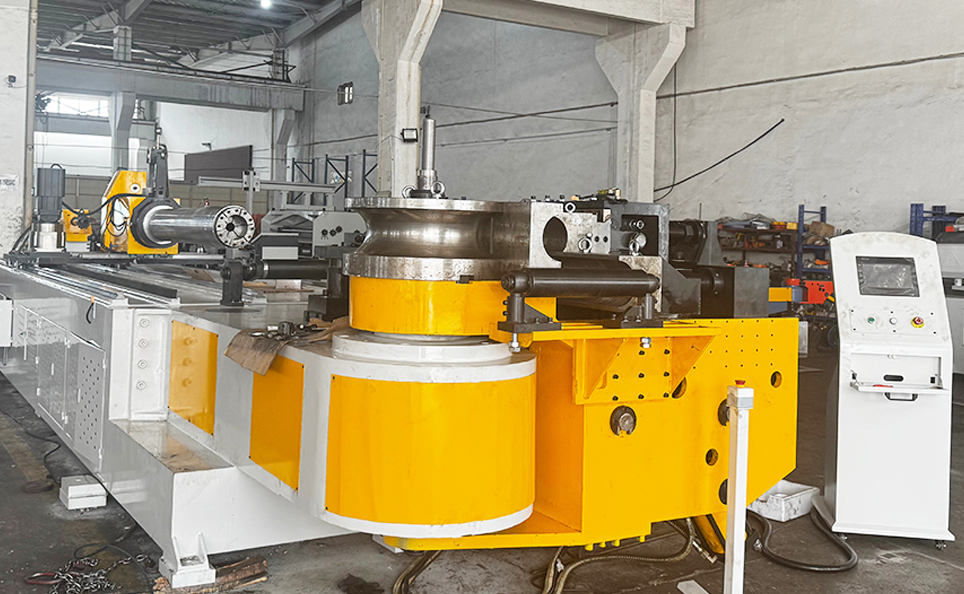

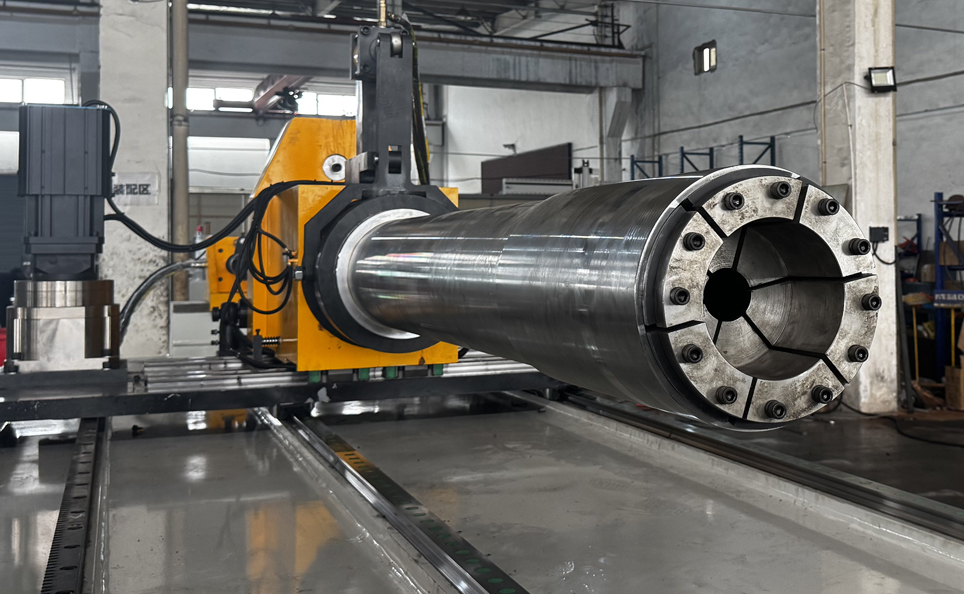

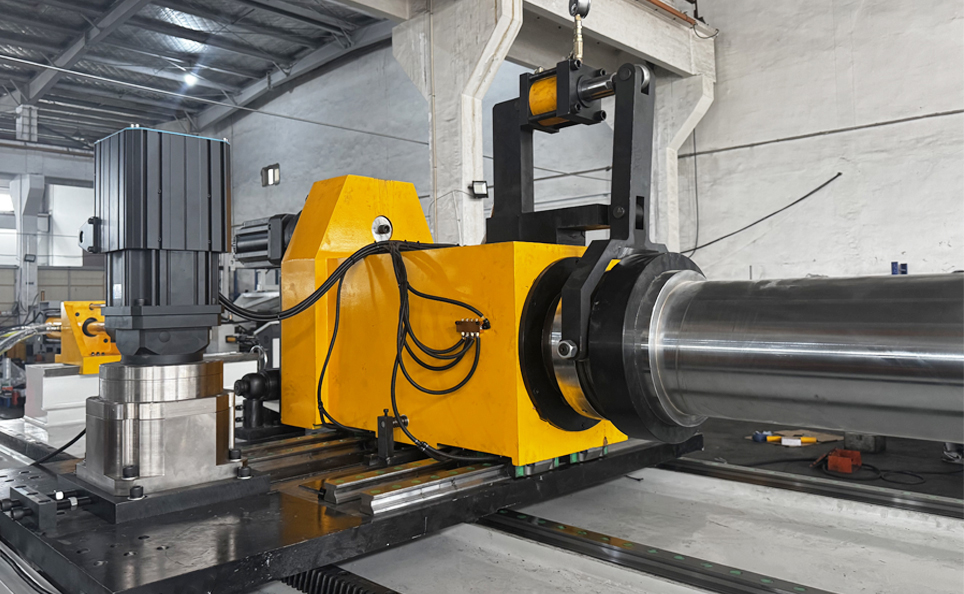

The SB-219CNC is a fully automatic pipe bending machine, providing a cost-efficient solution for high-performance tube and pipe bending. It uses three programmable axes and servo motors for both feeding and rotation, ensuring precision and reliability.
Bending Modes

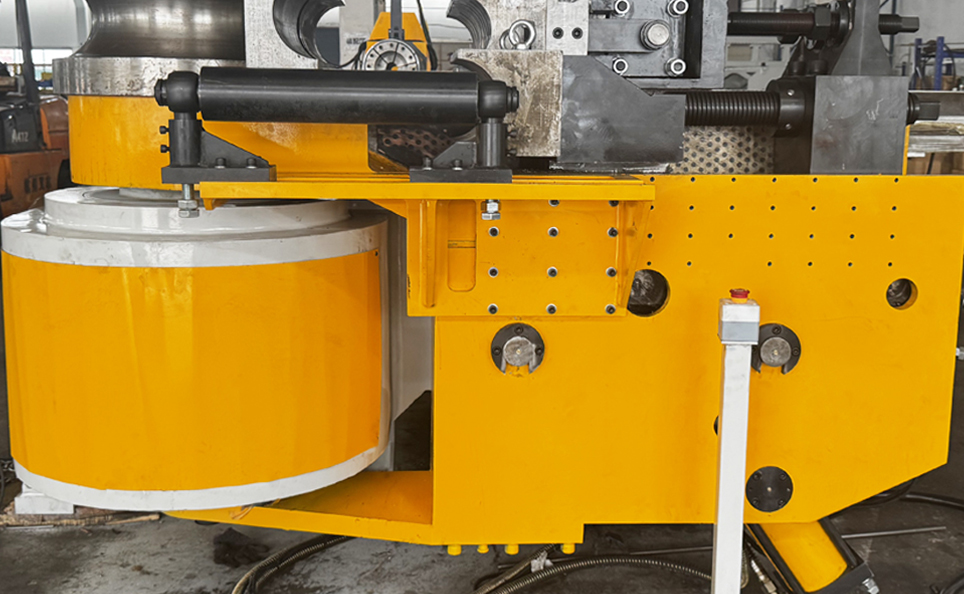

This machine supports two bending modes: hydraulic pipe bending for standard tasks and servo-controlled CNC tube bending for more precise and complex applications. Hydraulic pressure die assists ensure consistent, high-quality bends during each cycle.
Maintenance and Lubrication
The mandrel lubrication system reduces friction and enhances operational efficiency. A centralized greasing system ensures proper lubrication for all moving parts, minimizing wear and improving reliability.
Control and Stability
The touch screen PLC system allows easy operation and real-time monitoring, offering both automatic and manual modes. The electric cabinet features a cooling fan to maintain machine stability and extend service life.
Parameter table
Main Technical Parameter
| Model | SB-219CNC |
| Mild Steel | 219×16 t |
| Stainless Steel | 219×6.0 t |
| Max. Rectangle Pipe | 150×10 t |
| Max. Bending Radius | 1000 mm |
| Max. Bending Angle | 190° |
| Max. Effective Mandrel Length | 4000 mm |
| Bending Accuracy | ±0.15° |
| Bending Speed | 10 mm/s |
| Feeding Accuracy | ±0.1° |
| Feeding Speed | 300 mm/s |
| Rotation Accuracy | ±0.1° |
| Rotation Speed | 100 mm/s |
| Max. Bending Radius Difference | 150 |
