CNC S Series Fully Automatic Tube Bending Machine with Optional Simulation Function-Zhangjiagang HuaShun Machinery Manufacture Co.,Ltd.

Automation and Efficiency

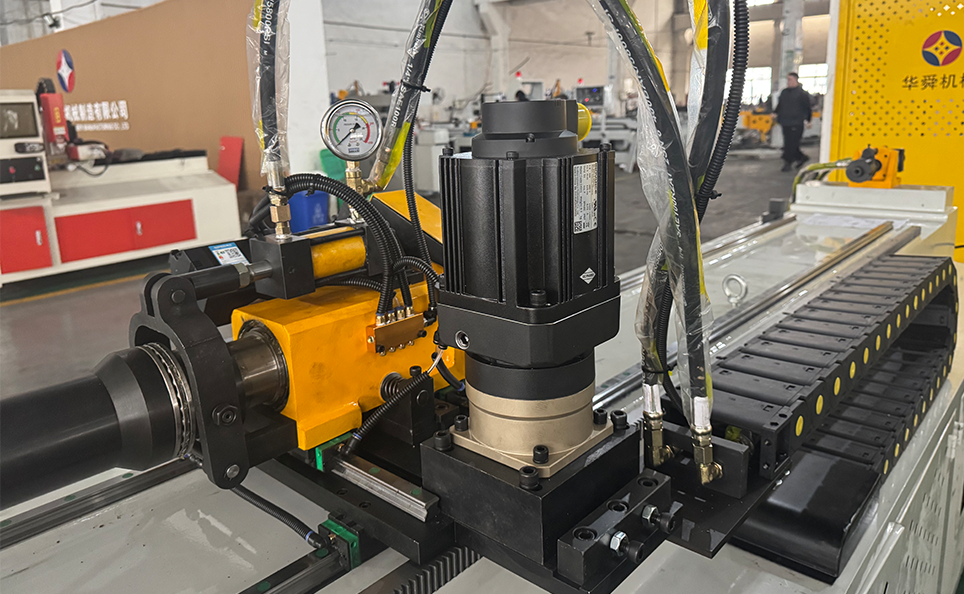

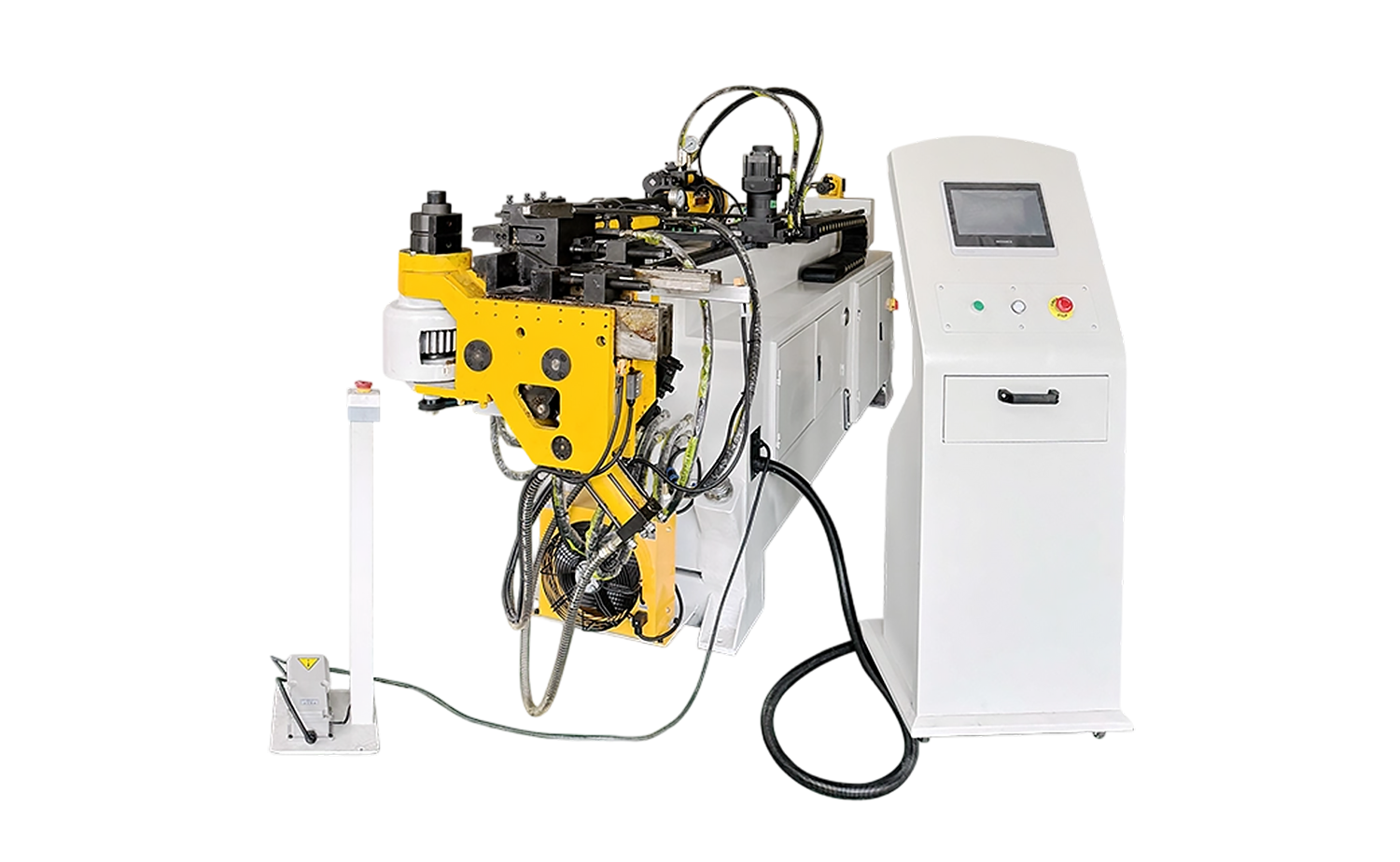

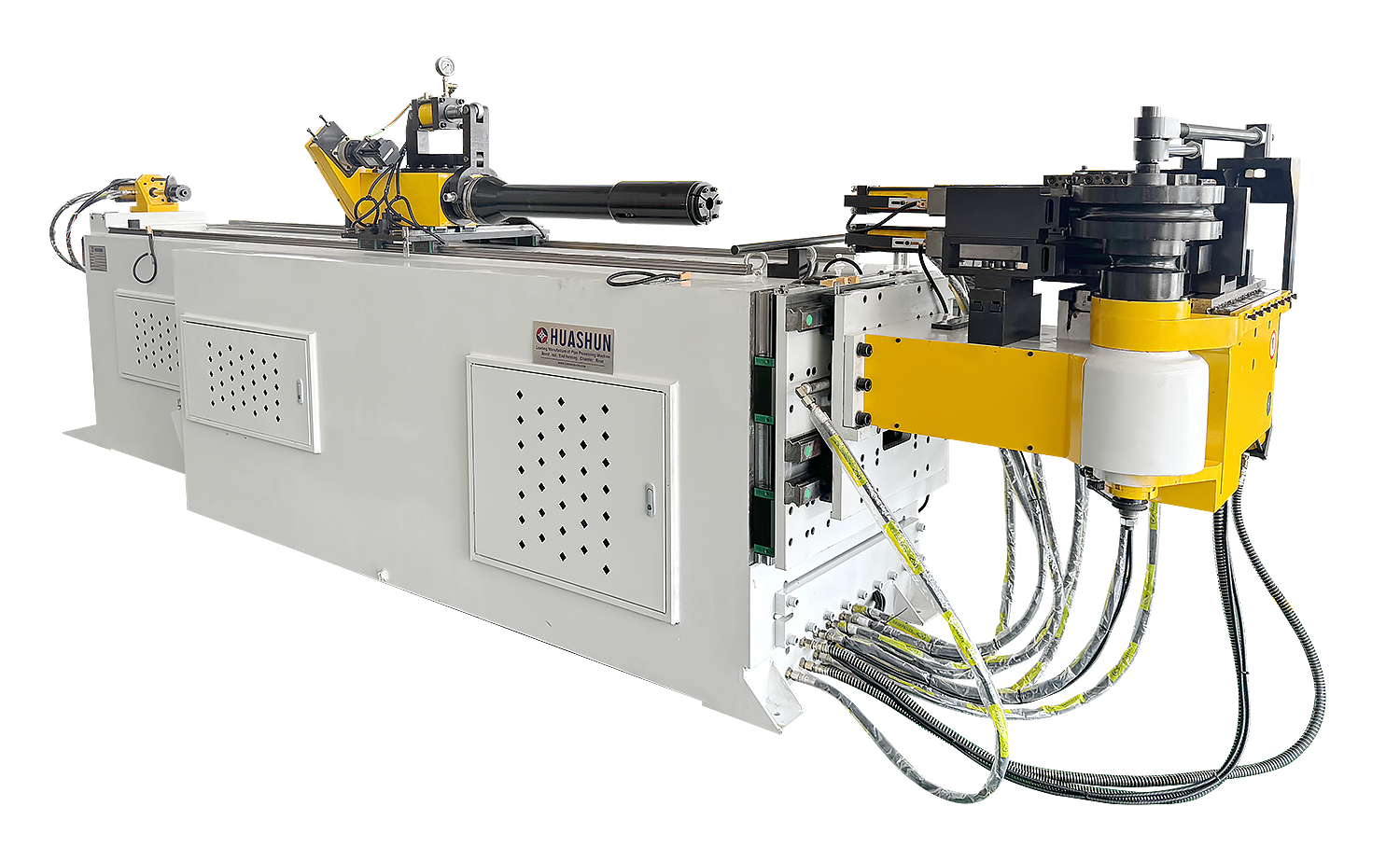

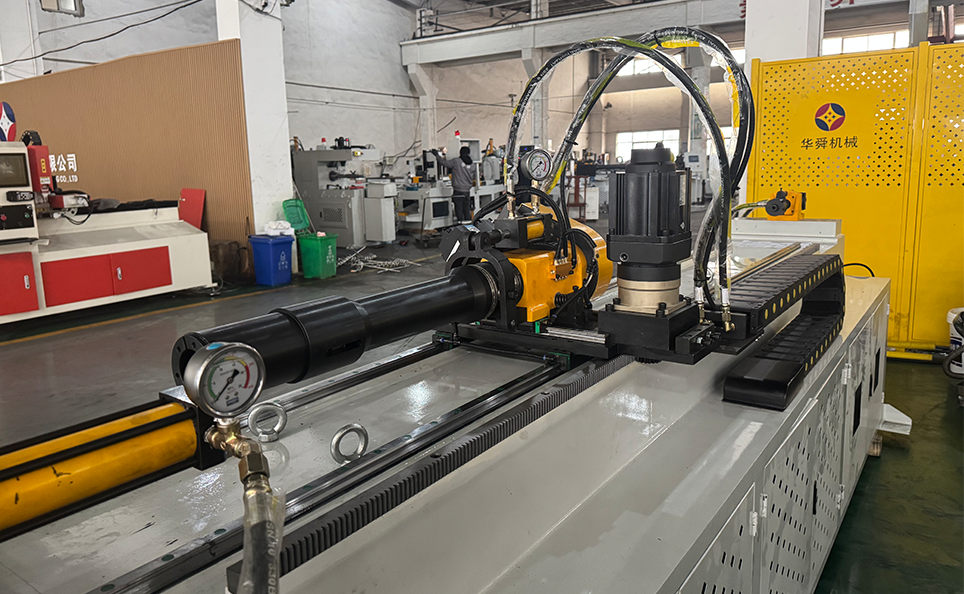

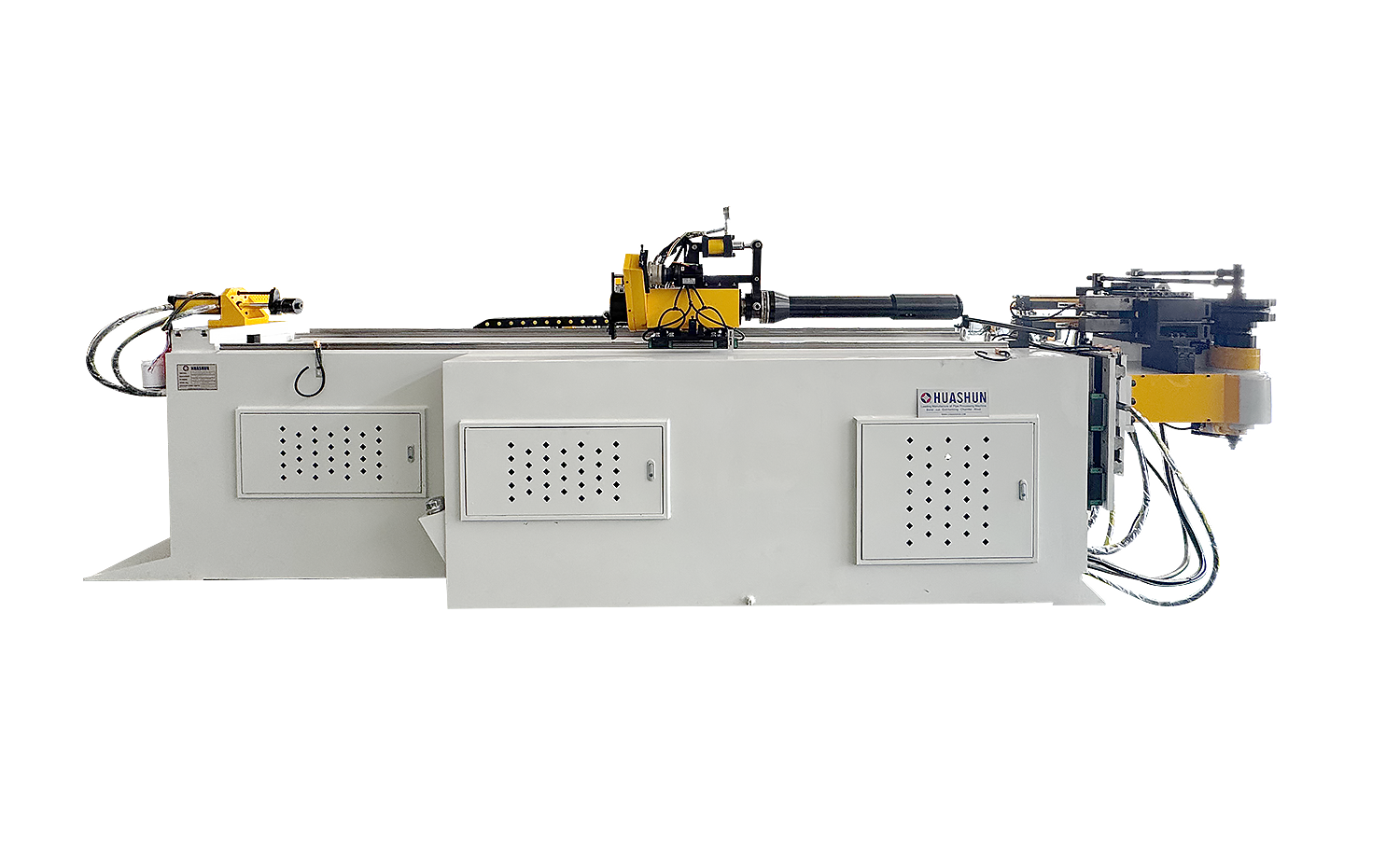

The SB-38CNC is an automated pipe bending machine that combines precision with affordability. With three programmable axes, it utilizes servo motors for feeding and rotation, offering excellent performance and high precision.

Bending Capability

Choose between hydraulic pipe bending and servo-controlled CNC tube bending methods, depending on your application needs. Each bending stack is supported by hydraulic pressure die assists for optimal bending quality.

System Features

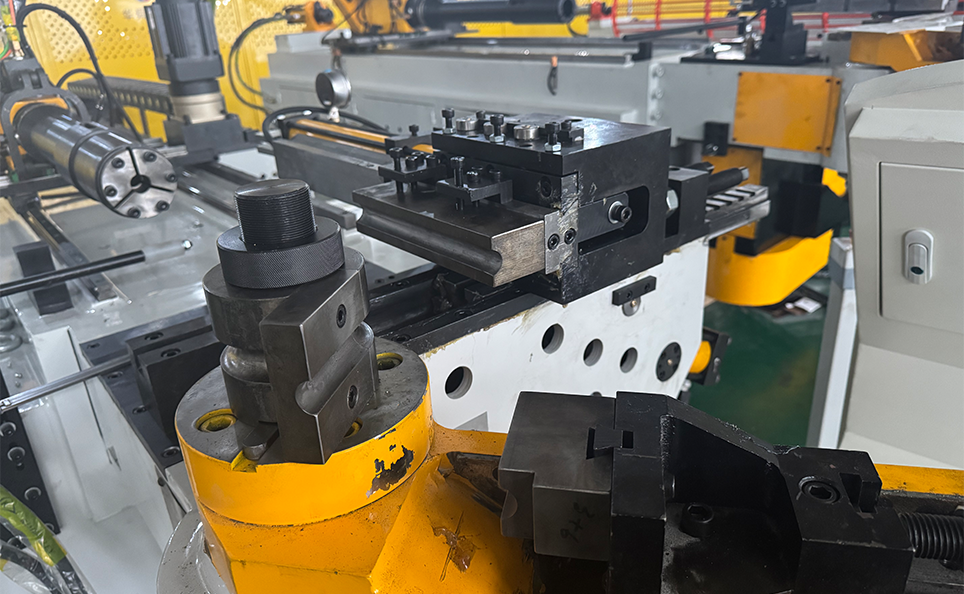

A mandrel lubricating system helps maintain smooth operation, while the wiper, clamping, and pressure die seats contribute to consistent, high-quality bends. The machine also features a centralized greasing system for lubricating all moving parts, reducing wear and increasing reliability.

Control and Cooling

The user-friendly touch screen PLC system makes it easy to operate, with both automatic and manual modes available. The electric cabinet cooling fan helps regulate temperature, ensuring stable machine operation.

Model	SB-38CNC	SB-50CNC	SB-63CNC
Mild Steel	38×2.0 t	50×2.5 t	63×3.5 t
Stainless Steel	32×1.8 t	45×2.0 t	50×2.0 t
Max. Rectangle Pipe	32×1.8 t	32×1.8 t	50×2.5 t
Max. Bending Radius	200 mm	250 mm	300 mm
Max. Bending Angle	190°	190°	190°
Max. Effective Mandrel Length	2500 mm	2500 mm	2800 mm
Bending Accuracy	±0.1°	±0.1°	±0.1°
Bending Speed	150 mm/s	150 mm/s	100 mm/s
Feeding Accuracy	±0.1 mm	±0.1 mm	±0.1 mm
Feeding Speed	1000 mm/s	1000 mm/s	950 mm/s
Rotation Accuracy	±0.1°	±0.1°	±0.1°
Rotation Speed	200 mm/s	200 mm/s	180 mm/s
Max. Bending Radius Difference	80	50	65
