Control and Operation

The Human Interface offers seamless control with auto and manual mode options. The machine bends clockwise with hydraulic clamping for the clamp die and pressure die, positioned in a level-way setup for stability.

Bending Process

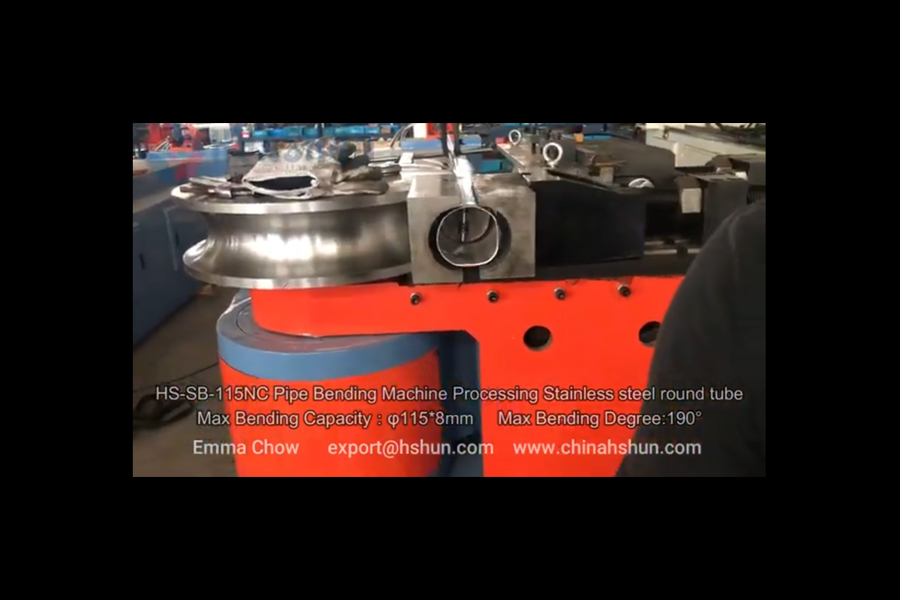

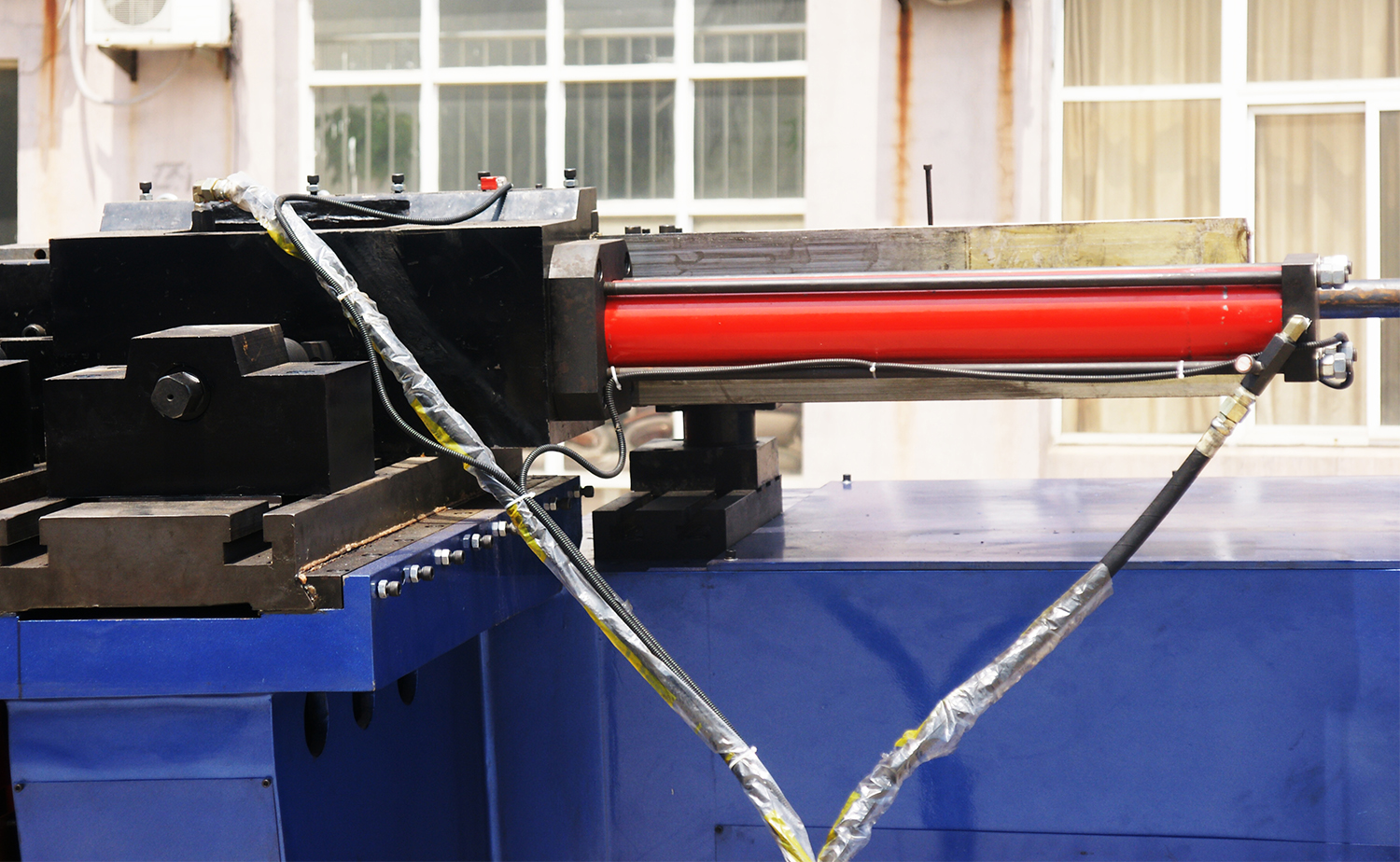

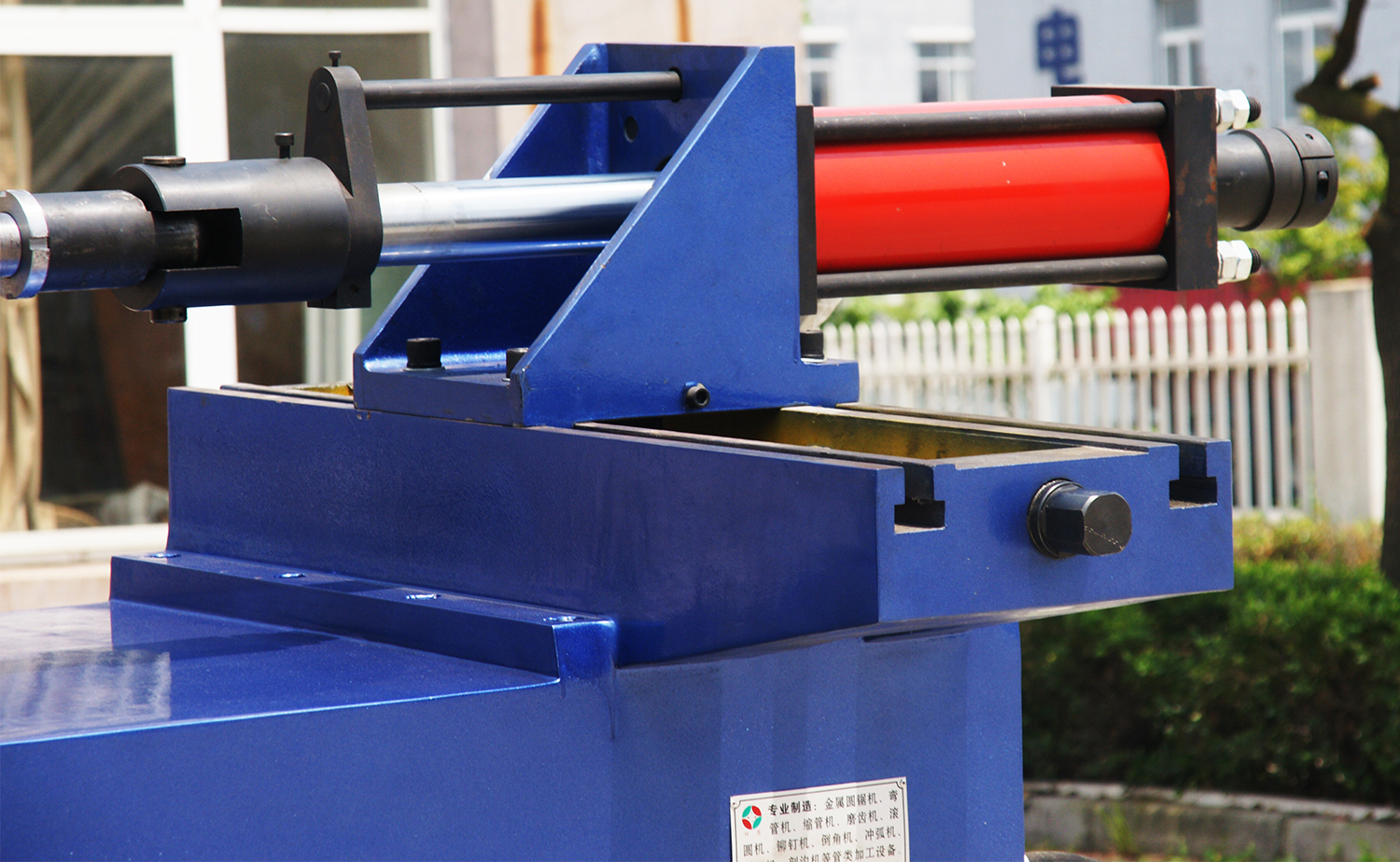

A direct-acting hydraulic pressure die with adjustable speed ensures precise bending. The machine stores up to 16 programs, each supporting 16 bends, and includes programmable material spring-back compensation.

Feeding and Axes

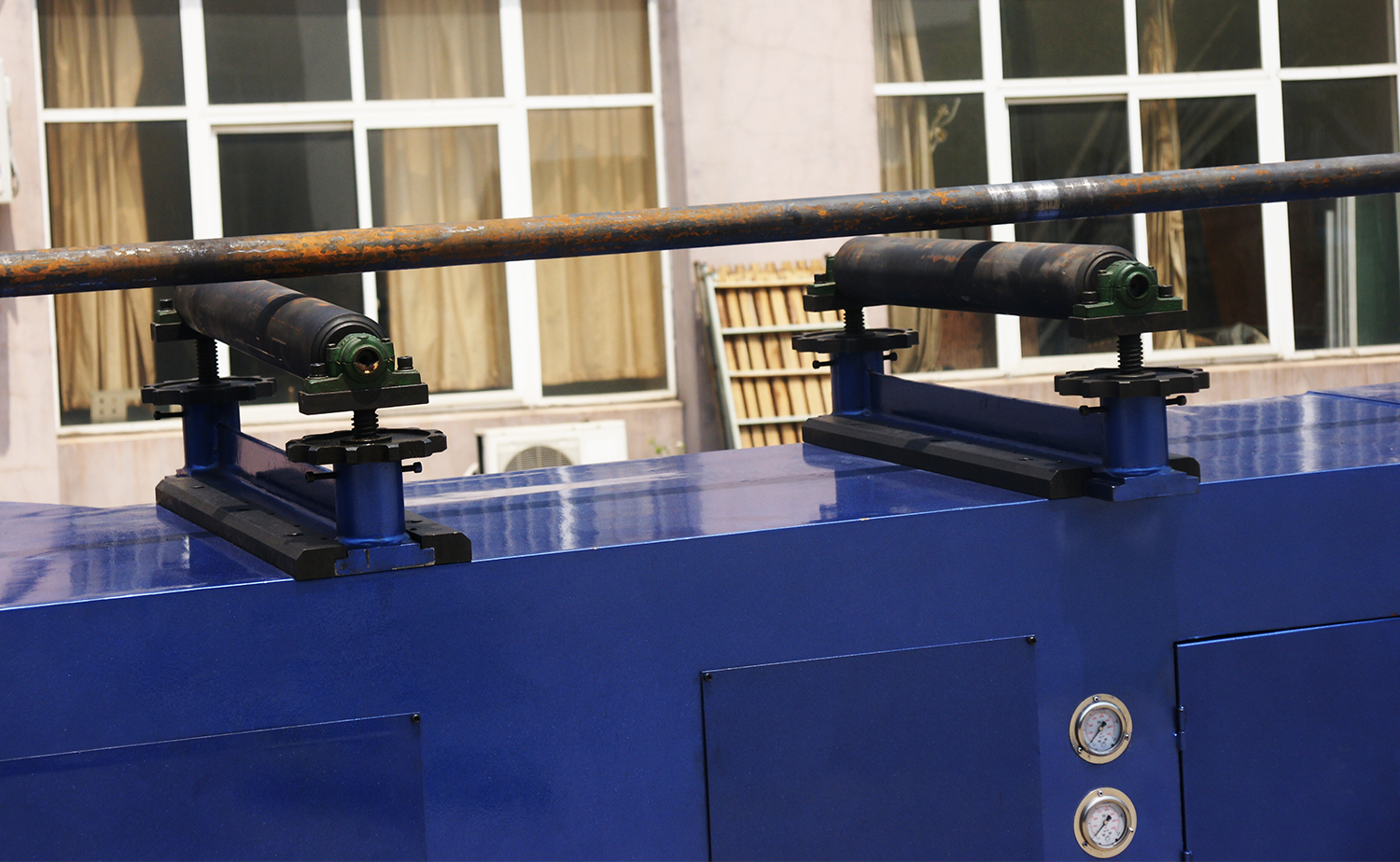

The bending axis is driven by a cylinder, while both feeding and rotating axes are manual for flexible and precise control.

Material Compatibility

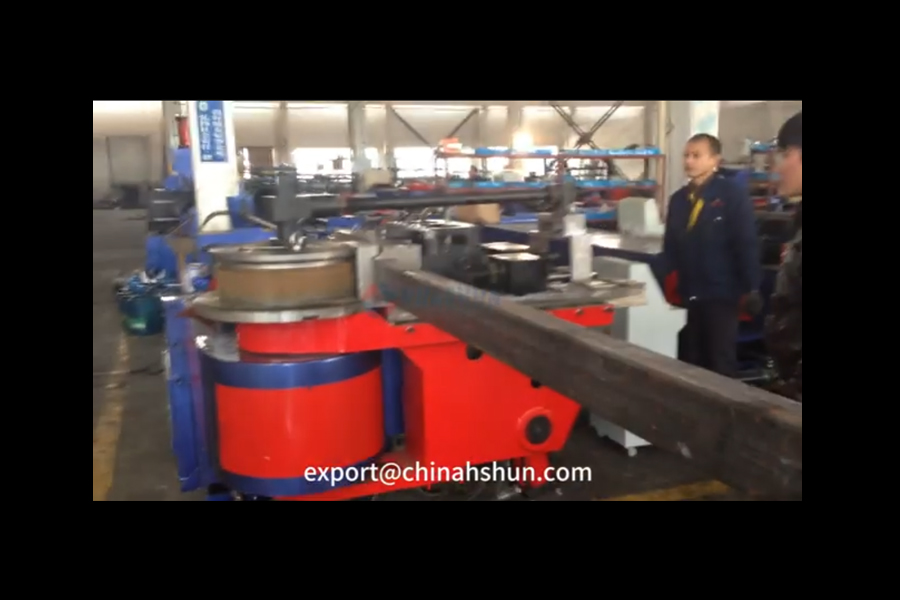

Ideal for repeatable bends in materials like steel, stainless steel, aluminum, titanium, and brass. The foot pedal start mechanism enhances operational efficiency.

Included Features

The system comes with water cooling, draw bending tooling, a wiper die bracket, and a mandrel rod. It also includes an operation manual, tool box, and adjustable tools. Power configurations are available for 3-phase 220V, 380V, or 415V.

Model	SB-219NC
Max Pipe O.D.	219×16 mm
Stainless Round Tube	168×6.0 mm
Mild Steel Square Tube	150×10 mm
Max. Travel of Manual	6000 mm
Max. Bending Radius	1000 mm
Max. Bending Angle	190°
Bending Pipe Numbers	16 pcs
Max. Pressure	18 MPa
Motor Power	45 kW
Demension	9000×2000×2000 mm
Weight	38500 kg
