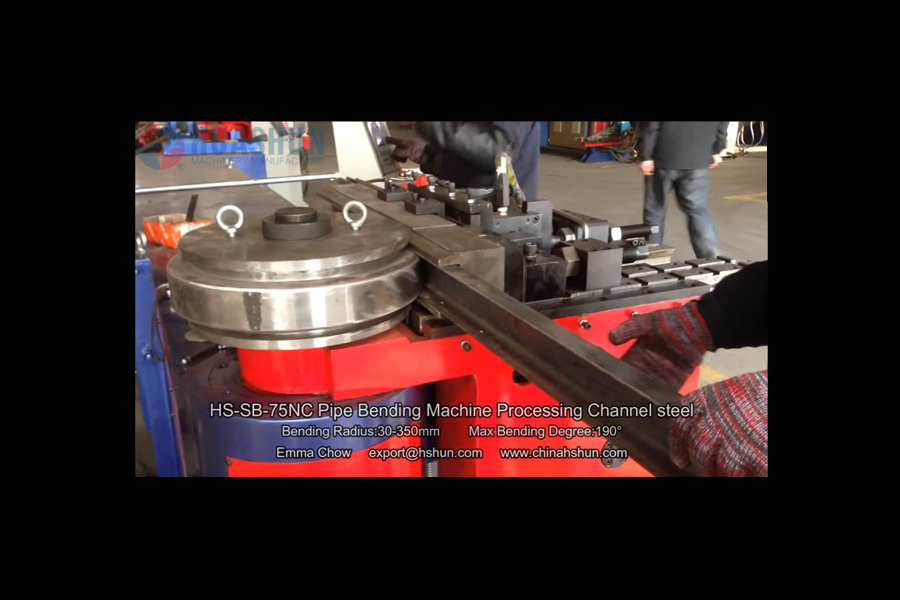

NC M Series Hydraulic Tube Bending Machine with Mandrel Control
Back
Features
Basic Parameters
Video
Industry Applications
Contact Us
Features
User Interface
The Human Interface makes it simple to switch between auto and manual modes. The bending direction is clockwise, with hydraulic clamping on both the clamp die and pressure die, ensuring secure material holding.

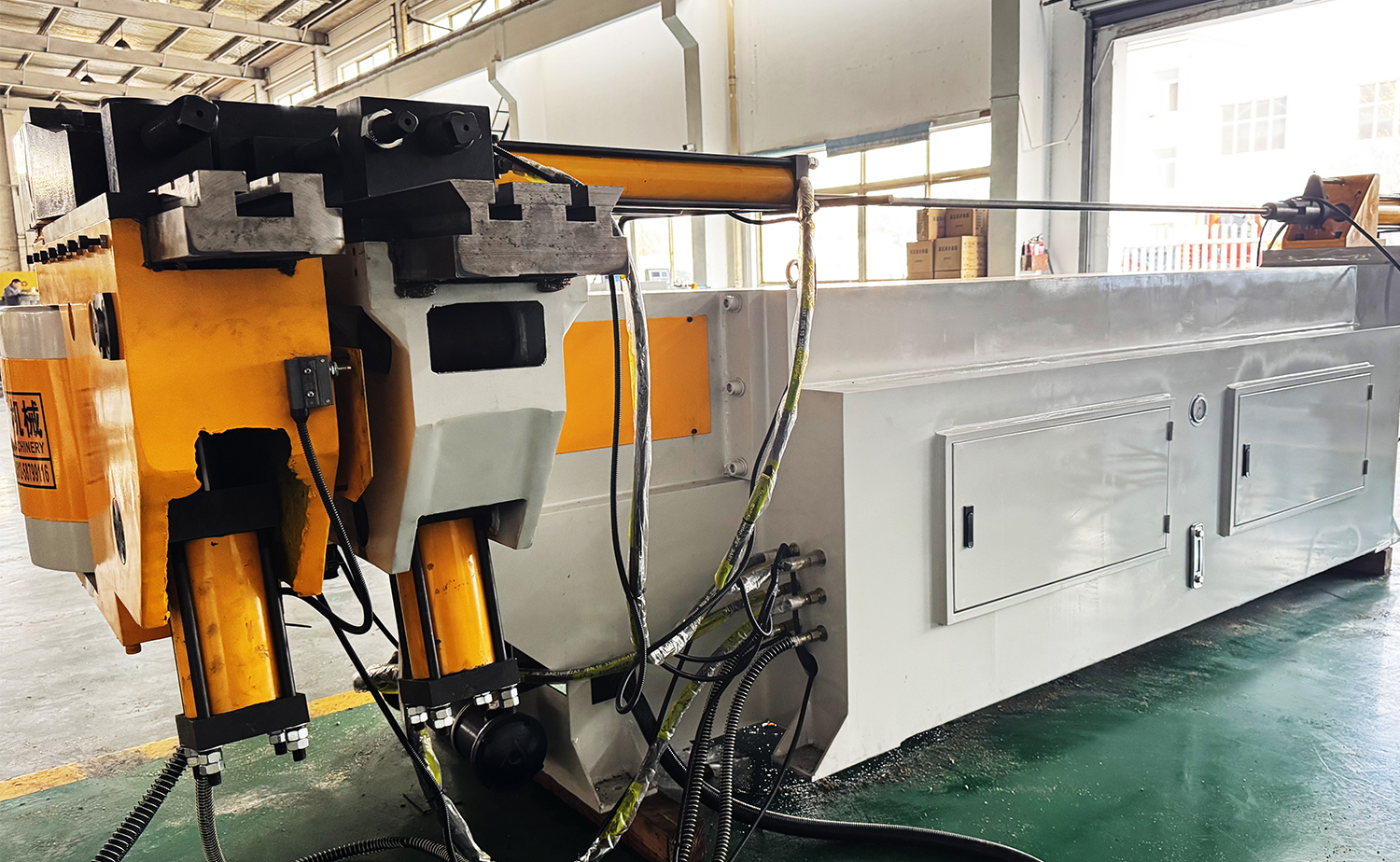

Bending Mechanism

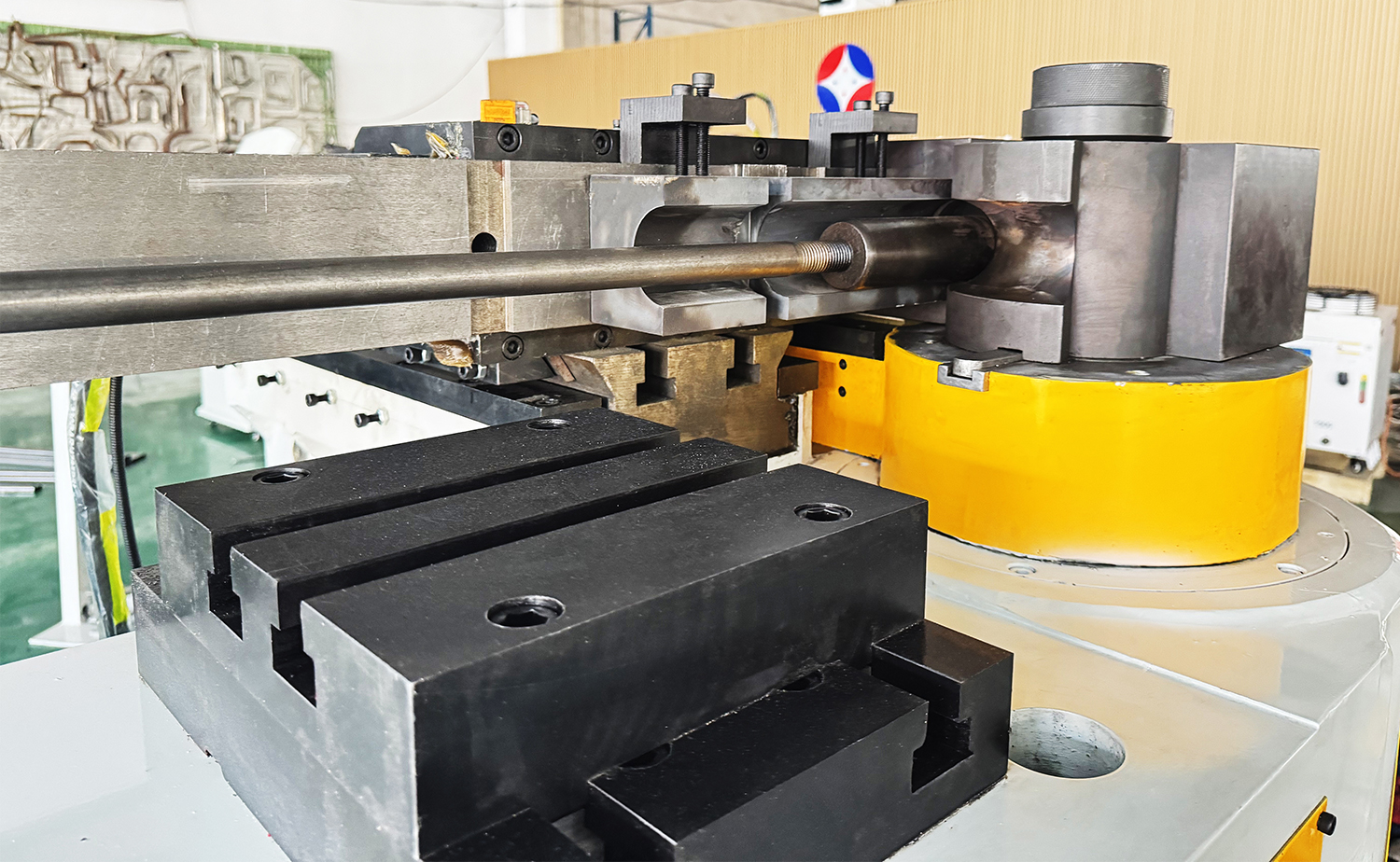

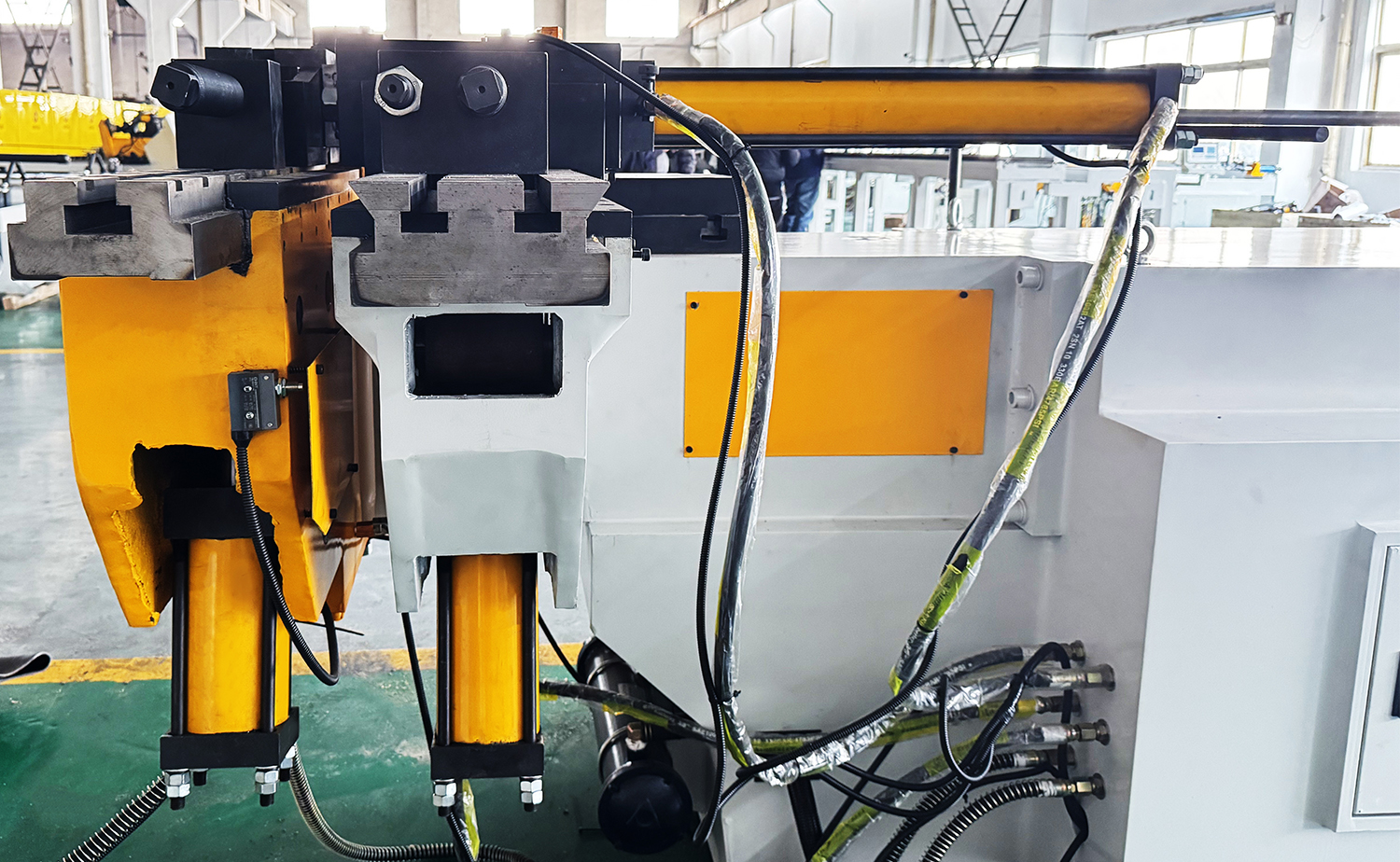

The direct-acting hydraulic pressure die with an adjustable speed valve ensures smooth operation. The machine can store up to 16 programs, with each capable of 16 bends, and includes programmable spring-back compensation for precise results.
Feeding and Rotation
The bending axis is cylinder-driven, while feeding and rotation are manual, providing easy control and customization for various tasks.
Material Handling
Repeatable, high-quality bends can be achieved on steel, stainless steel, aluminum, titanium, and brass. The foot pedal allows for quick initiation of bending cycles.
Accessories and Power

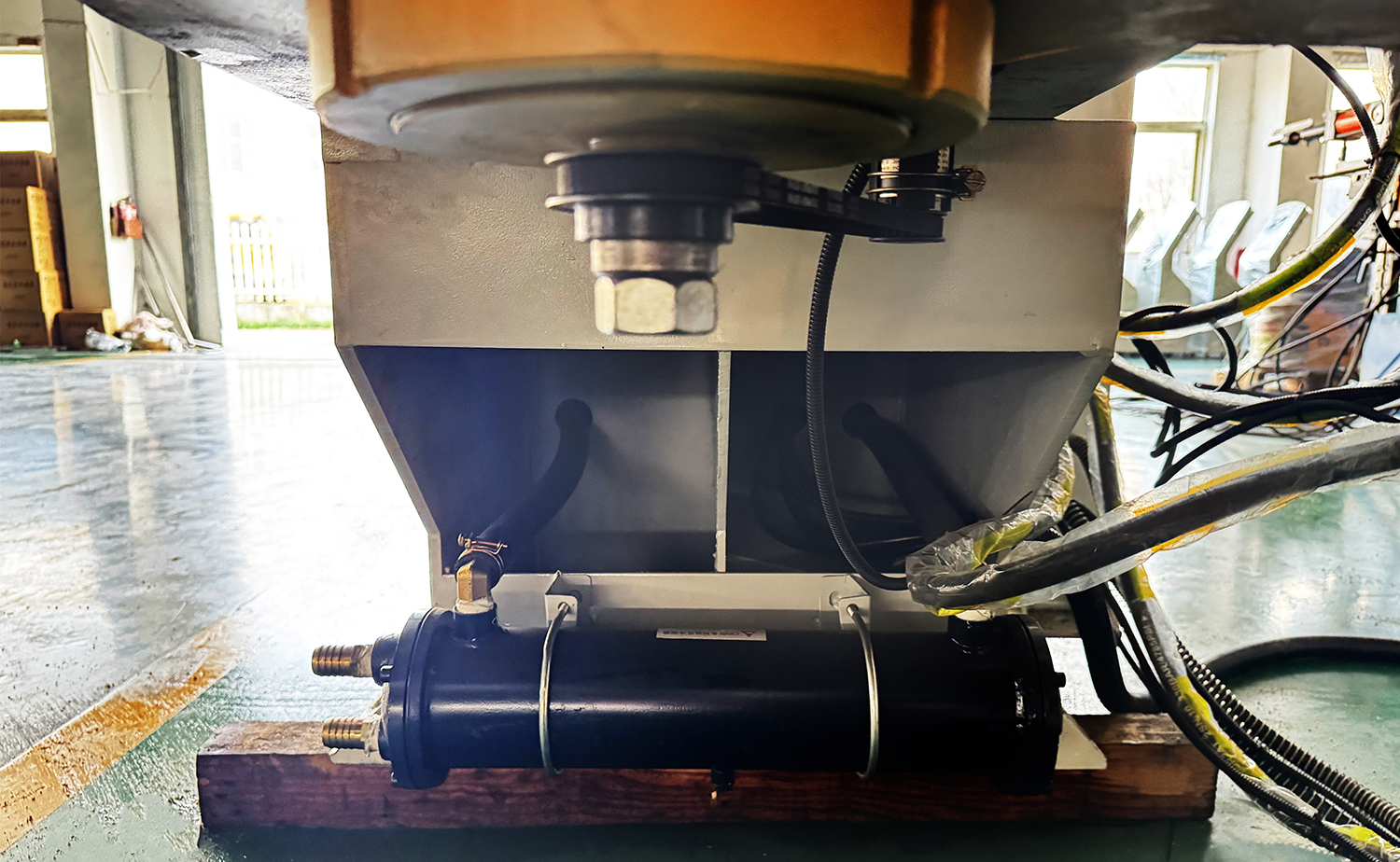

Includes water cooling, draw bending tooling, a wiper die bracket, a mandrel rod, and a toolbox with adjusted tools. Electric configurations available in 3-phase 220V, 380V, or 415V.
Parameter table
Main Technical Parameter
| Model | SB-75NC | SB-89NC | SB-100NC | SB-115NC | SB-133NC | SB-168NC |
| Max Pipe O.D. | 75×4.0 mm | 89×6.0 mm | 100×6.0 mm | 115×8.0 mm | 133×10 mm | 168×14 mm |
| Stainless Round Tube | 65×2.0 mm | 75×2.0 mm | 85×3.0 mm | 100×3.0 mm | 125×3.5 mm | 145×6.0 mm |
| Mild Steel Square Tube | 60×3.0 mm | 75×3.0 mm | 75×4.0 mm | 85×4.0 mm | 100×4.0 mm | 120×6.0 mm |
| Max. Travel of Manual | 3500 mm | 4000 mm | 4000 mm | 4200 mm | 5600 mm | 5700 mm |
| Max. Bending Radius | 350 mm | 400 mm | 420 mm | 450 mm | 500 mm | 800 mm |
| Max. Bending Angle | 190° | 190° | 190° | 190° | 190° | 190° |
| Bending Pipe Numbers | 16 pcs | 16 pcs | 16 pcs | 16 pcs | 16 pcs | 16 pcs |
| Max. Pressure | 14 MPa | 14 MPa | 16 MPa | 16 MPa | 16 MPa | 18 MPa |
| Motor Power | 7.5 kW | 11 kW | 15 kW | 15 kW | 22 kW | 33 kW |
| Demension | 4600×1300×1300 mm | 5200×1300×1400 mm | 5300×1400×1450 mm | 5700×1800×1450 mm | 7500×1900×1450 mm | 8500×2200×1800 mm |
| Weight | 2800 kg | 3800 kg | 4200 kg | 5800 kg | 7200 kg | 14000 kg |
