SB-20CNC Series Full Automatic Serpentine Bender
Back
Features
Basic Parameters
Video
Industry Applications
Contact Us
Features

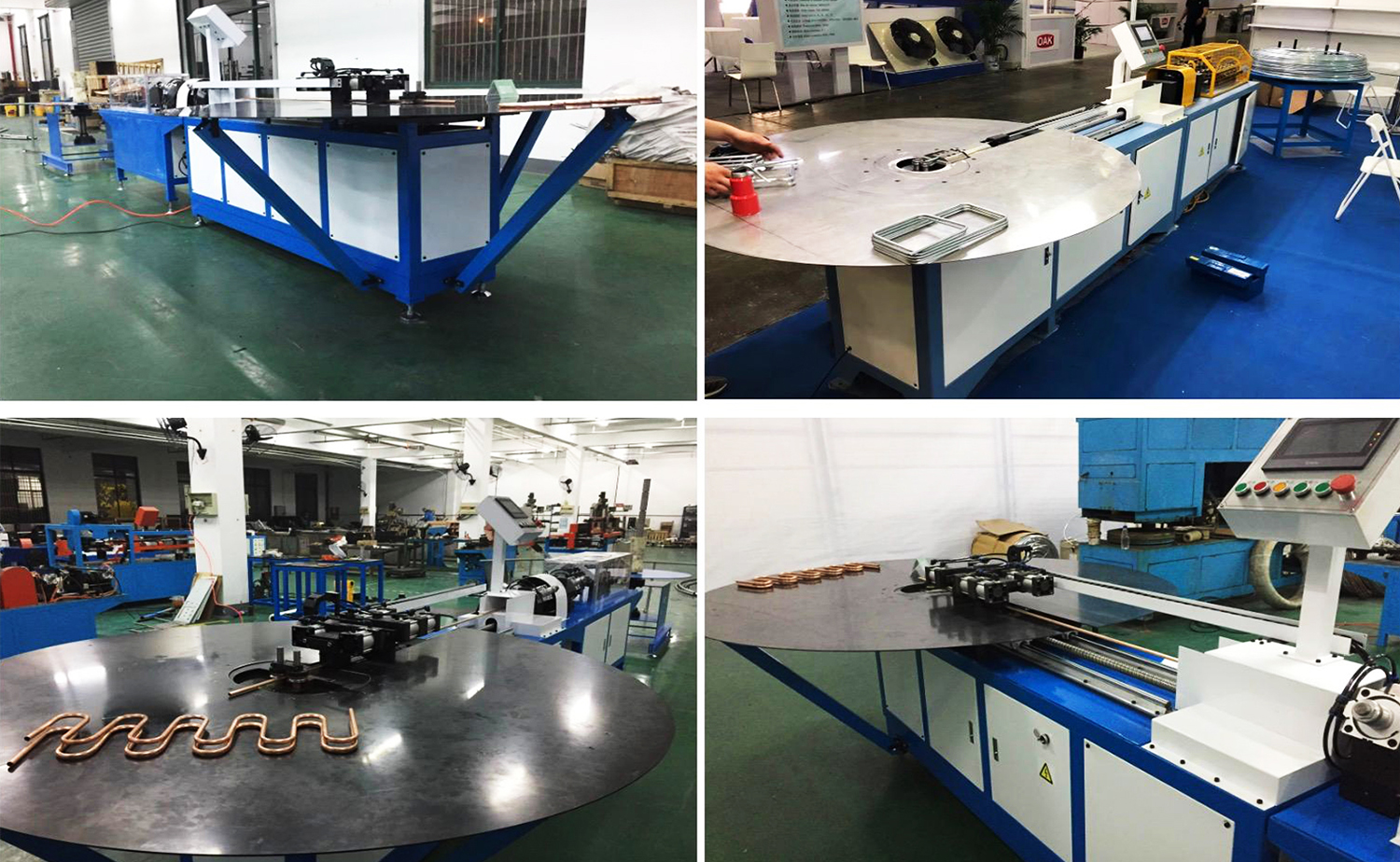

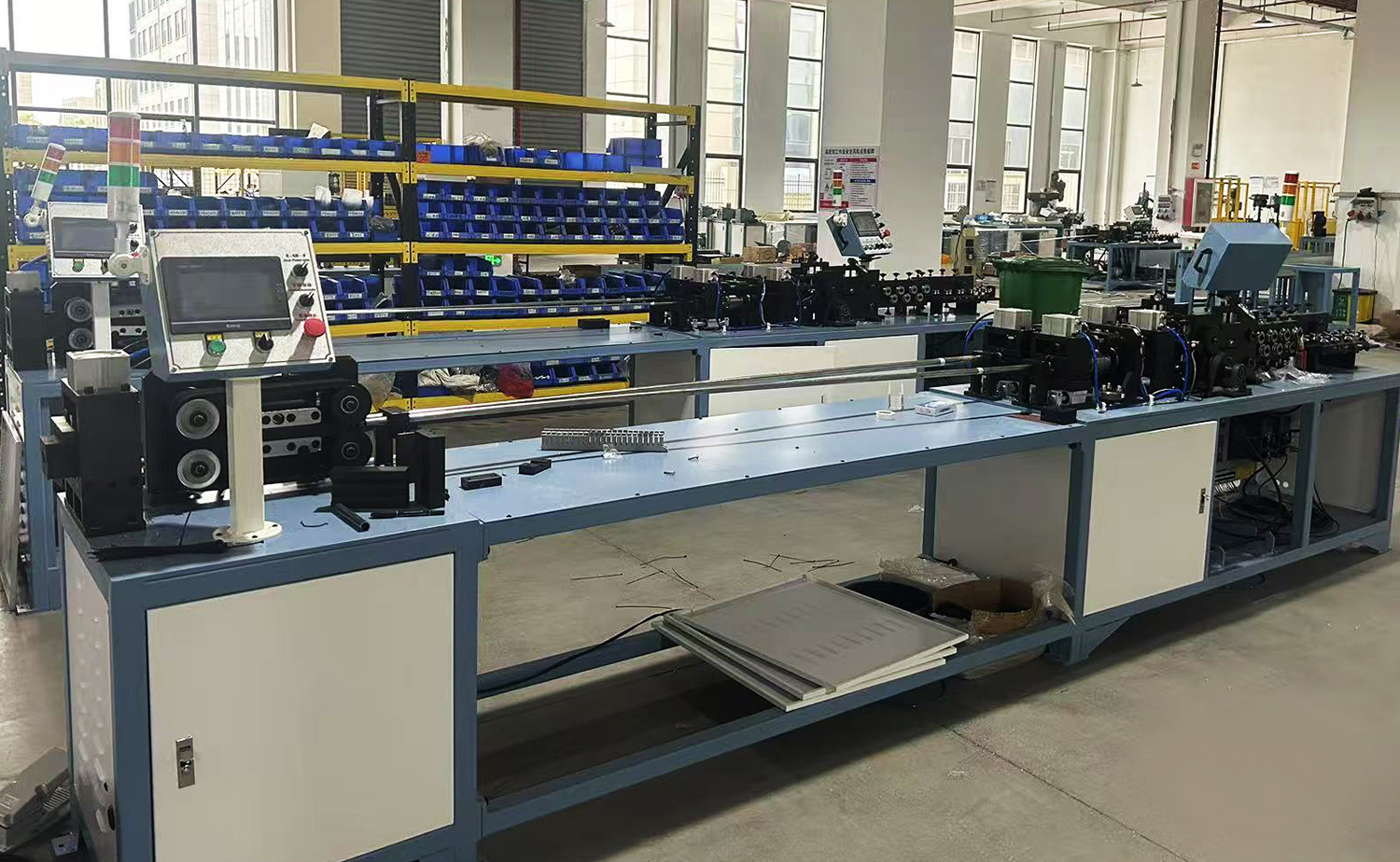

The fully automated serpentine bender integrates decoiling, straightening, cutting, and bending into a single operation, specifically designed for processing single aluminum, copper, or Bundy tubes. Compared to traditional manual methods, this automatic system significantly boosts efficiency and reduces labor costs.
A three-part clamping die minimizes tube distortion, ensuring smooth and accurate cutting edges. High-precision concentricity is maintained, ensuring excellent welding quality in subsequent processes. The chipless cutting system uses 360° rotary cutting with two-point clamping, ensuring clean cuts without material loss.

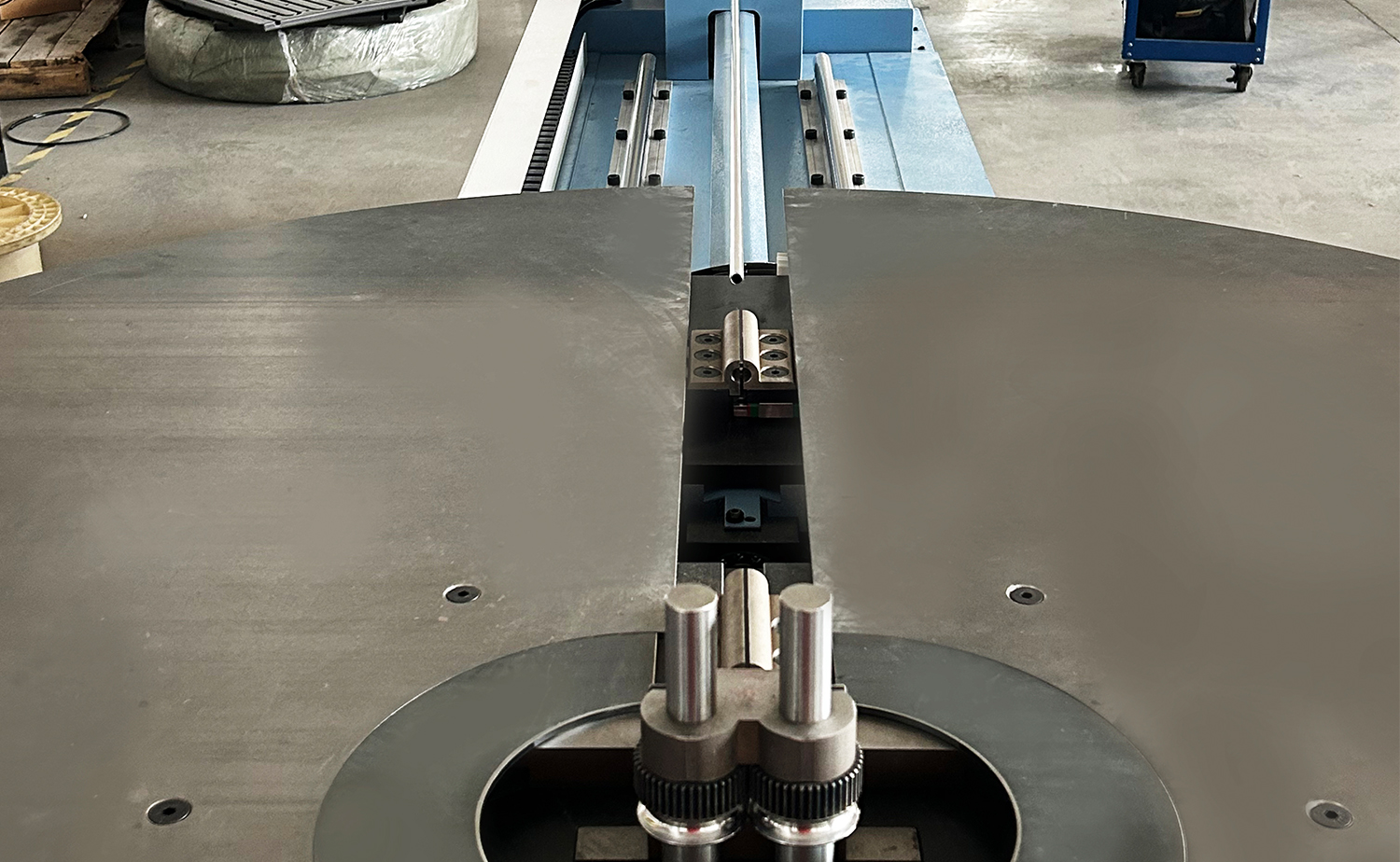

The machine features a patented servo-controlled bending system, designed to achieve precise bending angles and directions. Specially designed bending tools guarantee consistent bending radii with minimal deformation, resulting in high-quality, visually appealing bends.
Parameter table
Main Technical Parameter
| Parameter | Data |
| Tube Material | Copper tube / Aluminum tube / Bundy tube |
| Air Pressure | 0.5-0.6 MPa |
| Hydraulic Pressure | 5-7 MPa |
| Tube Diameter | Φ3-20 mm (change mold) |
| Tube Wall Thickness | 0.3-1.5 mm |
| Bending Capacity | Single tube |
| Bending Angle | 1~210 degree |
| Bending Radius | R11~R50 (change mold) |
| Bending Times | Up to 110 times/cycle |
| Feeding Length | 10-700 mm/time, can feed multiple times |
| Table Size | Φ1-5 m (can be customized) |
| Control System | PLC control / Touch Screen |
| Motor Power | 9 kW |
| Electric System | 380V, 50Hz, 3 Phase (Customized) |
| Dimension | 2350×780×1590 mm + 1570×530×1170 mm (Excluded Table) |

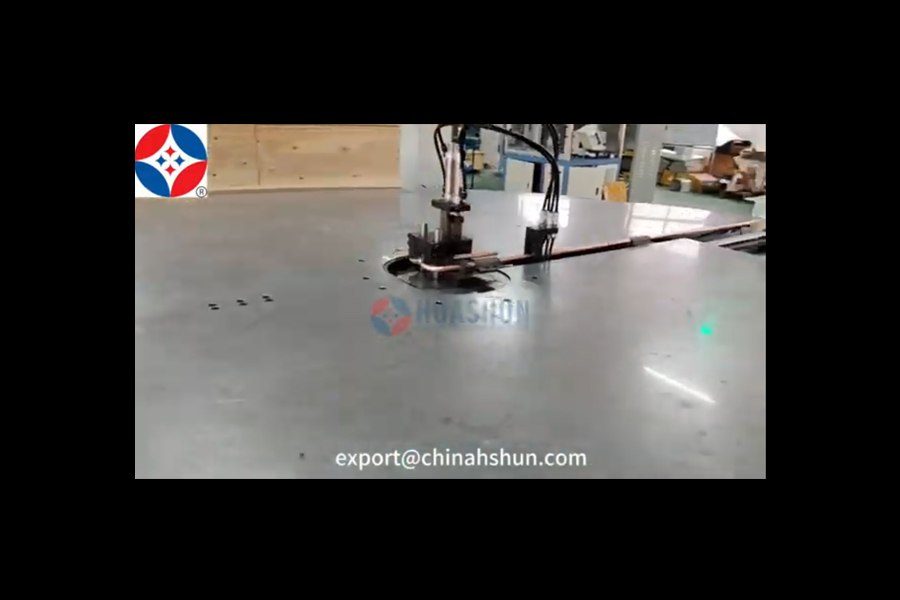

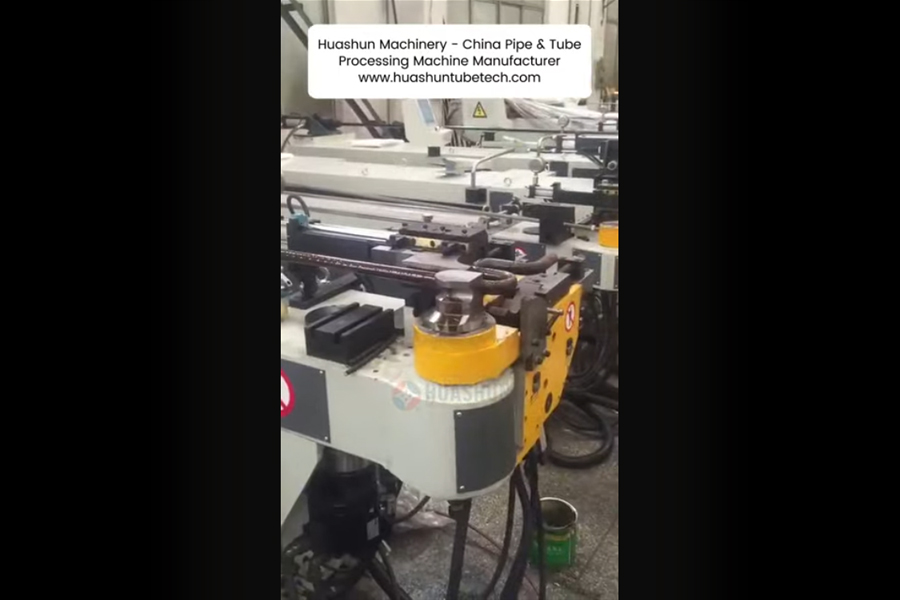

Video
