High Efficiency Automatic Tube Sealing Machine
Back
Features
Basic Parameters
Video
Industry Applications
Contact Us
Features

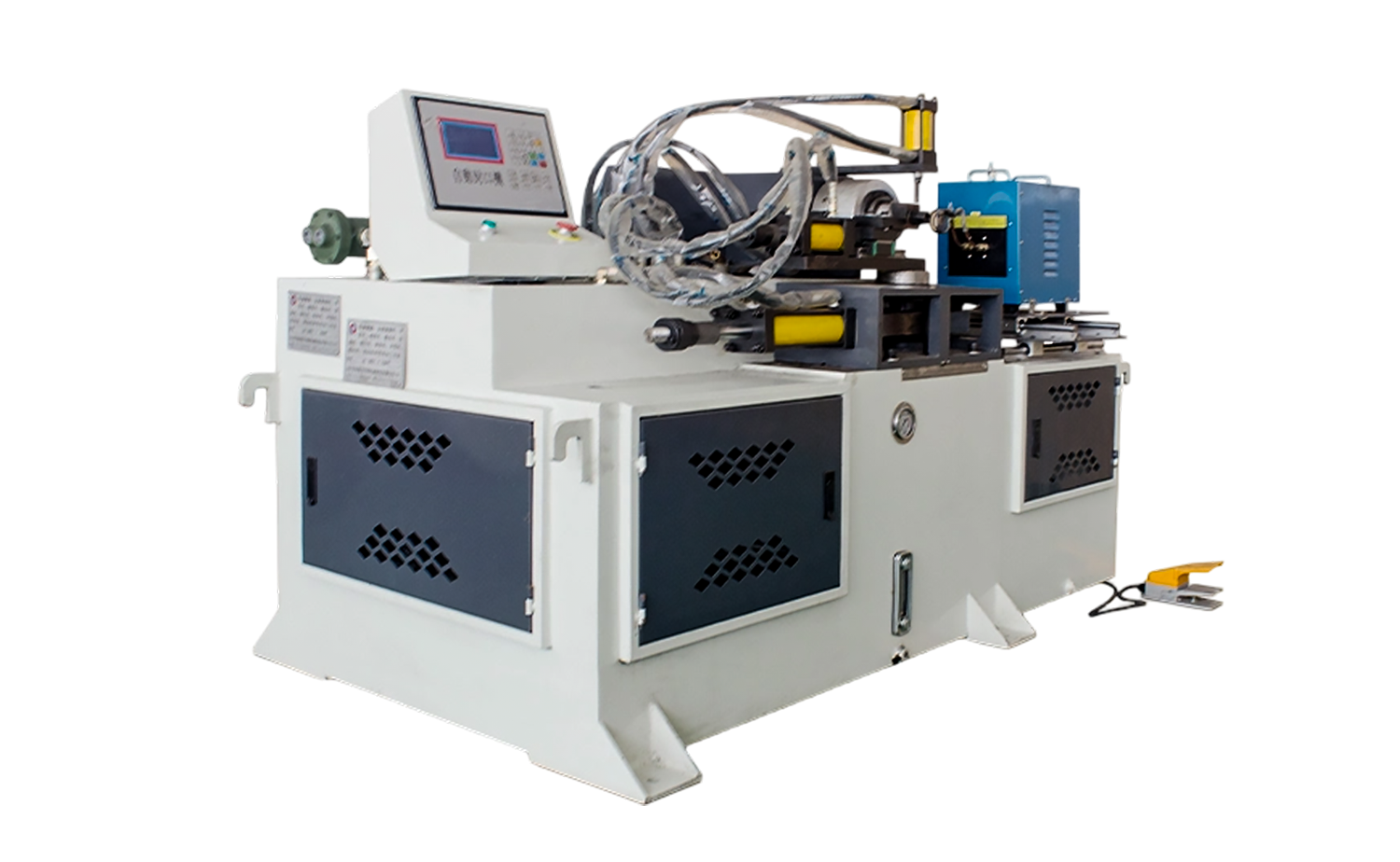

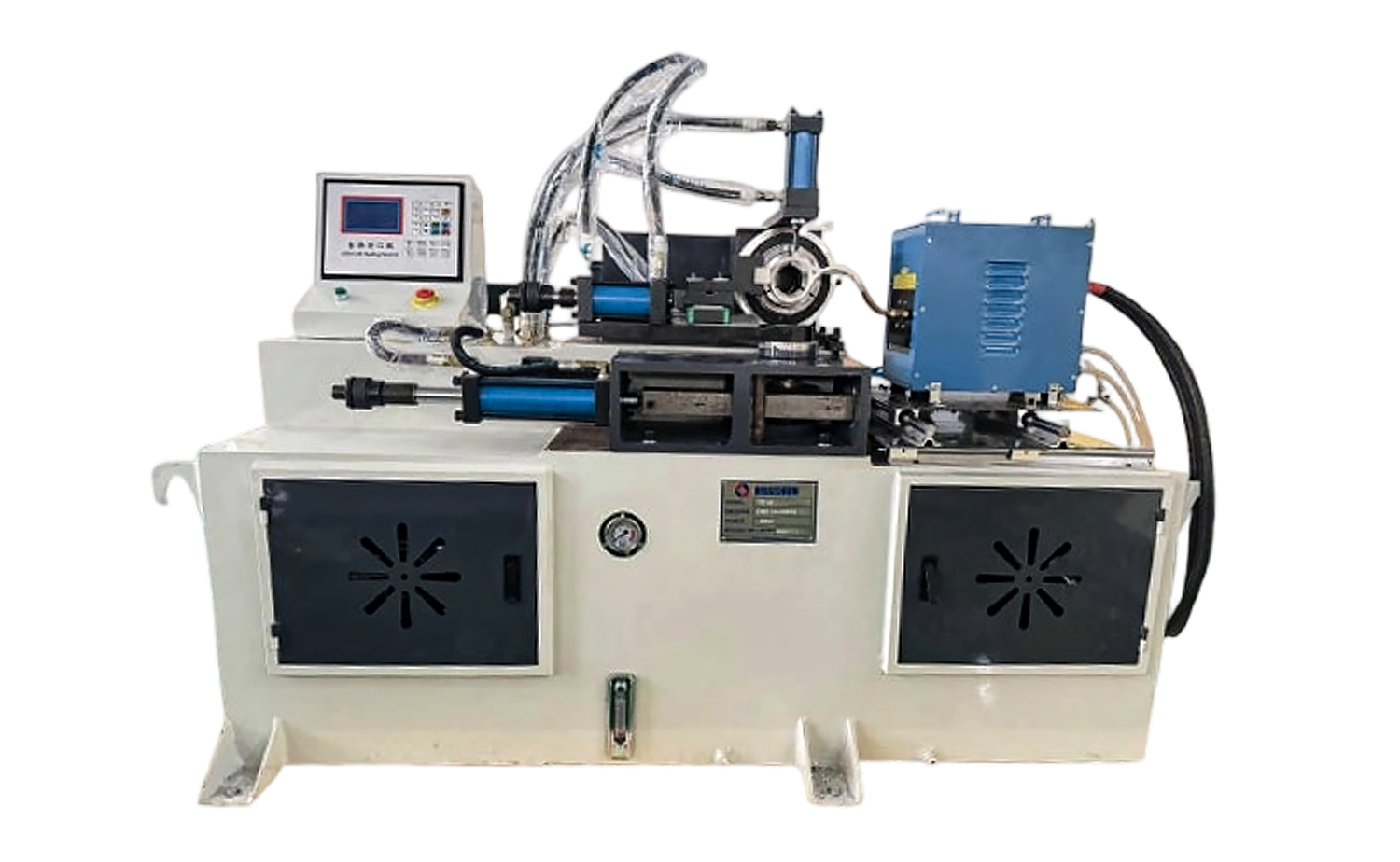

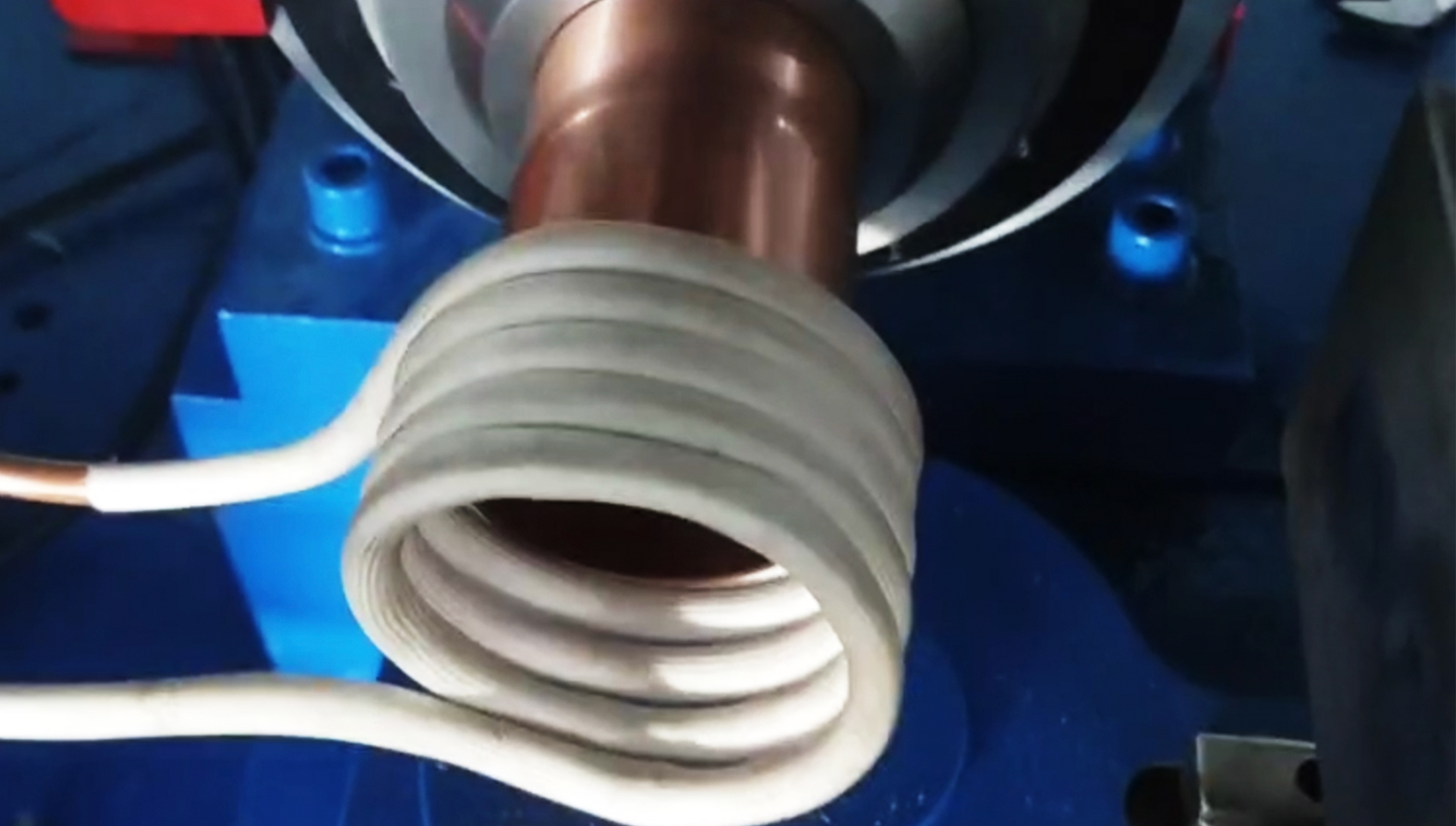

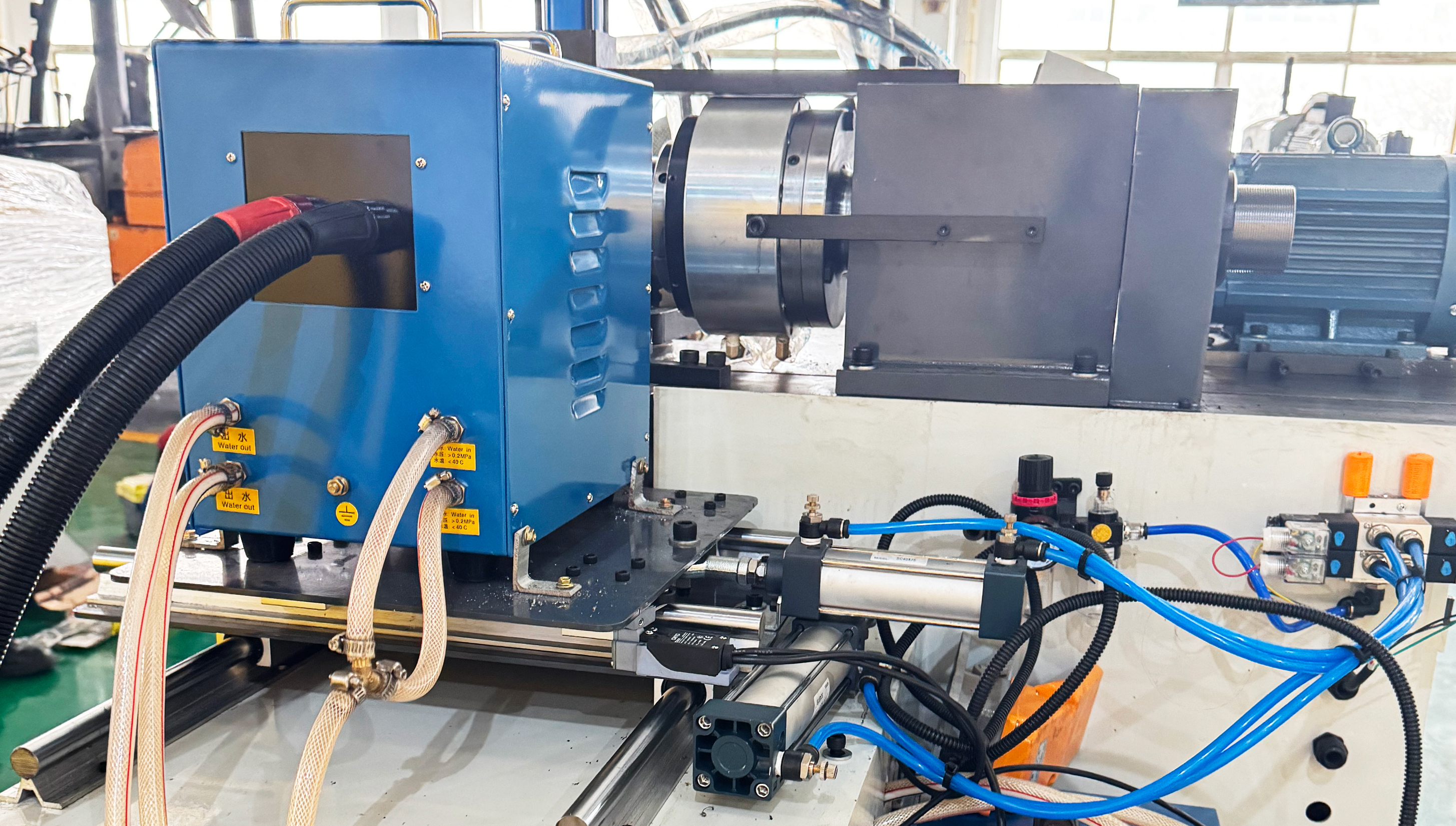

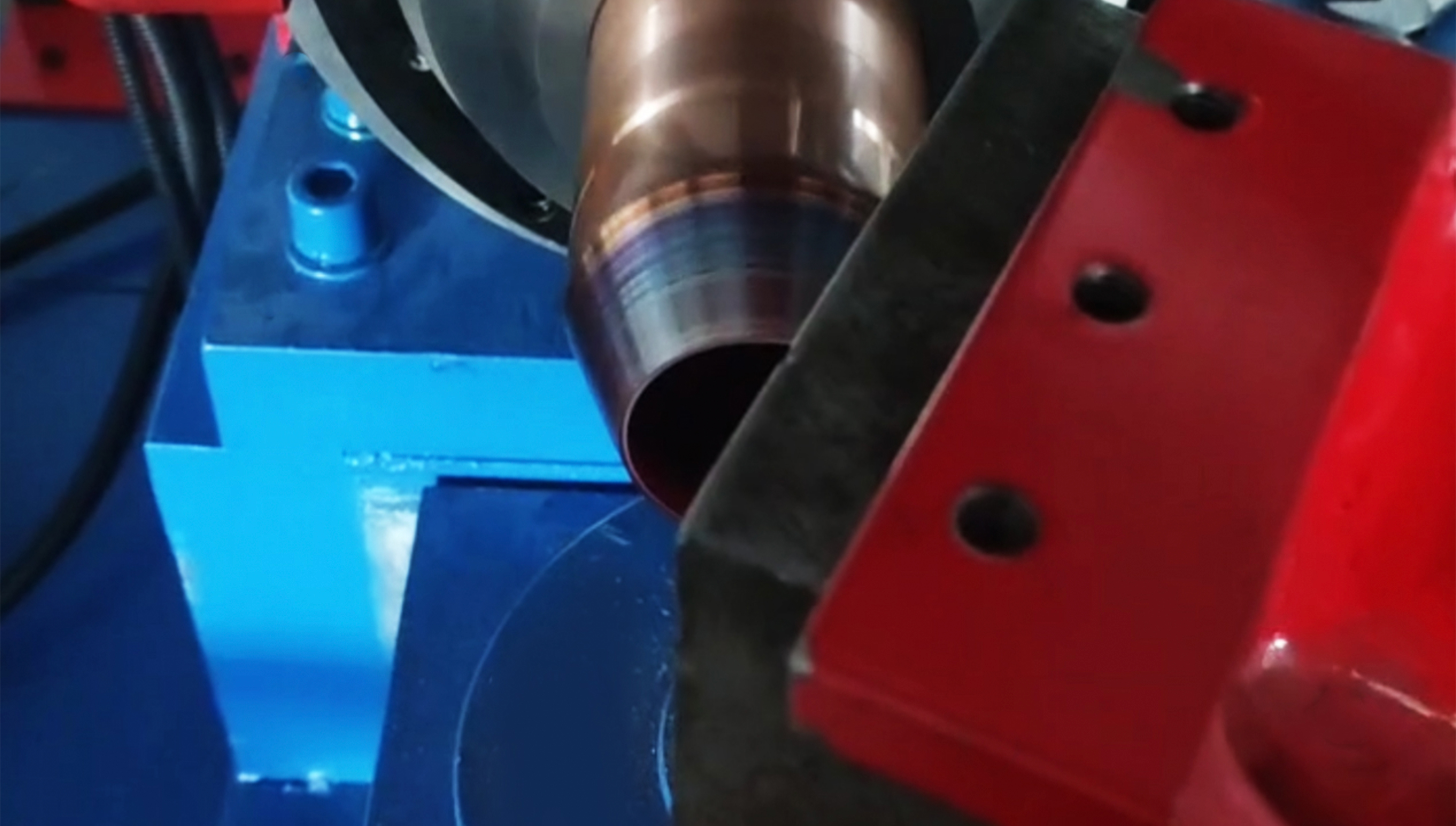

This machine is designed to close pipe ends through heating, and it is also capable of forming flat sides and pipe ends. It is a highly efficient, fully automated end-closing solution.

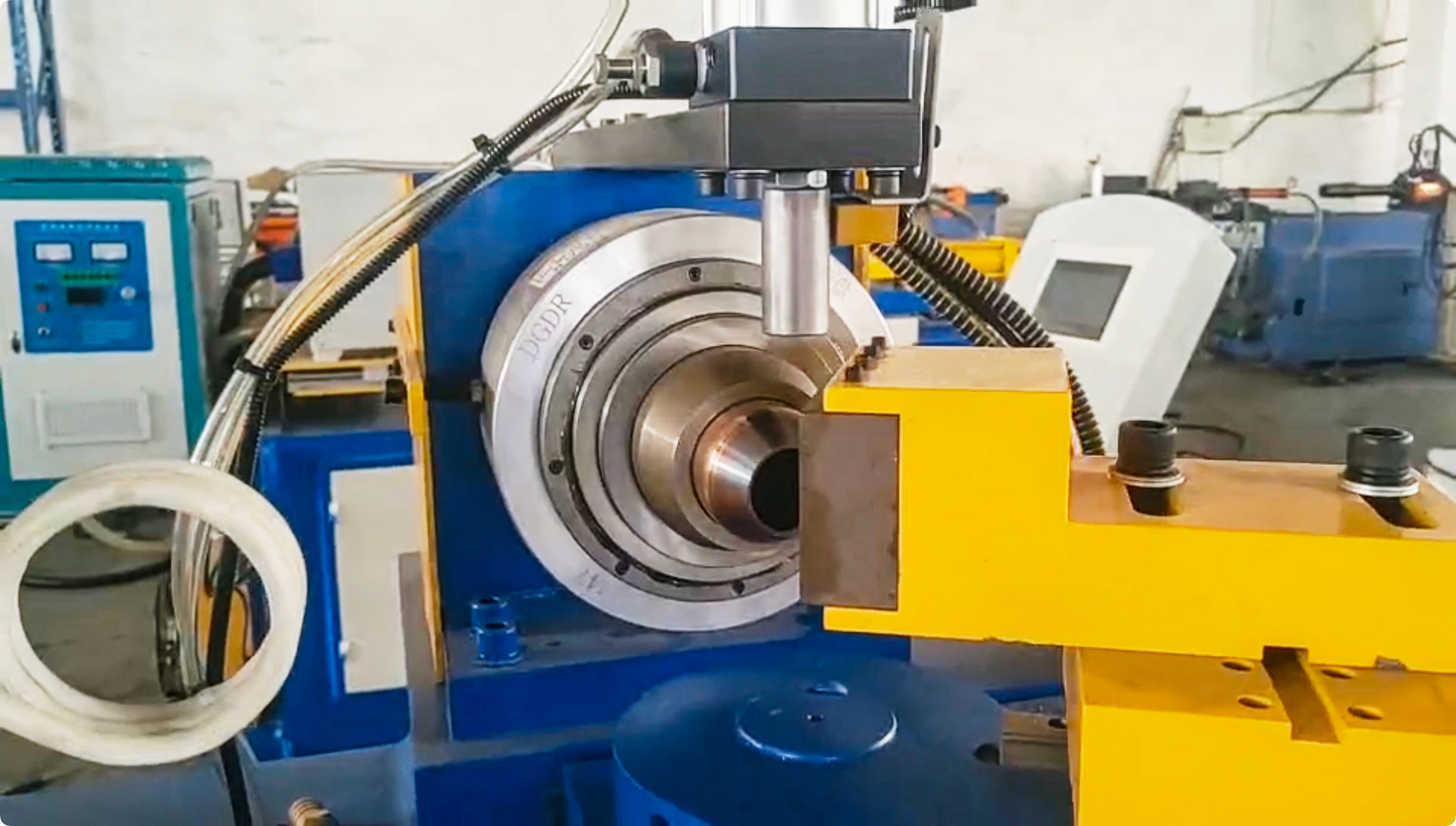

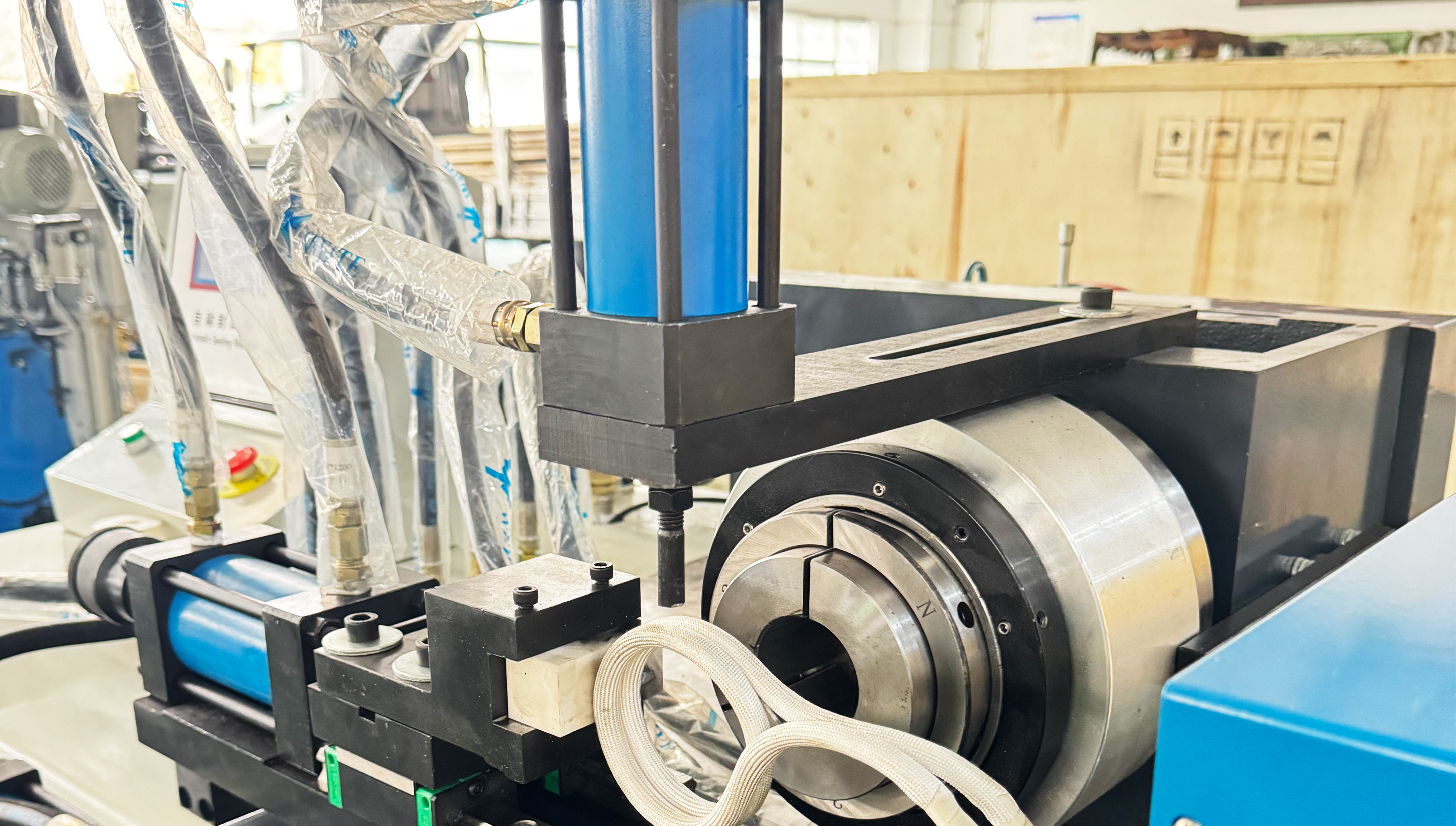

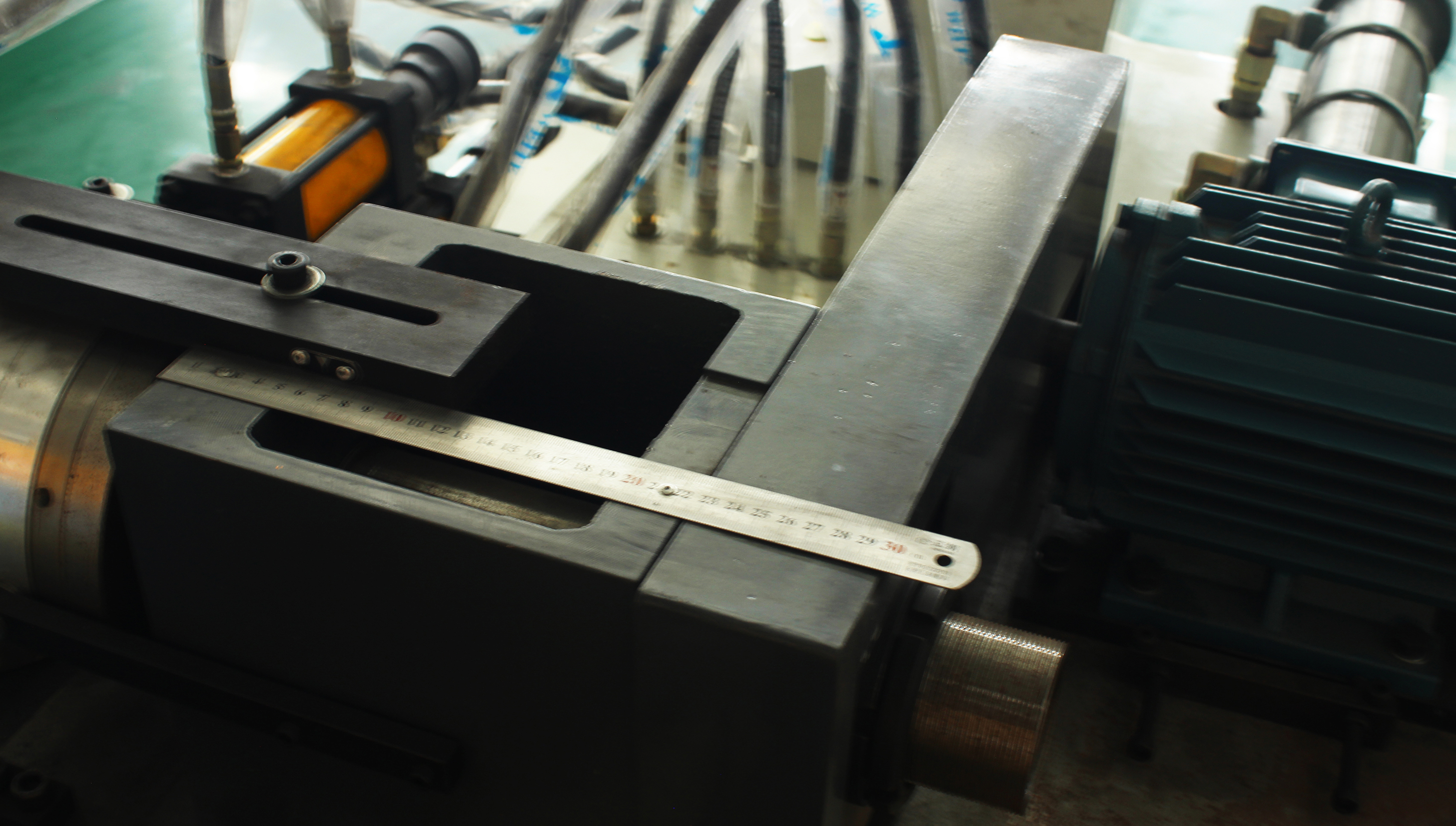

The tube clamping and end forming processes are driven hydraulically, ensuring reliable operation. It supports various seal shapes, including flat, round, solid, and hollow heads.

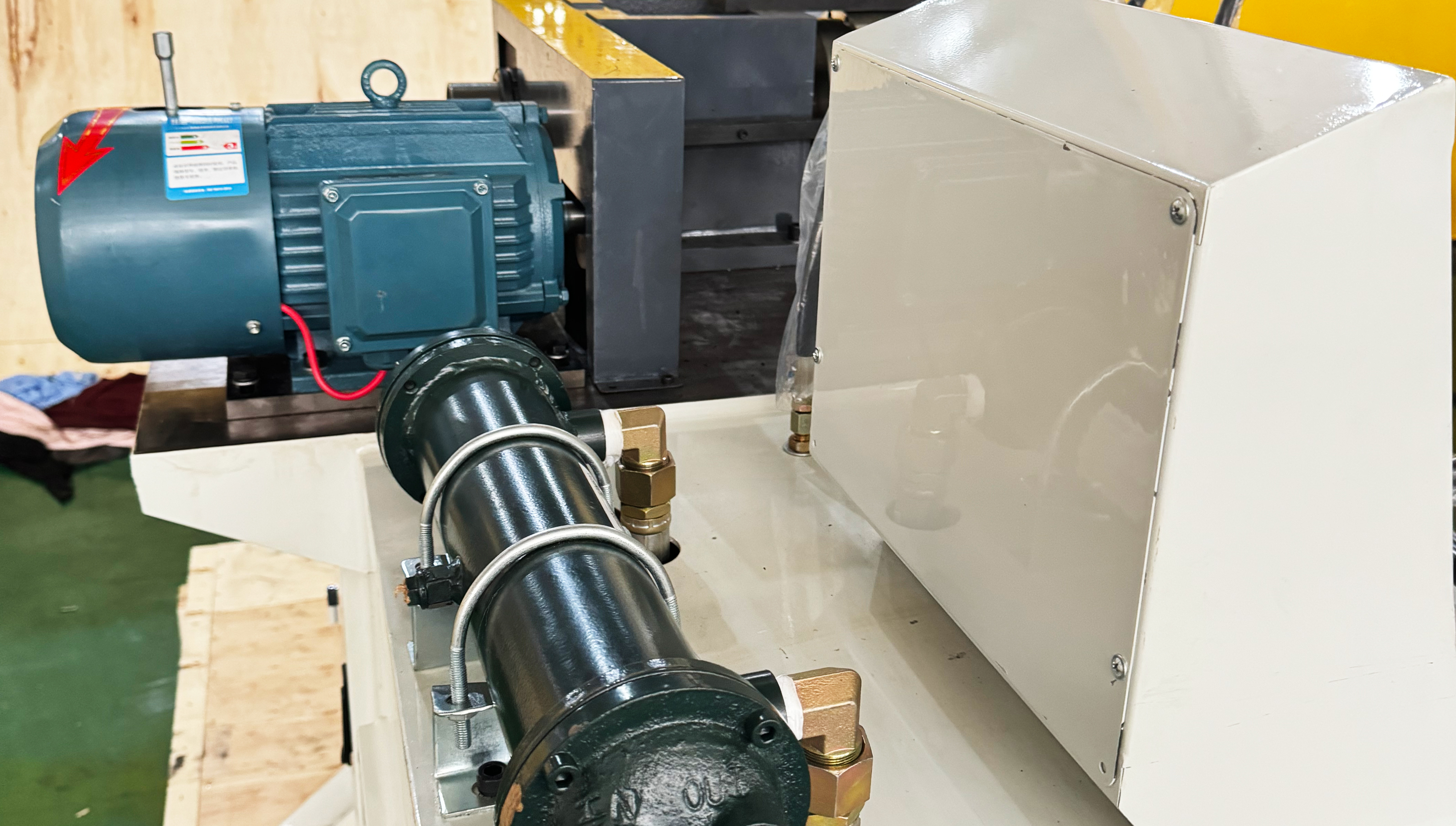

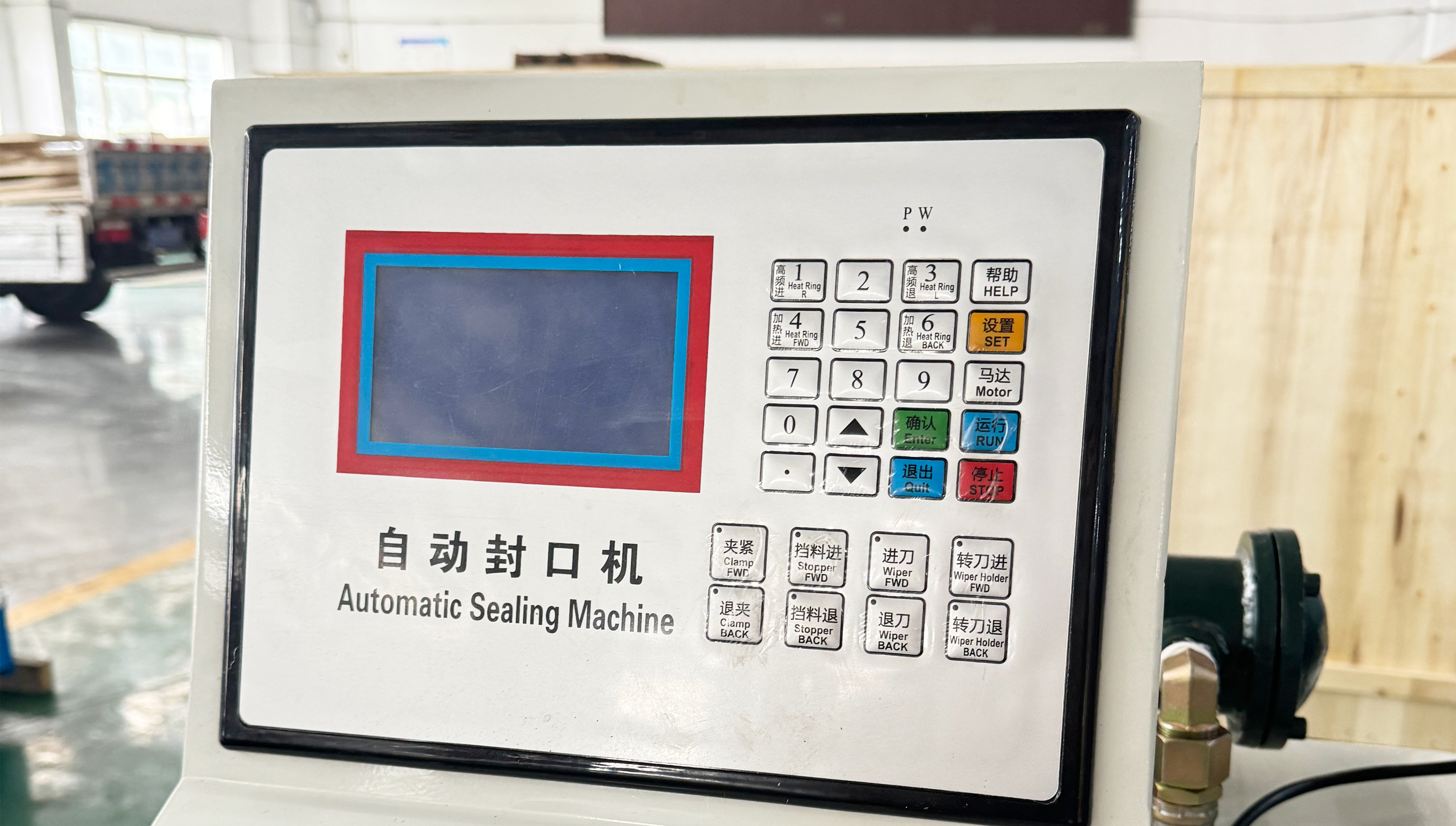

With a user-friendly interface, operators can easily switch between automatic and manual modes for optimal control. The machine is built with high-quality mechanical components, ensuring stable, long-lasting performance.
The die change process is simple and efficient, reducing downtime. It is CE and ISO9001 certified for quality assurance.
Parameter table
Main Technical Parameter
| Name | TS-40 | TS-60 | TS-80 |
| Processing Tube OD (mm) | Φ10-40 | Φ10-60 | Φ10-80 |
| Processing Tube (thickness) (mm) | ＜2 | ＜5 | ＜5 |
| Processing Tube Length (mm) | 150-1000 | 150-1000 | 150-1000 |
| Processing Time (pc) | 10-40s | 10-40s | 10-40s |
| High Frequency Heater (kw) | 15 | 25 | 40 |

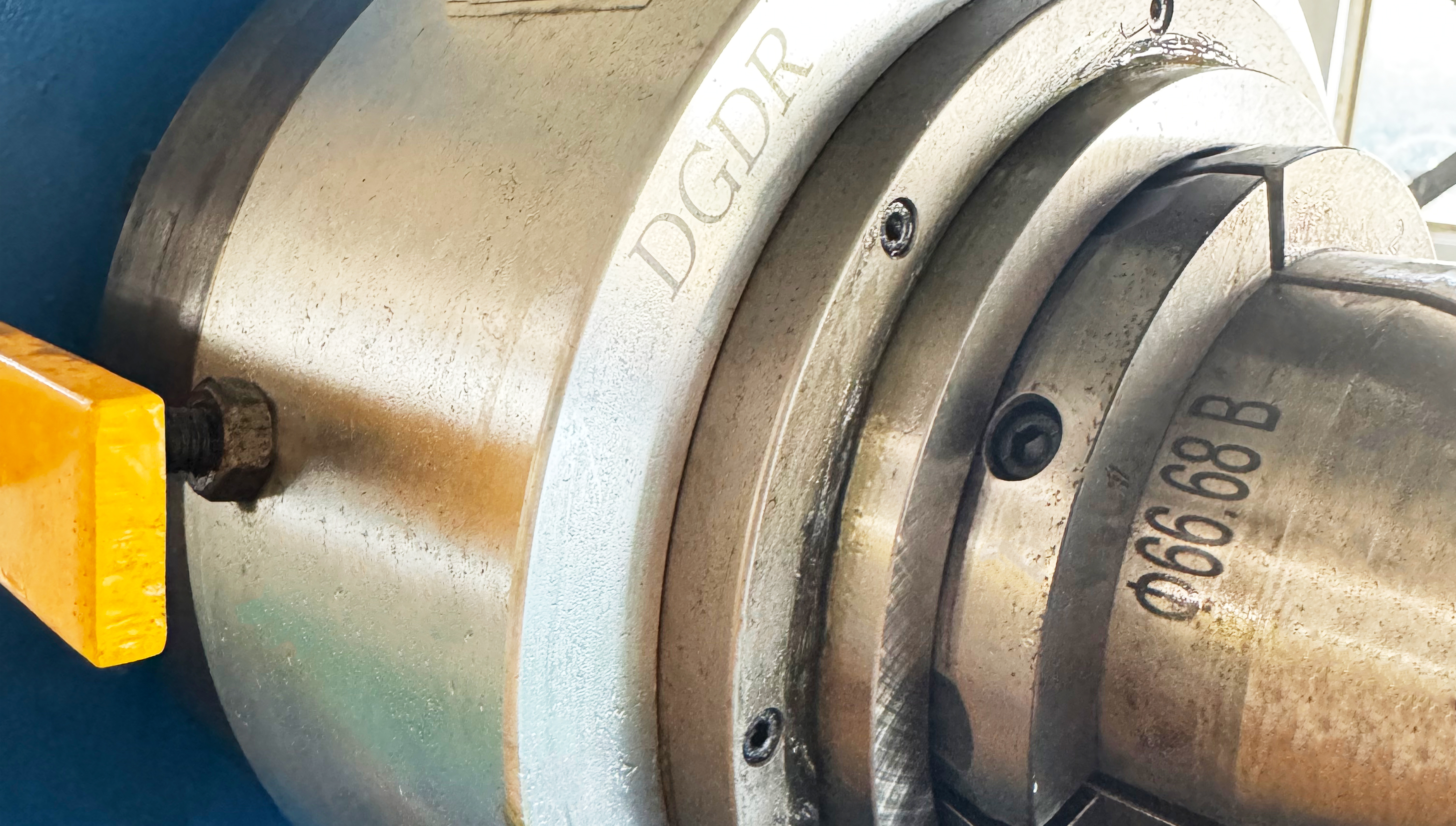

| Chunk (mm) | 40 | 60 | 90 |

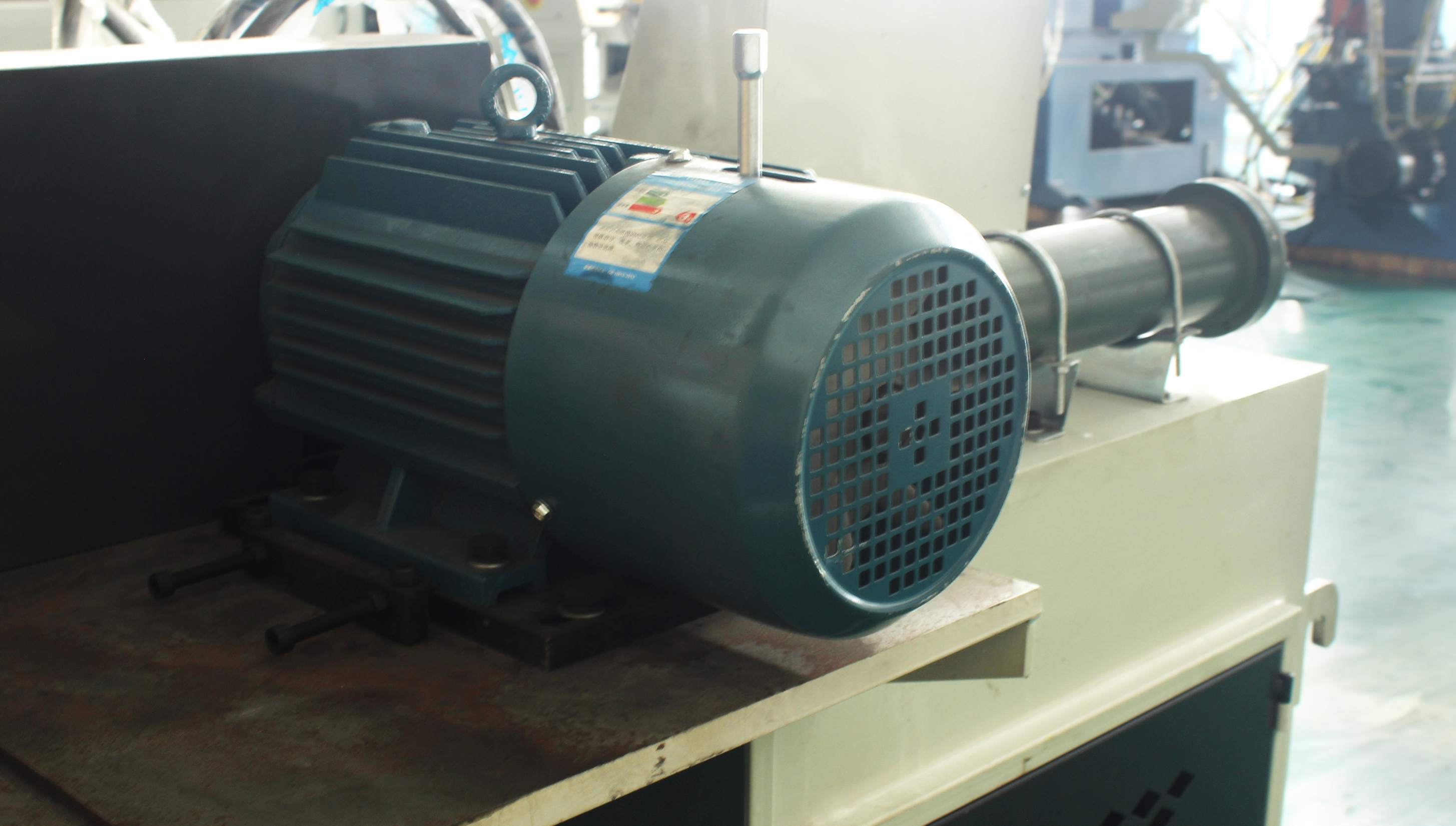

| Motor Power (kw) | 1.5+3 | 4×2 | 4×2 |
| Dimension of machine (mm) | 1900×900×1600 | 3000×1000×1600 | 3000×1000×1600 |
| Weight of the machine (kg) | 860 | 1100 | 1100 |

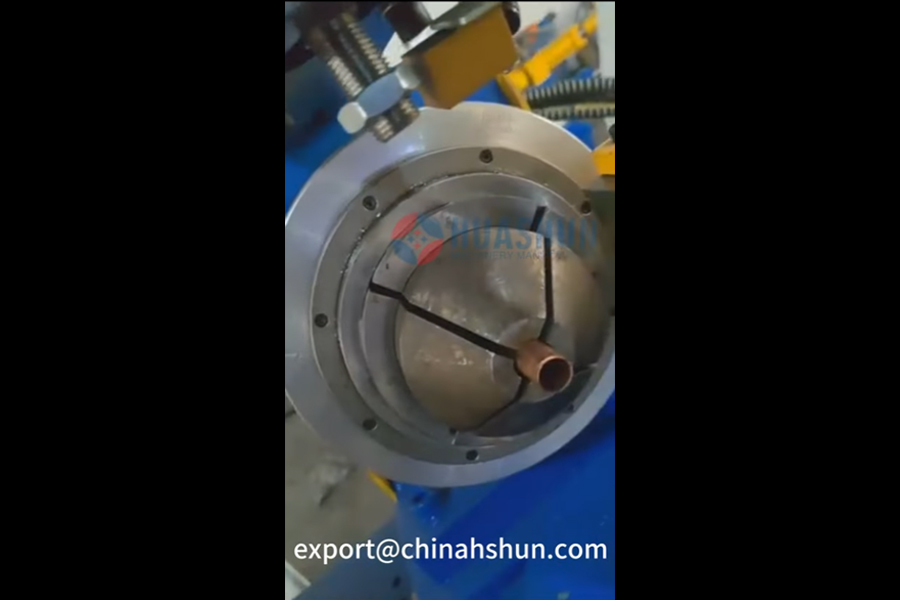

Video
