TM40 High Efficiency Automatic Single Head Tube End Forming Machine
Back
Features
Basic Parameters
Video
Industry Applications
Contact Us
Features
1.This is a highly efficient automatic machine designed for precision and ease of use in tube forming applications.

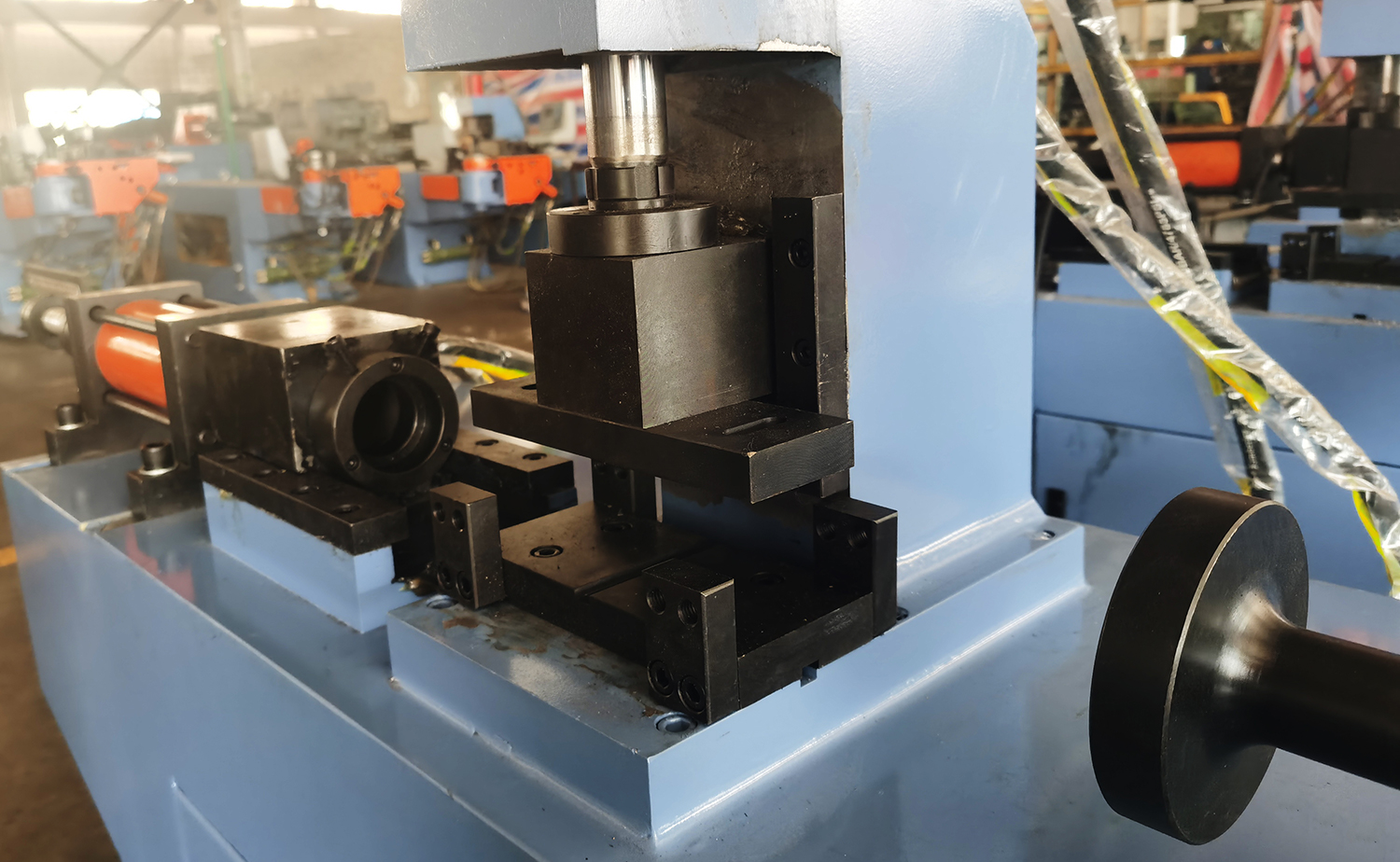

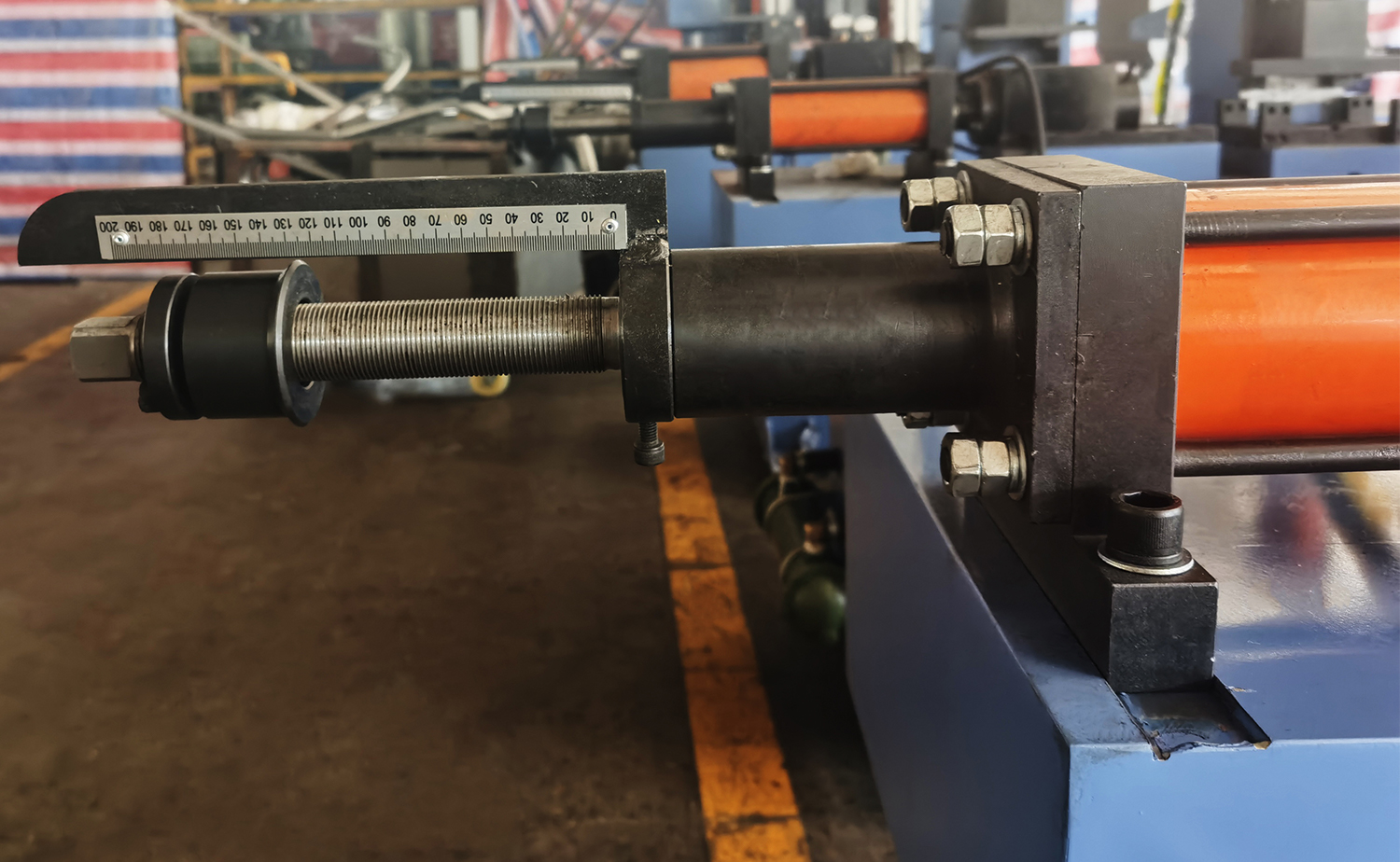

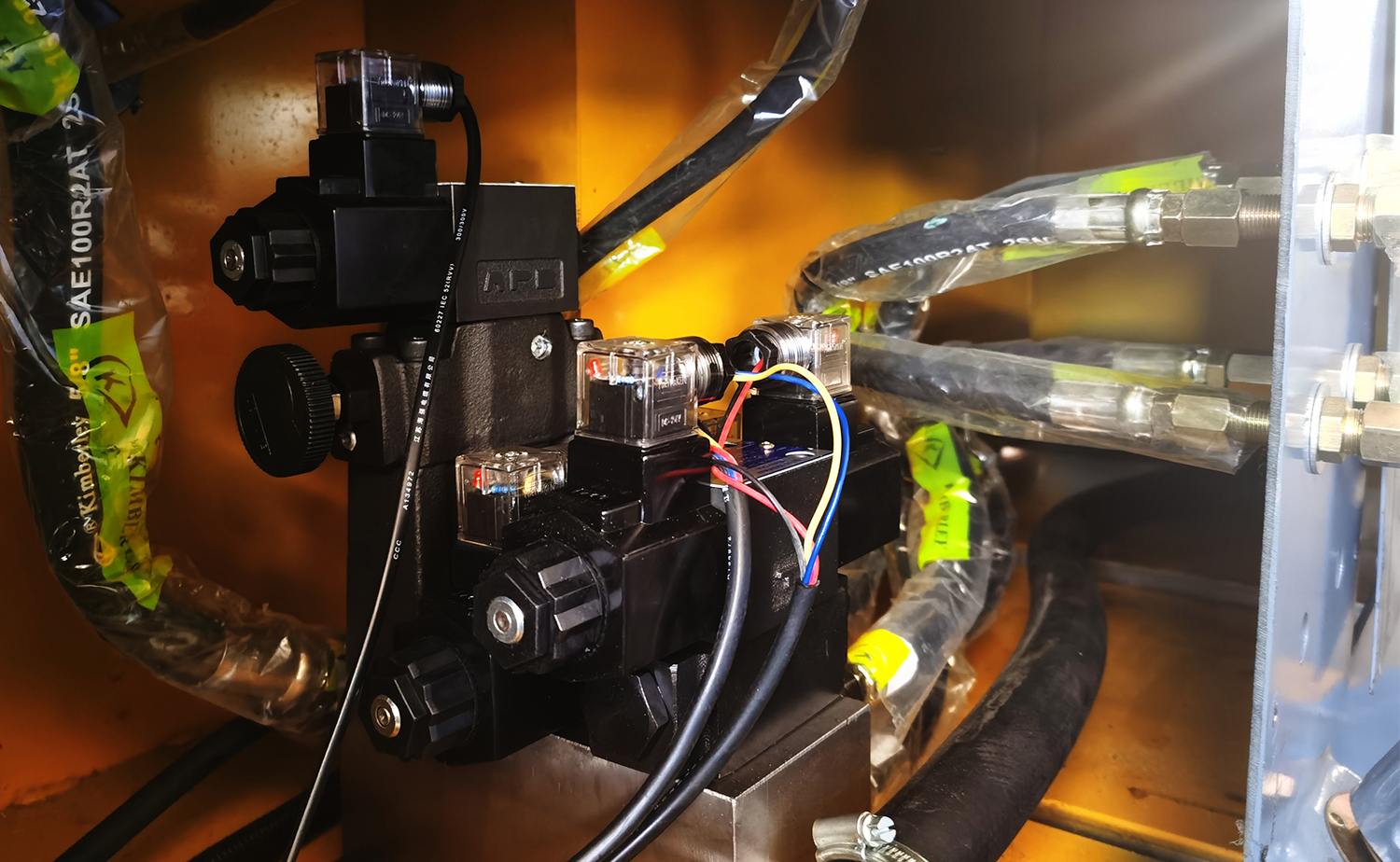

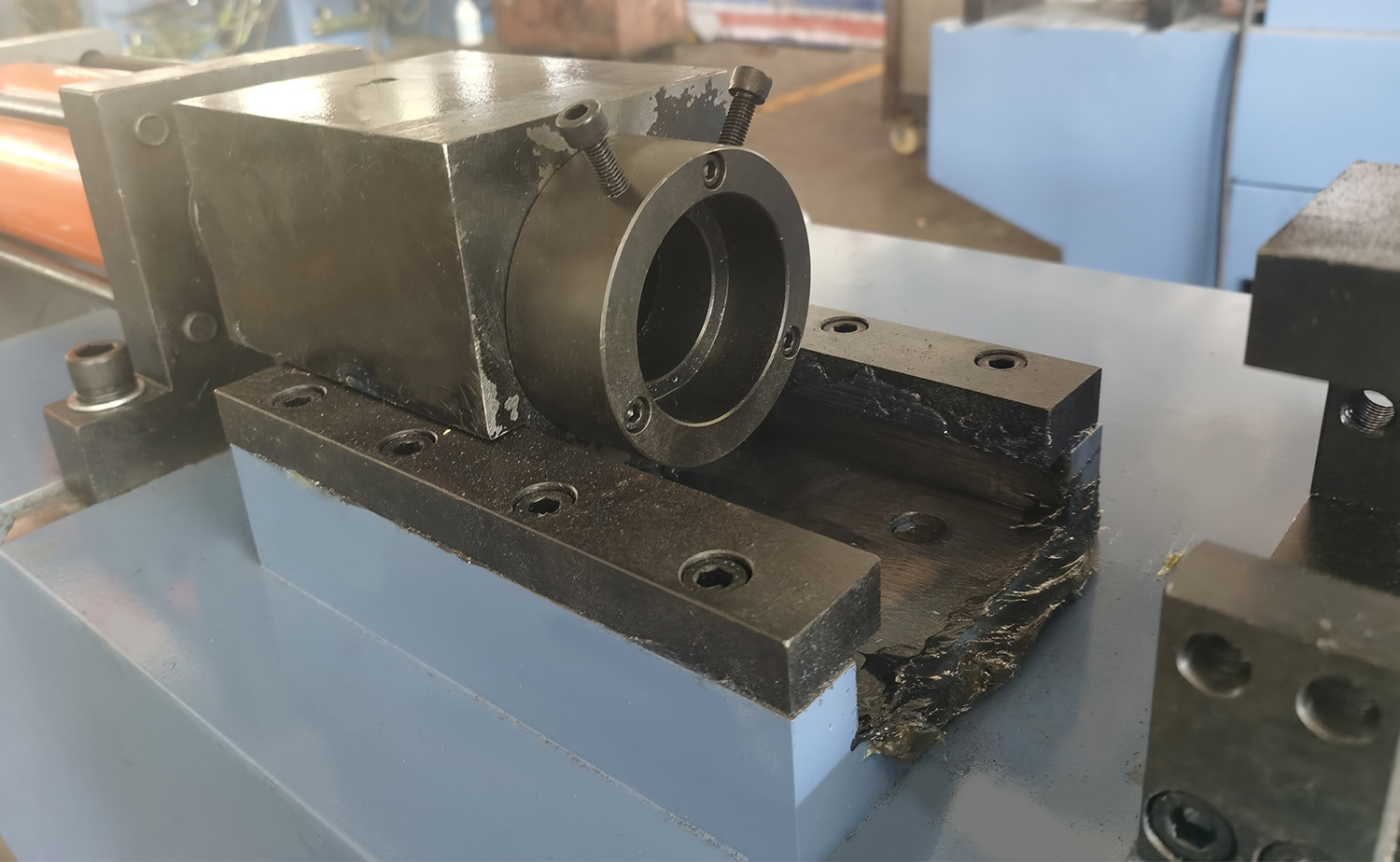

2.The tube clamping and end forming processes are powered by a robust hydraulic system, ensuring smooth and reliable operation.
3.An intuitive PLC touch screen interface allows for seamless switching between automatic and manual modes, offering enhanced user control.
4.The machine supports a variety of end forming shapes, including concave-convex sections, long, flat, square, enlargement, slanting, V-shaped, open slot, and more, providing versatile solutions for different production needs.
5.Built with high-quality mechanical components, the machine delivers consistent stability and performance, minimizing the risk of operational disruptions.
6.The die change process is straightforward and efficient, ensuring quick setup and minimal downtime during production.
7.Certified with CE and ISO9001, this machine meets international quality and safety standards, assuring reliability and compliance in all applications.
Parameter table
Main Technical Parameter
| Name | TM-40 | TM-40-2 （2 workstations) | TM-40-5 ( 5 workstations) |
| Max. End Forming Capacity | Φ40x2mm | Φ40x2mm | Φ40x2mm |
| Max. End Forming Length | 100mm | 100mm | 150mm |
| Reduction time | 100/3-4mm/s | 100/3-4mm/s | 100/3-4mm/s |
| Max. Hydraulic Pressure | 12Mpa | 12Mpa | 0.75Mpa |
| Motor Power | 4kw | 4kw | 4kw |
| Dimension of machine | 2400x650x1350mm | 2600x800x1350mm | 2200x1350x1450mm |
| Weight of the machine | 1100kg | 1200kg | 1600kg |

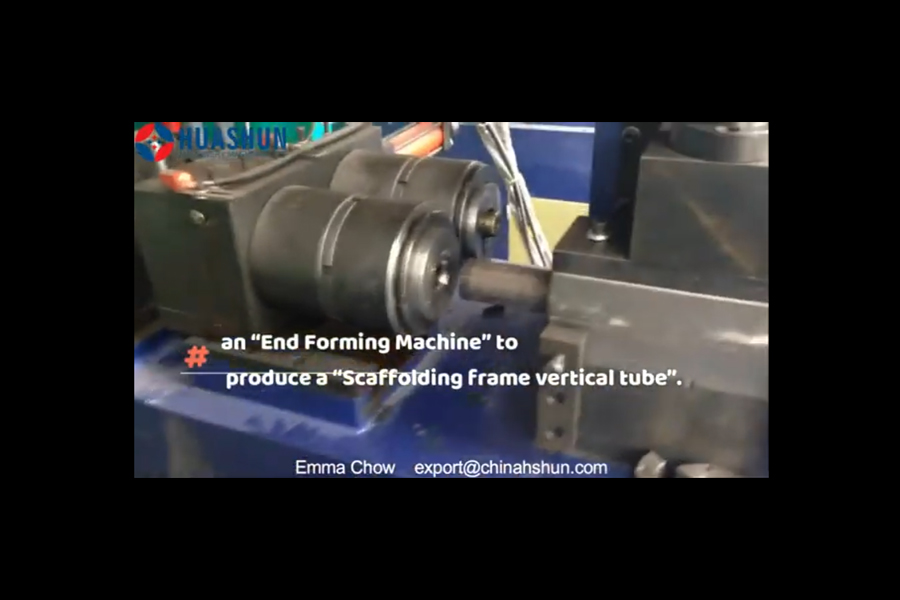

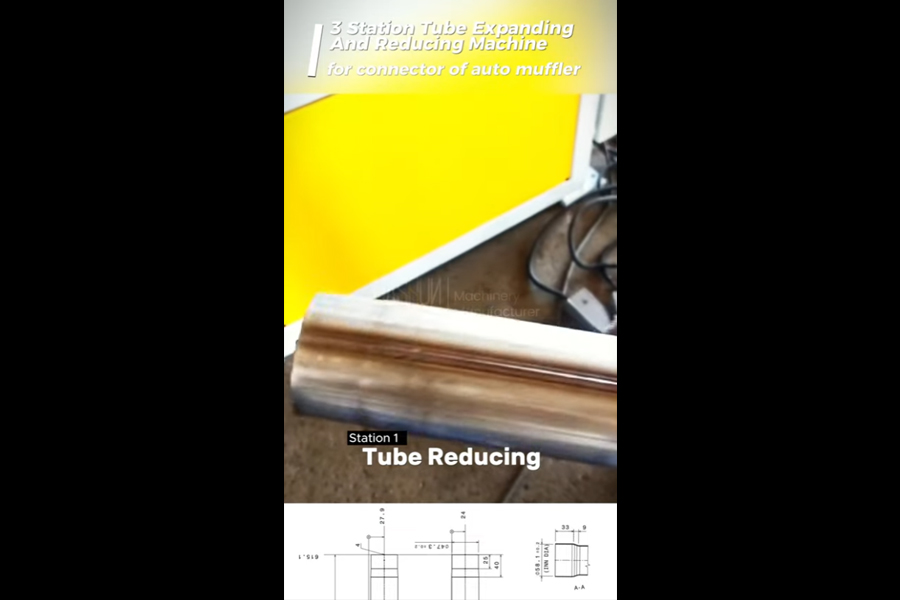

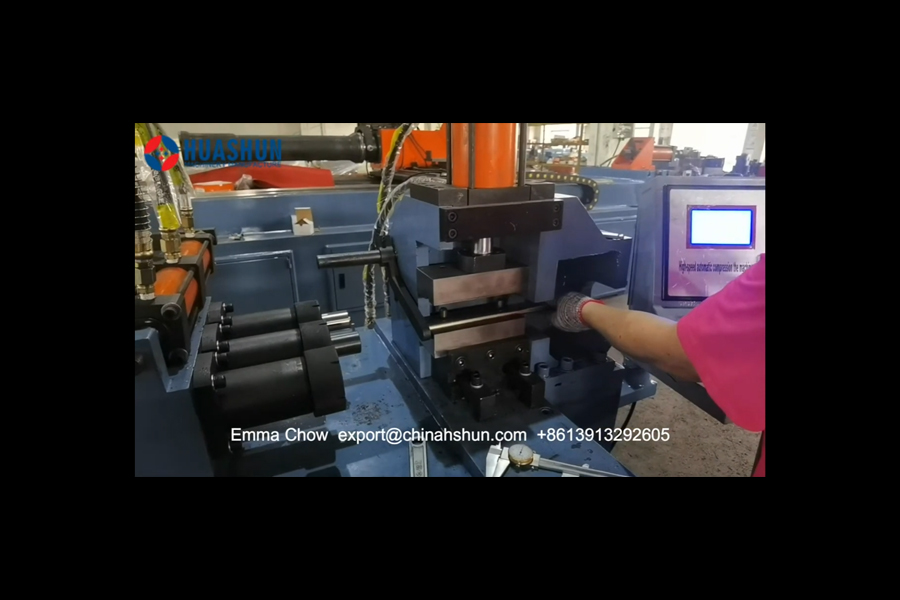

Video
