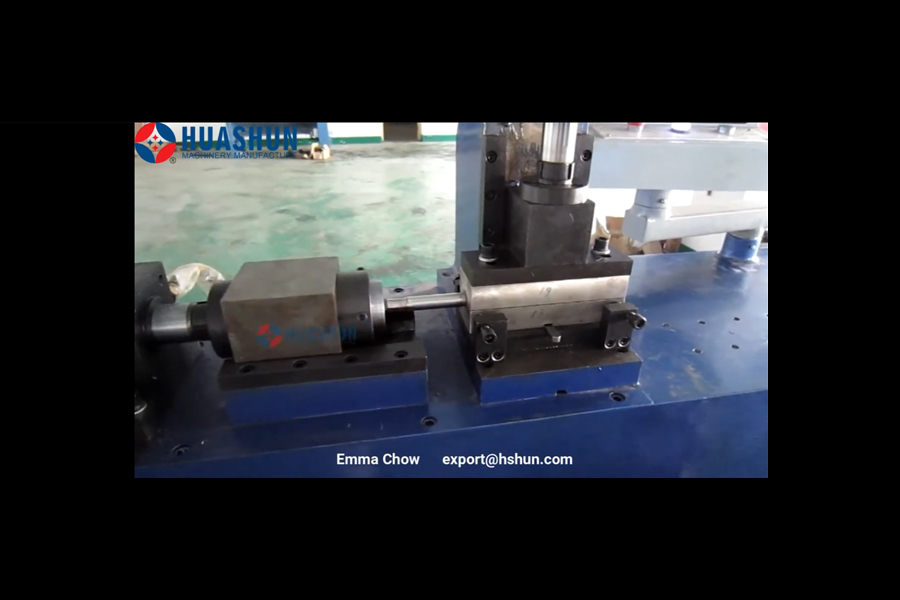

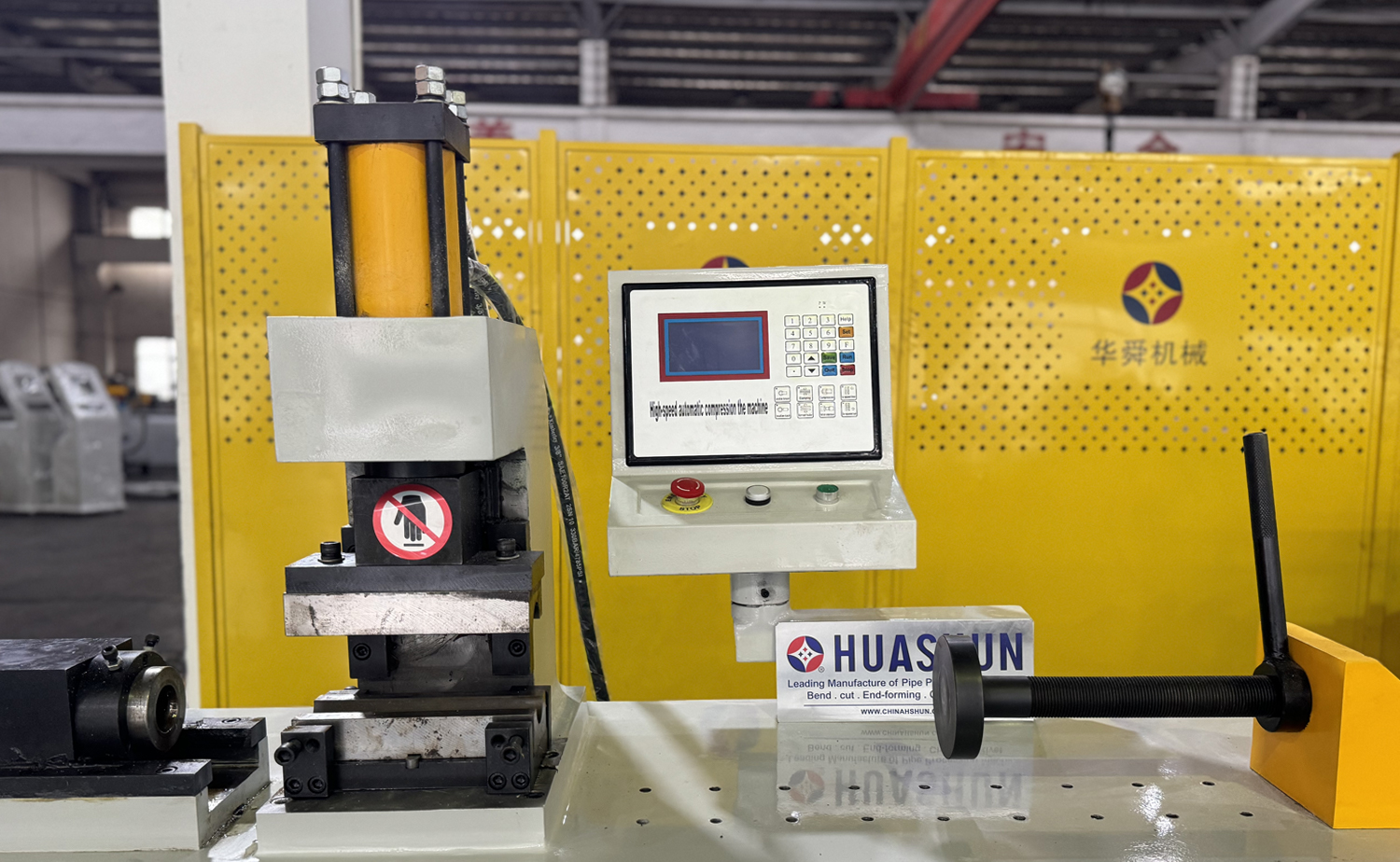

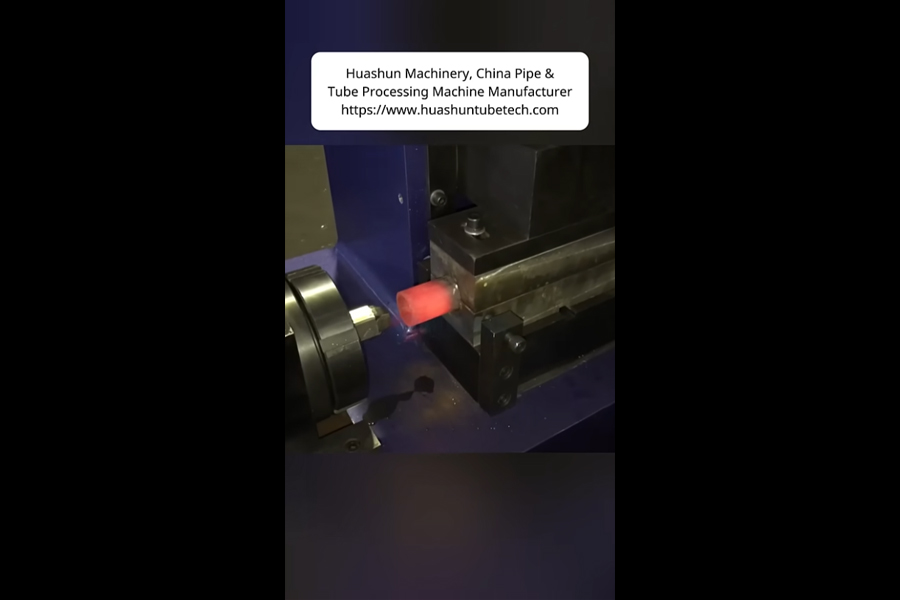

TM60 Hydraulic Single Head Tube End Forming Machine
Back
Features
Basic Parameters
Video
Industry Applications
Contact Us
Features
1.This automatic machine delivers exceptional efficiency, designed to streamline tube forming processes with minimal operator input.
2.Powered by a hydraulic system, it ensures precise tube clamping and end forming, providing consistent results with every cycle.

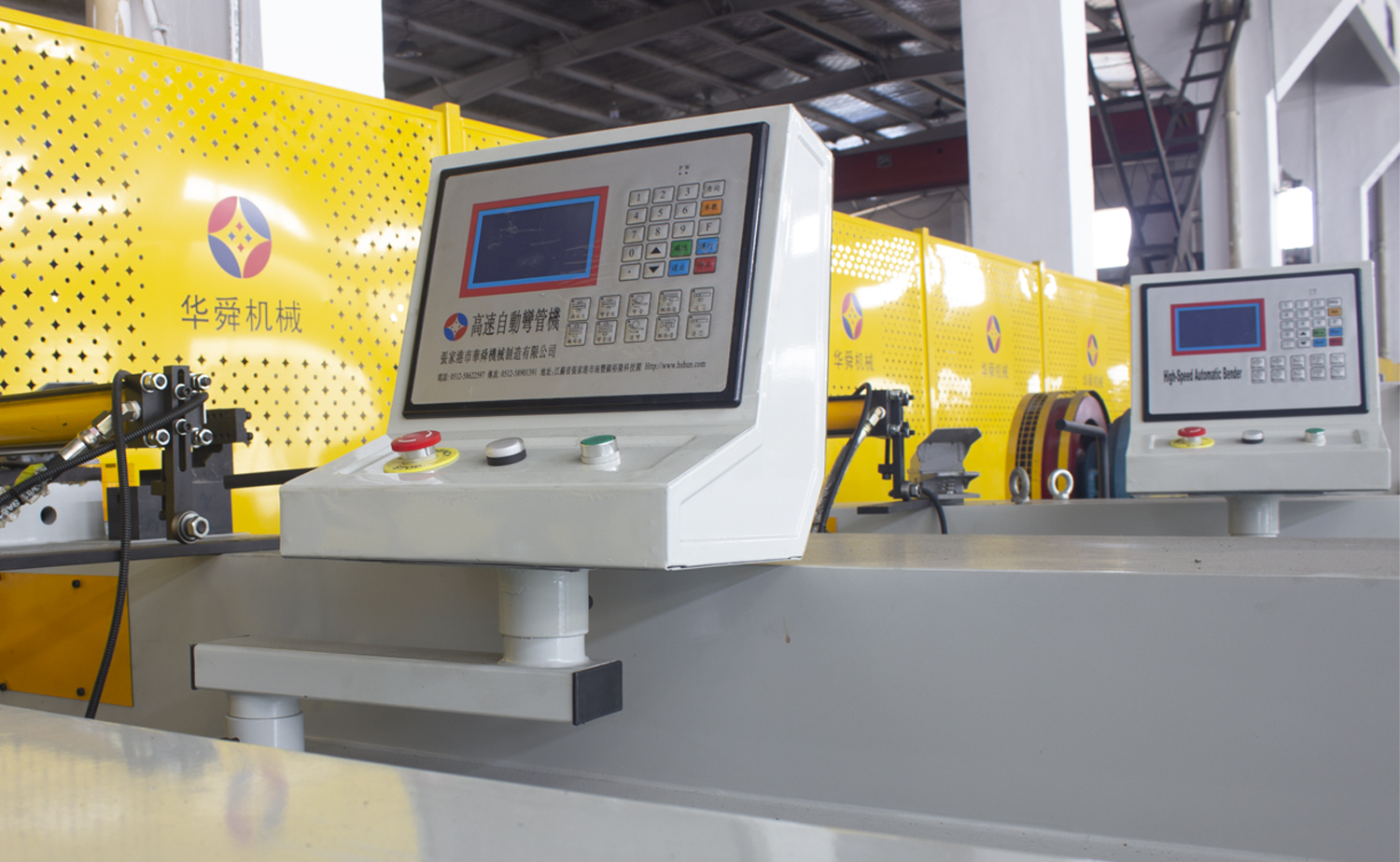

3.The user-friendly PLC touch screen simplifies operation by offering easy access to both automatic and manual modes, adapting to various production needs.
4.Capable of performing a wide range of end forming shapes, such as concave-convex, flat, square, slanted, V-shaped, enlarged sections, open slots, and more, the machine is versatile enough to meet diverse customer requirements.
5.High-quality mechanical components ensure superior stability and reliable operation, making the machine ideal for continuous production environments.
6.Changing dies is a quick and easy process, designed for fast setup and minimal interruption to production flow.
7.With CE and ISO9001 certifications, this machine adheres to the highest international standards for quality, safety, and performance.
Parameter table
Main Technical Parameter
| Name | TM-60 | TM-60-2 (2 workstations) |
| Max. End Forming Capacity | Φ60x2mm | Φ60x2mm |
| Max. End Forming Length | 150mm | 150mm |
| Reduction time | 100/5-6mm/s | 100/5-6mm/s |
| Max. Hydraulic Pressure | 14Mpa | 14Mpa |
| Motor Power | 5.5kw | 5.5kw |
| Dimension of machine | 2600x700x1500mm | 2900x850x1500mm |
| Weight of the machine | 1350kg | 1450kg |
