TM100 Multi-Shape Forming Single-Head Tube End Forming Machine
Back
Features
Basic Parameters
Video
Industry Applications
Contact Us
Features
1.This is a high-performance automatic machine, designed to provide outstanding efficiency for tube forming applications.
2.The tube clamping and end forming operations are driven by a powerful hydraulic system, ensuring reliable and precise results.
3.Featuring an interactive PLC touch screen, the machine allows operators to easily toggle between automatic and manual modes, offering flexible control over the forming process.
4.The machine is capable of a wide array of end forming profiles, such as concave-convex, elongated, flat, square, enlarged, slanted, V-shaped, and open slot, making it highly adaptable to various production demands.
5.With durable mechanical components, the machine ensures high operational stability, even under continuous use, for optimal production performance.
6.Die changes are fast and simple, reducing downtime and enabling smooth transitions between different production runs.
7.Certified with CE and ISO9001, this machine meets the highest industry standards for quality, safety, and performance, ensuring long-term reliability and compliance.
Parameter table
Main Technical Parameter
| Name | TM-100 | TM-100-3 (3 workstations) |
| Max. End Forming Capacity | Φ100x3.5mm | Φ100x3mm |
| Max. End Forming Length | 150mm | 150mm |
| Reduction time | 100/8-10mm/s | 100/8-10mm/s |
| Max. Hydraulic Pressure | 16Mpa | 16Mpa |
| Motor Power | 11kw | 11kw |
| Dimension of machine | 3000x800x1700mm | 3200x900x1700mm |
| Weight of the machine | 1800kg | 1900kg |

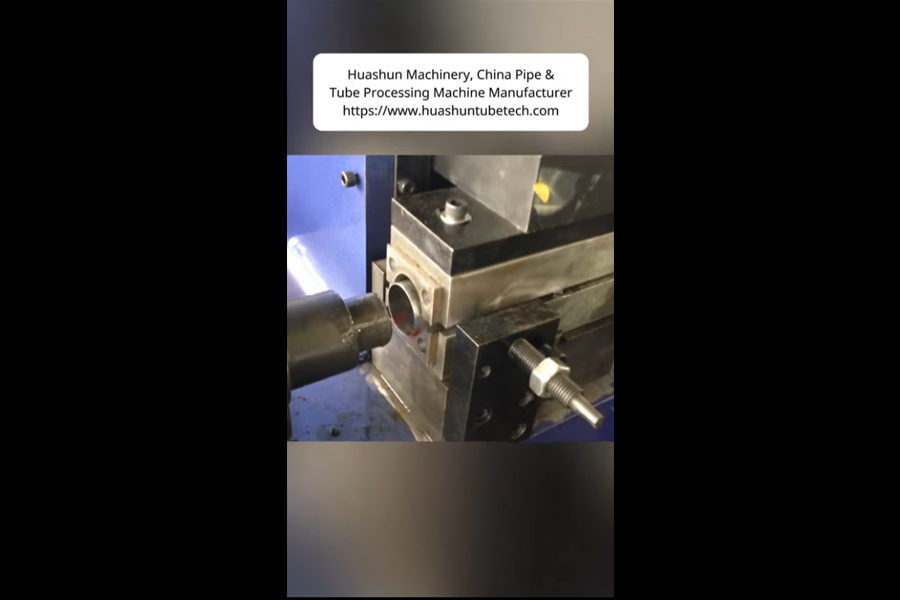

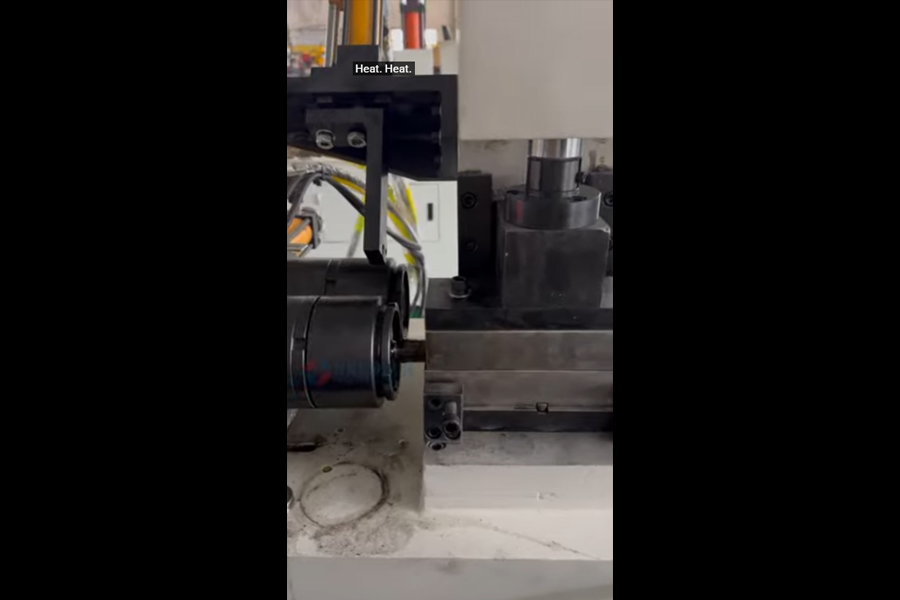

Video
