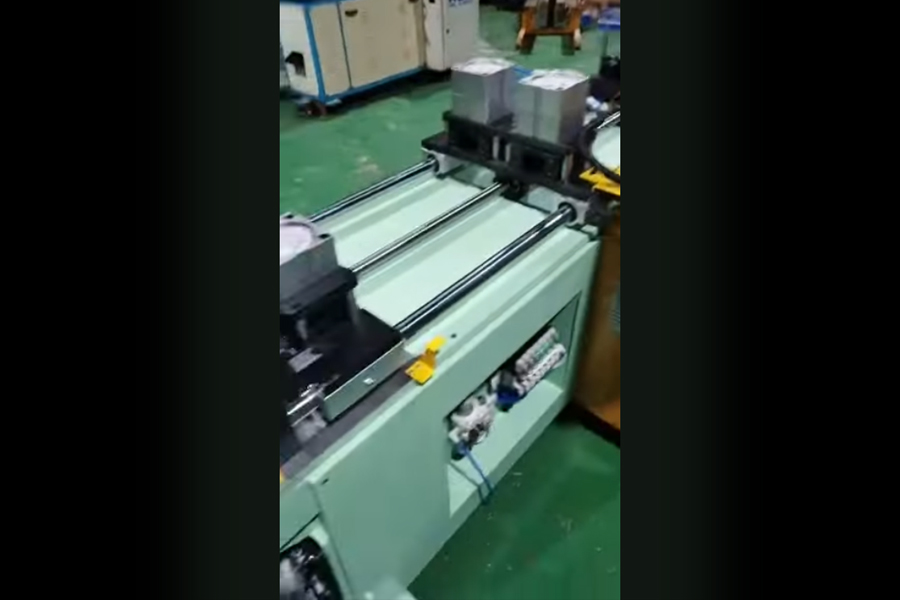

Features

1.The three-part clamping die design effectively reduces tube distortion, delivering a clean and smooth cut surface for optimal results.
2.With precise concentricity, the machine ensures excellent alignment, contributing to high-quality welds in the subsequent processing stages.

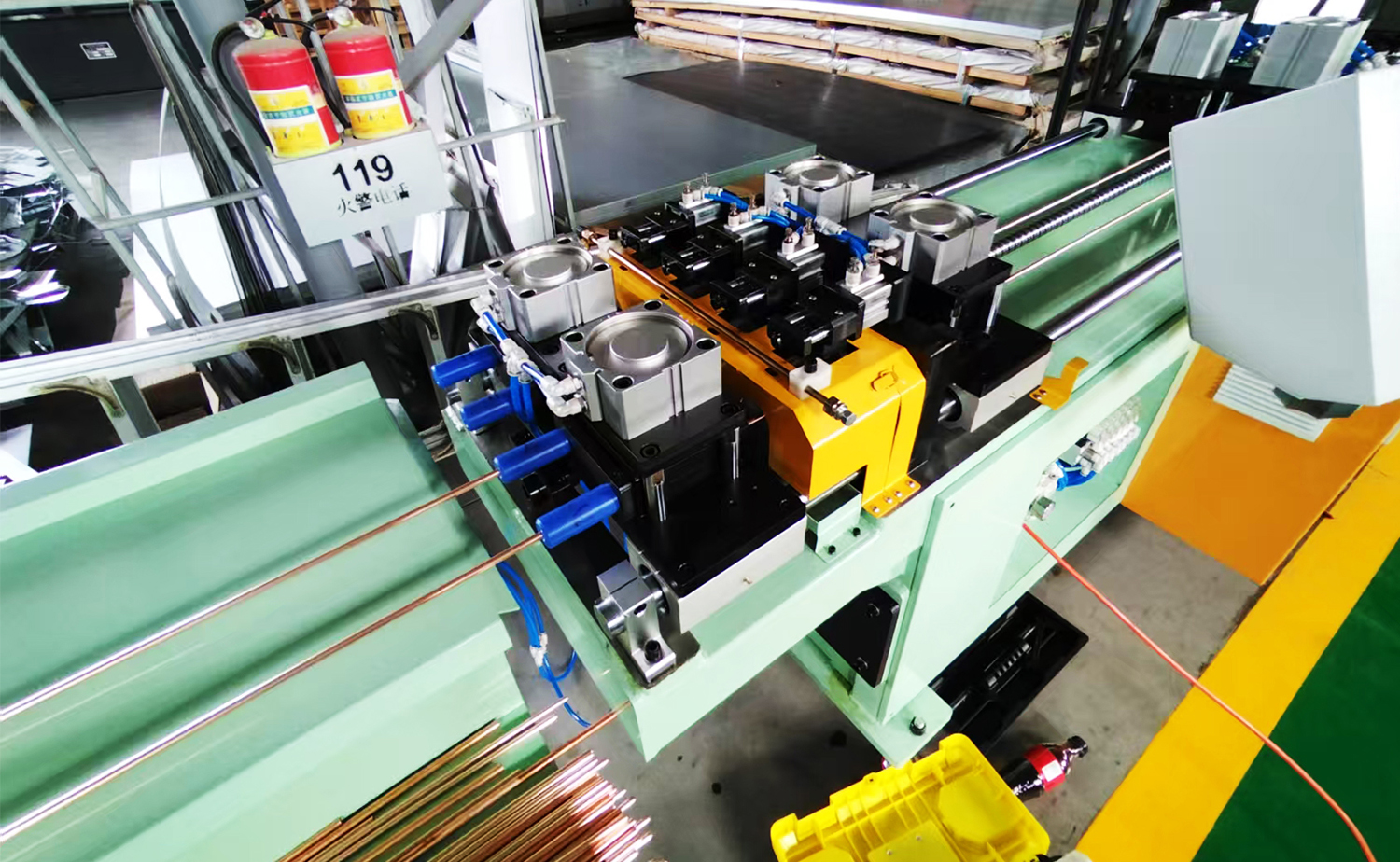

3.Utilizing chipless cutting technology, the system features 360° rotary cutting and dual-point clamping, providing efficient and accurate cuts while minimizing waste.

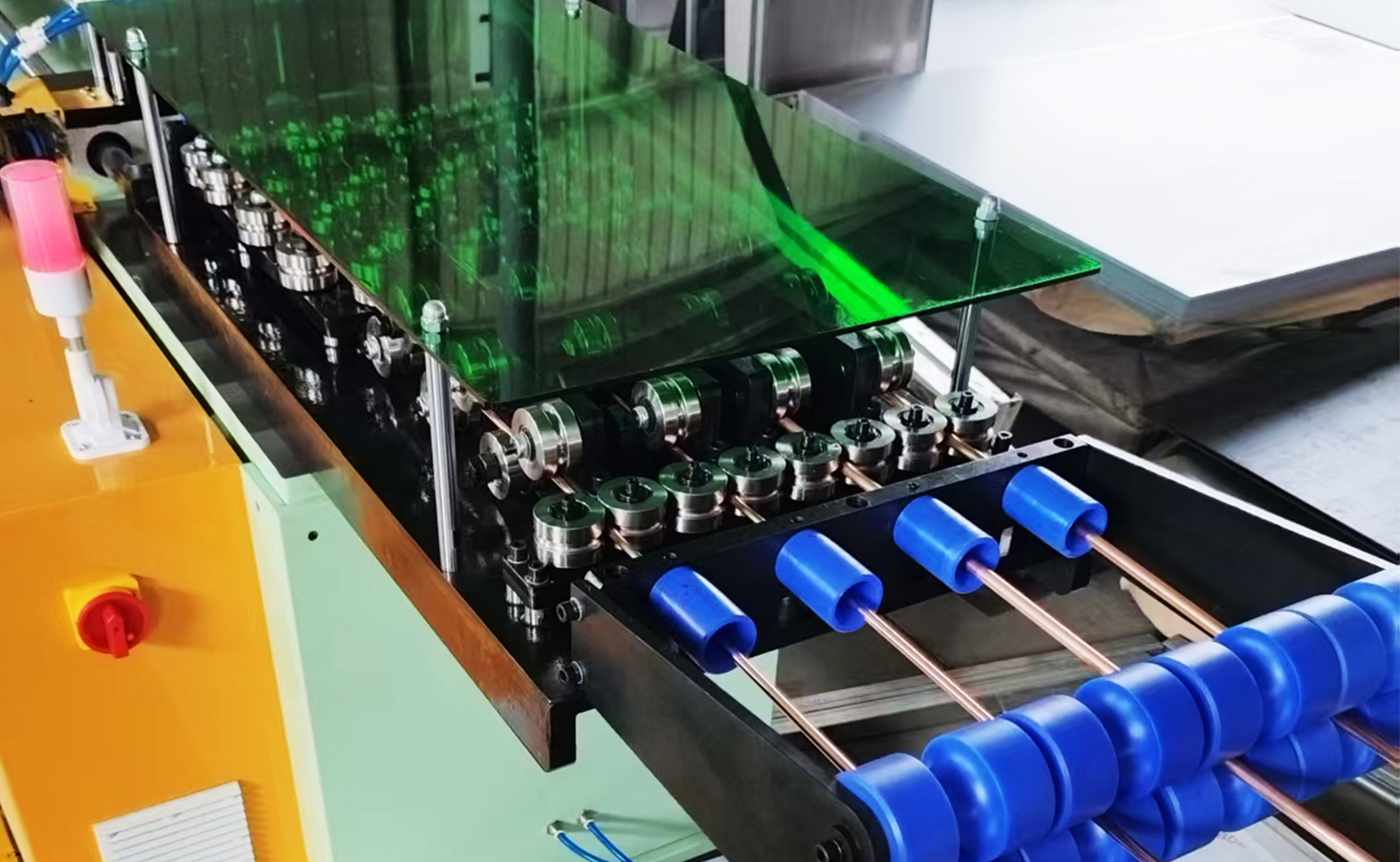

4.The nylon straightening wheel, paired with a "U"-shaped rubber belt, gently guides the tube, preventing any damage or scratches to the surface during operation.

Parameter table

Main Technical Parameter

Item Parameter Remark
Material Type TP2 copper tube (M/M2), 6063 soft aluminum or equivalent standard products
Copper OD&Thickness OD: ø16, ø18, ø22, ø28; Wall thickness: 1-2mm
Coil Dimensions & Weight Unwound type (wooden reel OD: 1070mm, thickness: 300mm); Inner hole: 136mm
Processing Capability Number of Cuts per Cycle 1 piece 1+1+1+1 layout
Cutting Length Min: ≥60mm; Max: 10,000mm
One Time Feeding Stroke 1000mm (servo motor + ball screw feeding)
Production Efficiency 6 cuts/min (L=1000mm, ø16 tube as example) varies with diameter & thickness
Processing Accuracy Straightness Tolerance ≤3‰ (when L < 1000mm)
Length Tolerance -L < 100mm: ±0.2mm-
-100–600mm: ±0.5mm
-600–1800mm: 0–1mm
-1800–4200mm: 0–3mm
Cutting End Flatness ≤±0.5mm (L ≤ 1000mm)
Surface Condition No visible scratches, pulls, or dents on copper/aluminum tubes
Environment Power 4 kw
Air Pressure 0.5–0.7MPa
Dimensions - Main Unit: 3500(L) × 950(W) × 1400(H) mm
- Collection Rack: 2000(L) × 950(W) × 800(H) mm
Footprint Total: 13,500(L) × 1250(W) × 1800(H) mm (suggested) coil rack 3m,coil rack to main machine space 5m,machine length 3.5m,collection rack 2m
Weight 2200KG
