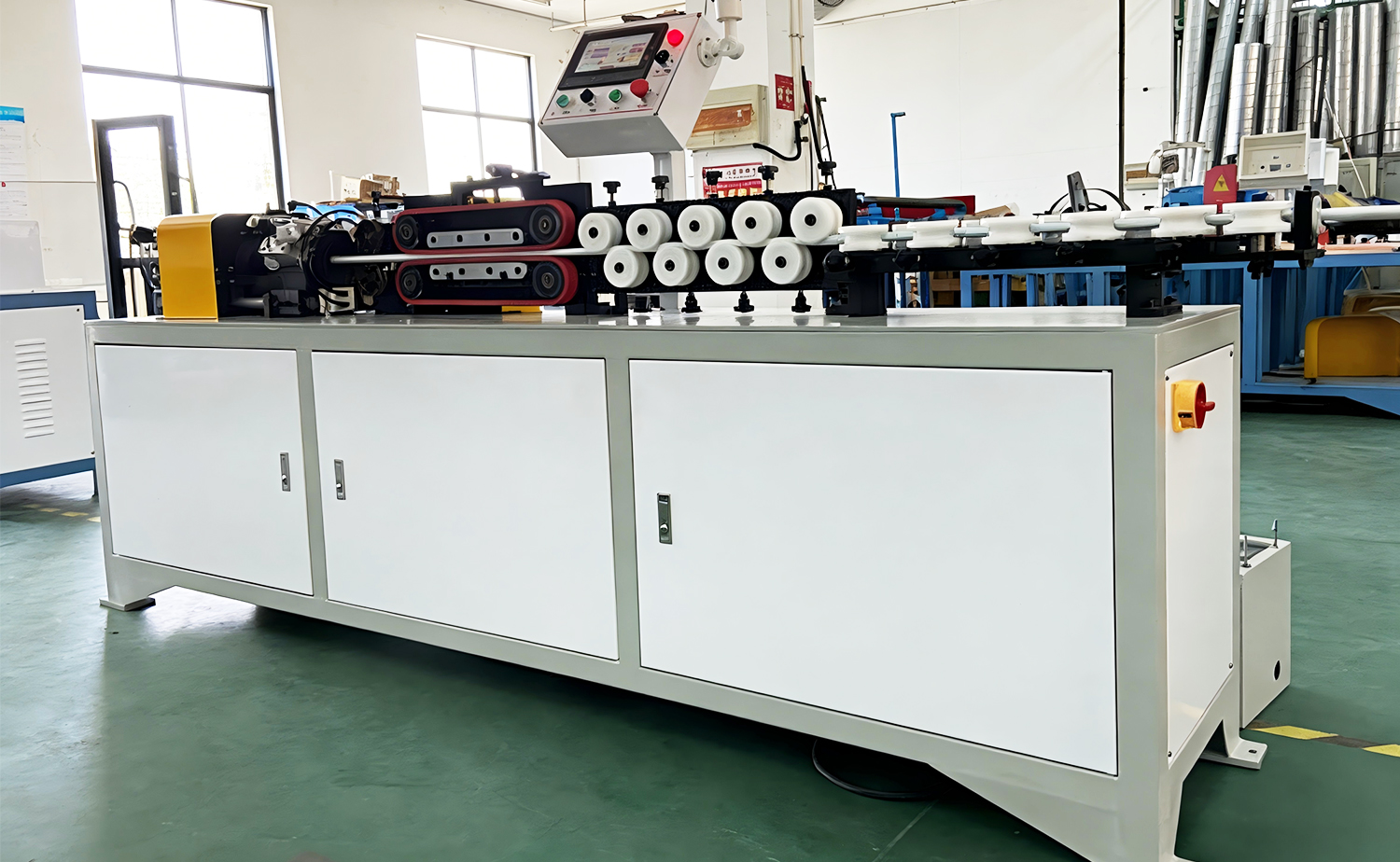

SC-30 Chipless Tube Straightening and Cutting Machine
Back
Features
Basic Parameters
Video
Industry Applications
Contact Us
Features
1.The three-part clamping die design minimizes tube distortion, ensuring smooth and clean cutting ends for superior quality.
2.High-precision concentricity is maintained, guaranteeing excellent welding quality during subsequent processes.
3.Featuring chipless cutting technology with 360° rotary motion and dual-point clamping, this machine delivers precise cuts with minimal material waste.
4.The straightening wheel, made of nylon, along with the "U"-shaped rubber belt, protects the tube surface from scratches, ensuring a flawless finish.
Parameter table
Main Technical Parameter
| NO. | Parameter | Data |
| 1 | Tube Material | Copper / Aluminum tube |
| 2 | Tube Diameter | 15-25mm |
| 3 | Cutting Length | >100mm |
| 4 | Work Speed | 0~60m/min, adjustable by Inverter |
| 5 | Cutting Tolerance | 0.5mm/1m |
| 6 | Control System | PLC control / HMI |
| 7 | Motor Power | 5.0KW |
| 8 | Electric System | 380V, 50HZ, 3Phase (Customized) |
| 9 | Dimension | 3000 x 700 x 1300 mm |
| 10 | Weight | About 1000 KG |
