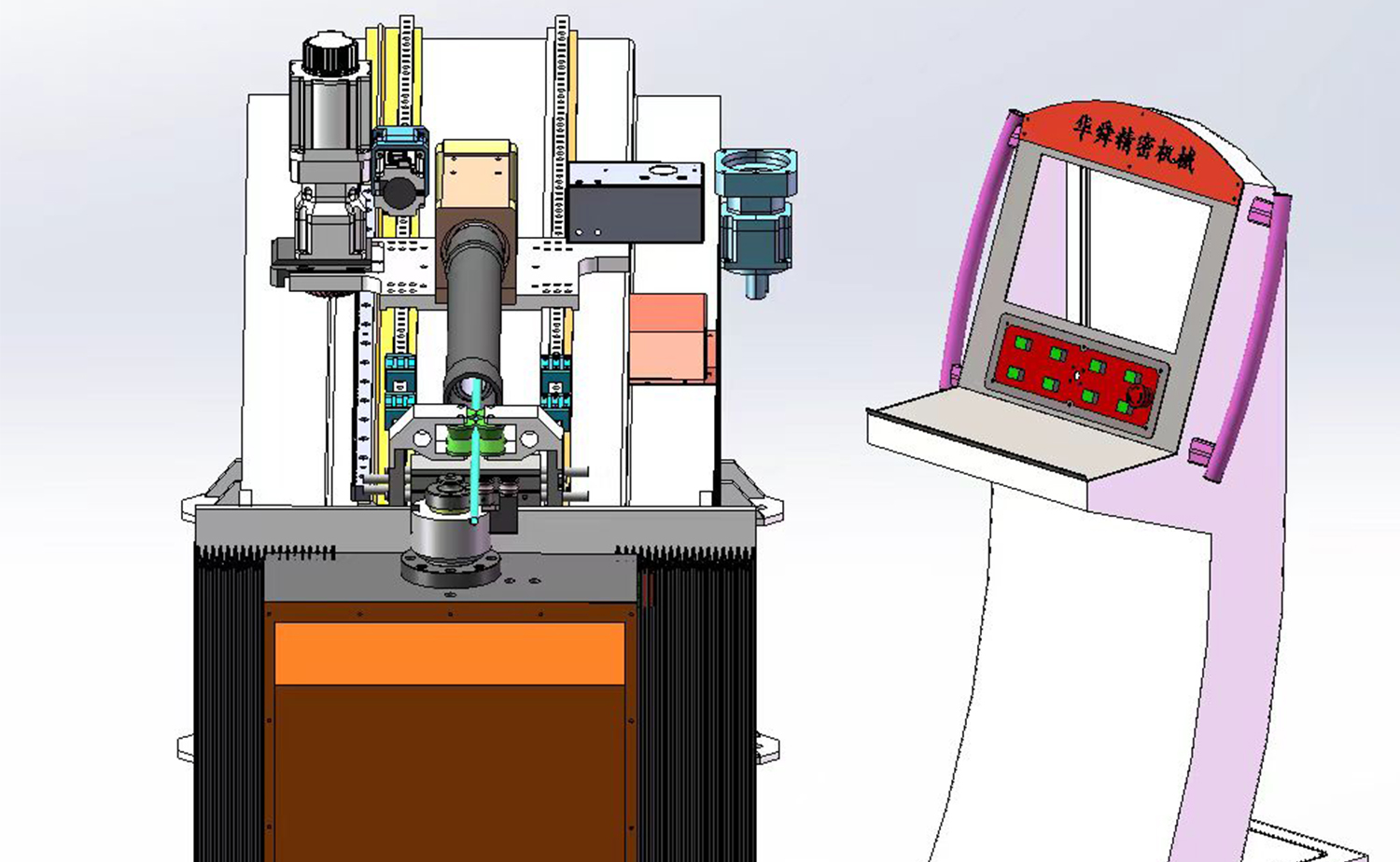

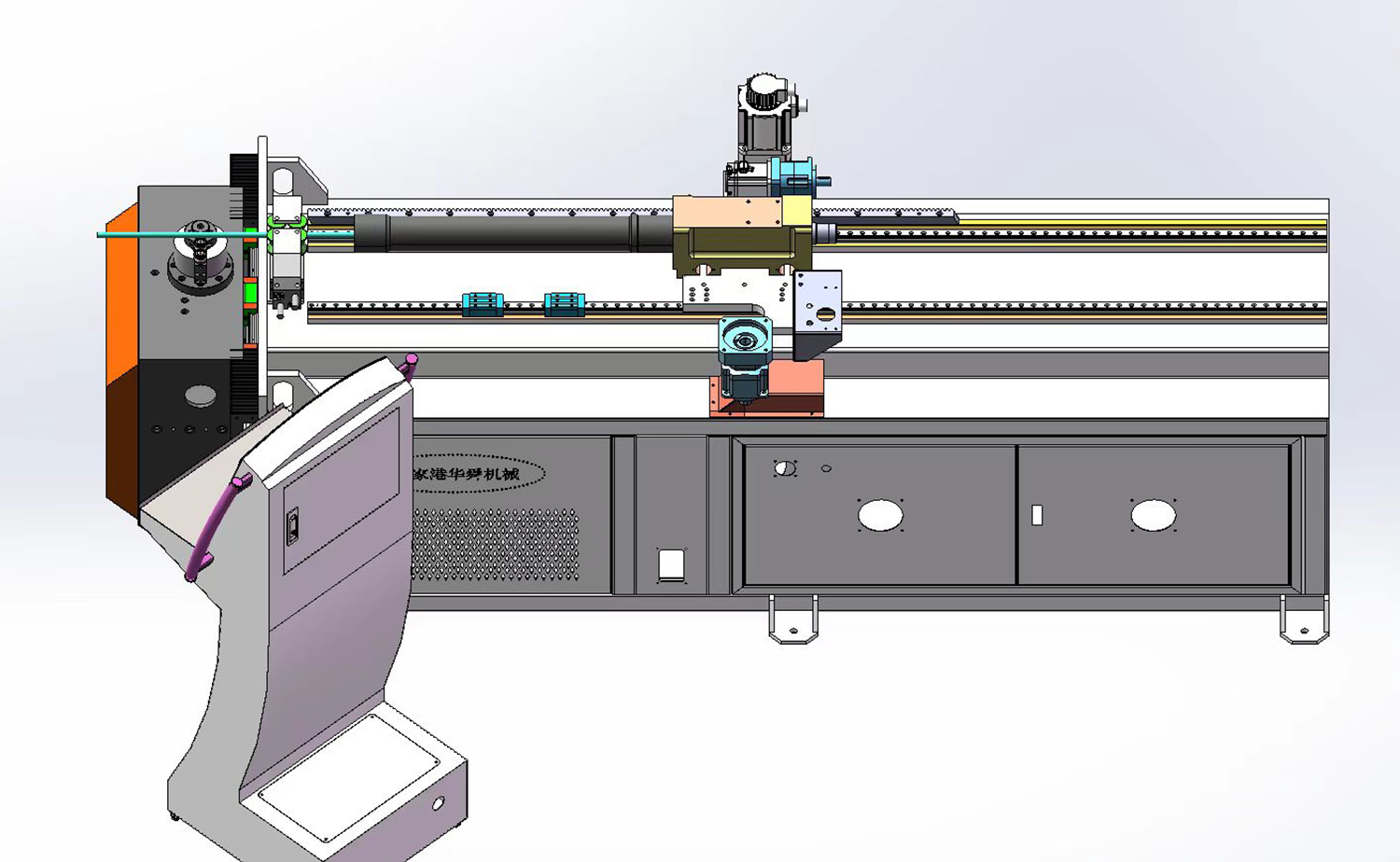

Rod Bending Machine with Servo Control with optional 3D Simulation Function
Back
Features
Basic Parameters
Video
Industry Applications
Contact Us
Features
This machine is specifically engineered for bending solid bars and can also handle tubes with thicker walls and larger radii (R). It supports both draw bending and push bending, allowing for multiple bend radii (R) using a single die set. Additionally, an optional cutting function is available to enhance its versatility.
Parameter table
Main Technical Parameter
| Name | Data | ||
| Max Bending Capacity | Mild steel tube(R≥4D） | 25mm | |
| Mild steel round rod | Φ18mm | ||
| Stainless Steel | Φ15mm | ||
| Max Bending Radius | Push bending workable(No limit) | ||
| Min Bending Radius | R15mm | ||
| Max. One Time Feeding Length | 2000 | ||
| Can customized as per customer’s requirement | |||
| Max Bending Degree | 185° | ||
| Bending Unit | 32 | ||
| Bending Axis | Speed | 120deg/s | |
| Accuracy | ±0.1 | ||
| Rotating Axis | Speed | 360deg/s | |
| Accuracy | ±0.05 | ||
| Feeding Axis | Speed | 600mm/sec | |
| Accuracy | ±0.05mm | ||
| Machine Dimensions | 3850×850×1150mm | ||
| Appro. Weight | 1250kg | ||

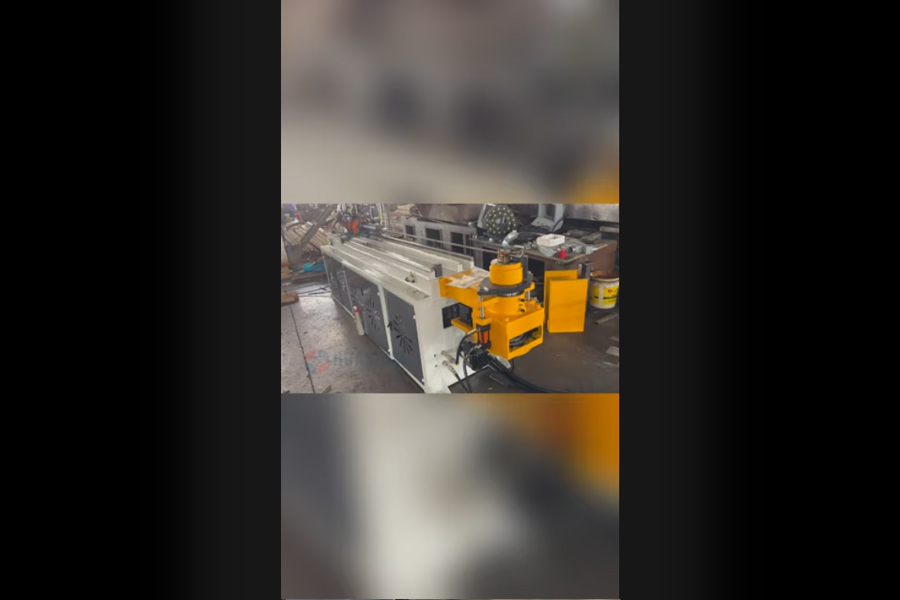

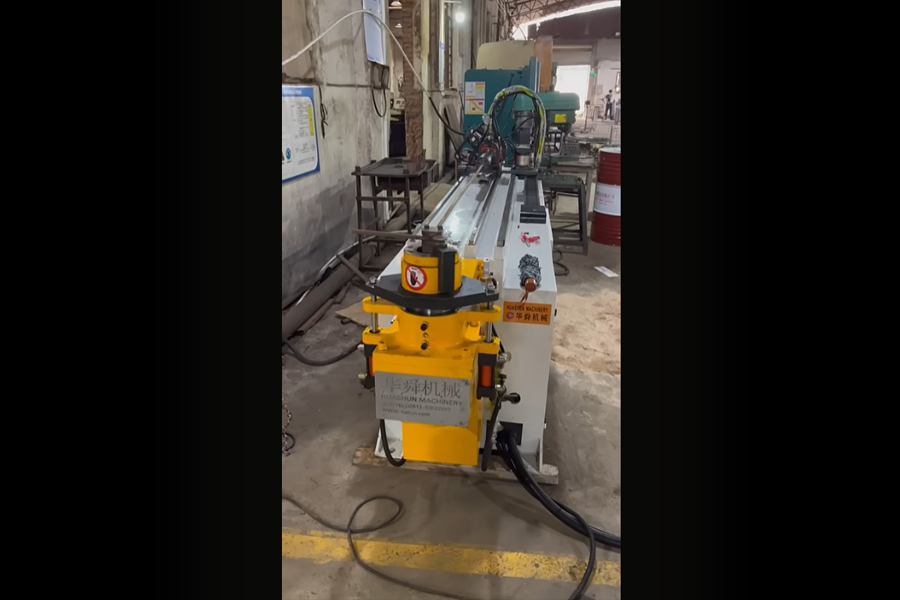

Video
