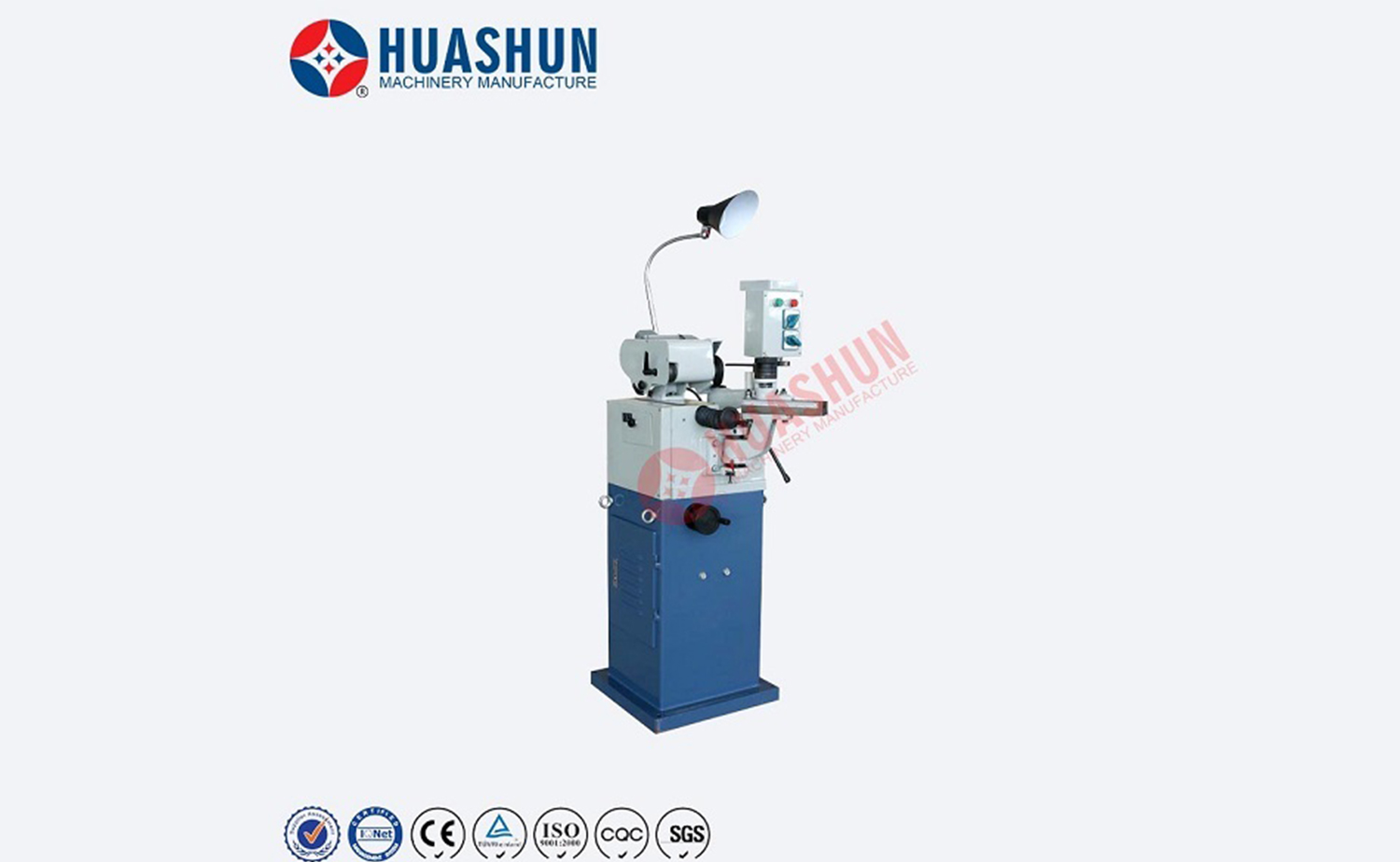

SG800 Adjustable Saw Blade Sharpening Machine for Multiple Sizes
Back
Features
Basic Parameters
Video
Industry Applications
Contact Us
Features
1.Designed for the precise shaping and sharpening of new saw blade teeth, this machine provides an efficient solution for blade maintenance.
2.It accommodates a variety of saw blades, handling different sizes and thicknesses with ease, making it highly flexible for multiple blade types.
3.The grinding head is movable, allowing for precise adjustments to suit blades of varying thickness, ensuring optimal sharpening results.
4.With an adjustable feeding speed for sharpening, operators can fine-tune the process to achieve the desired edge quality and efficiency.
5.The machine head is adjustable both vertically and horizontally, enabling seamless grinding and chamfering of saw blades without changing the grinding wheel.
6.High-grade mechanical components guarantee the machine runs smoothly and consistently, providing exceptional stability even during heavy-duty use.
7.Easy to operate and designed for quiet performance, this machine minimizes noise, creating a more comfortable working environment.
Parameter table
Main Technical Parameter
| Name | SG-800 |
| Saw Blade Diameter | Φ100-Φ800mm |
| Max.Teeth Distance | 25mm |
| Max. Teeth Depth | 8mm |
| Grinding Angle Available | -5°-30° |
| Max. Saw Blade Thickness | 8mm |
| Grinding Speed | 4s/teeth |
| Grinding Wheel Size | Φ75-Φ150mm |
| Grinding Wheel Rotating Speed | 4200rpm |
| Driven Motor | 550/750W |
| Grinding Wheel Motor | 370W |
| Machine Dimension | 800x800x1410mm |
| Machine Weight | 130KGS |

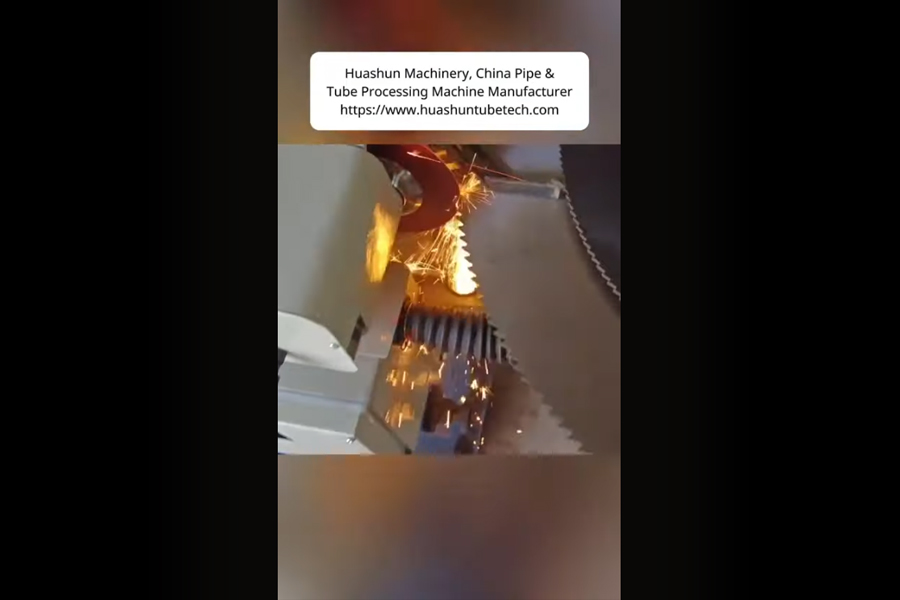

Video
