YW Series Heavy-Duty Press Bending Machine for Metal Tubes
Back
Features
Basic Parameters
Video
Industry Applications
Contact Us
Features
1.The shift from rotating to pressing bending enhances the drive mechanism, leading to a more streamlined and refined machine design.
2.The vertical press-bending system significantly increases the available bending space, improving flexibility and capacity.
3.Featuring a unique exerting device, this machine eliminates the need for clamping, making pipe loading and unloading quick and easy, which in turn reduces bending time and boosts overall efficiency.
4.Ideal for processing pipes made from various materials, it supports large bending radii and multi-angle bends, providing versatility in operations.
5.This model serves as an essential complement to both single-head and double-head bending machines, enhancing their capabilities in complex bending tasks.
Parameter table
Main Technical Parameter
| Name | YW-40 |
| Max. Pressing Capacity | Φ40×2.0 mm |
| Max. Arc Length | 1000 mm |
| Max. Arc Height | 300 mm |
| Working Pressure | 12 MPa |
| Motor Power | 5.5 kW |
| Machine Dimension | 2000×850×1800 mm |
| Machine Weight | 1000 kg |

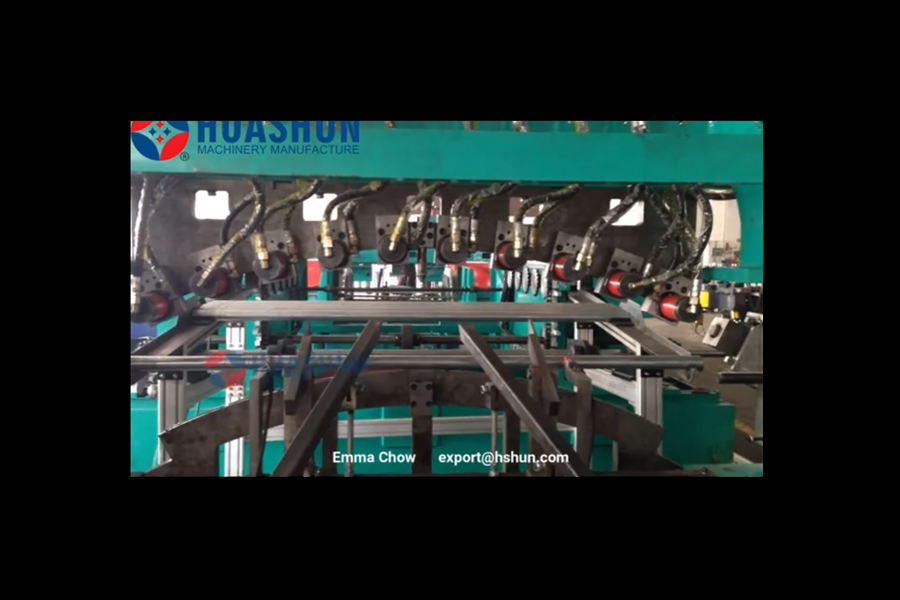

Video
