SG450 Automatic Saw Blade Sharpening Machine
Back
Features
Basic Parameters
Video
Industry Applications
Contact Us
Features
1.This machine is specifically designed for the forming and sharpening of new saw blade teeth, ensuring precision and efficiency.
2.It is capable of sharpening saw blades of varying sizes and thicknesses, providing versatility for different applications.
3.The movable grinding head adjusts to accommodate different saw blade thicknesses, making it adaptable to a wide range of blade types.
4.The sharpening feed speed is fully adjustable, allowing for customized processing to match the specific requirements of each blade.
5.The machine's head can be easily adjusted up and down, enabling both grinding and chamfering of saw blades without the need to switch grinding wheels.
6.Built with high-quality mechanical components, the machine offers superior stability during operation, ensuring long-lasting, reliable performance.
7.Featuring simple controls and a low-noise design, this machine is easy to operate while maintaining a quiet working environment.
Parameter table
Main Technical Parameter
| Name | SG-450 |
| Saw Blade Diameter | Φ50-Φ450mm |
| Max.Teeth Distance | 25mm |
| Max. Teeth Depth | 8mm |
| Grinding Angle Available | -5°-130° |
| Max. Saw Blade Thickness | 8mm |
| Grinding Speed | 45-180 teeth/min |
| Grinding Wheel Size | Φ75-Φ150mm |
| Grinding Wheel Rotating Speed | 4200rpm |
| Driven Motor | 1/2HP |
| Grinding Wheel Motor | 3/4HP |
| Machine Dimension | 800x800x1410mm |
| Machine Weight | 130KGS |

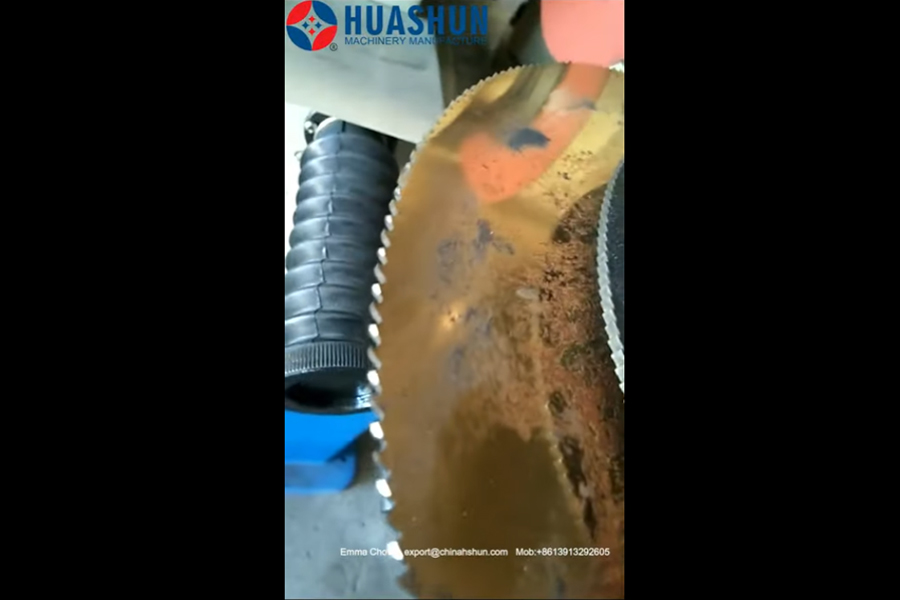

Video
