SS Series Fully Automatic CNC Pipe Bending Machine

Back

  • SS Series Fully Automatic CNC Pipe Bending Machine
  • SS Series Fully Automatic CNC Pipe Bending Machine
  • SS Series Fully Automatic CNC Pipe Bending Machine

Features

Basic Parameters

Video

Industry Applications

Contact Us

Features

Operation and Performance

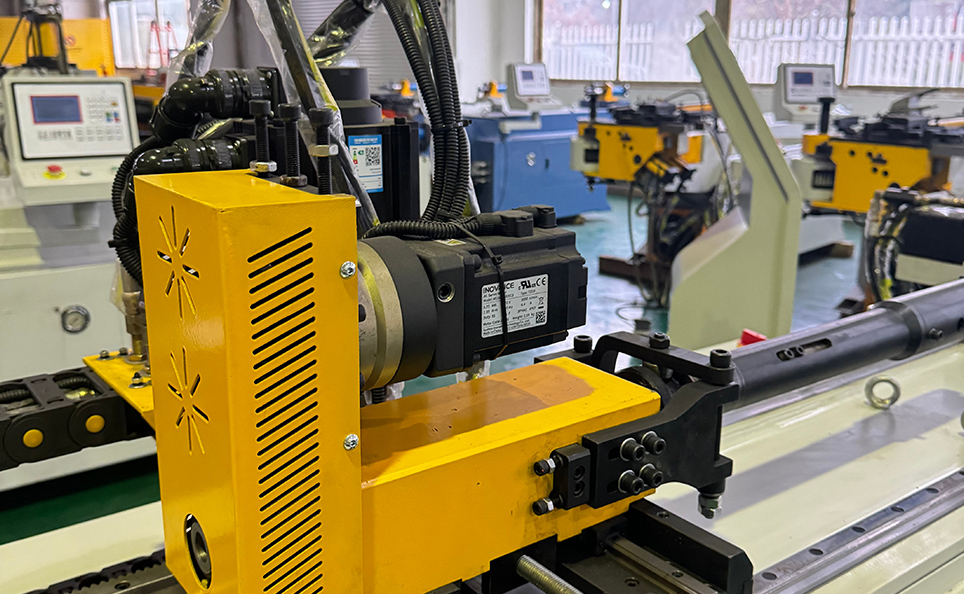

The SB-18CNC is a fully automatic and cost-effective pipe bending machine, equipped with three programmable axes for precise control. It features servo motors for both feeding and rotation, providing high-performance bending with accuracy.
Bending Modes

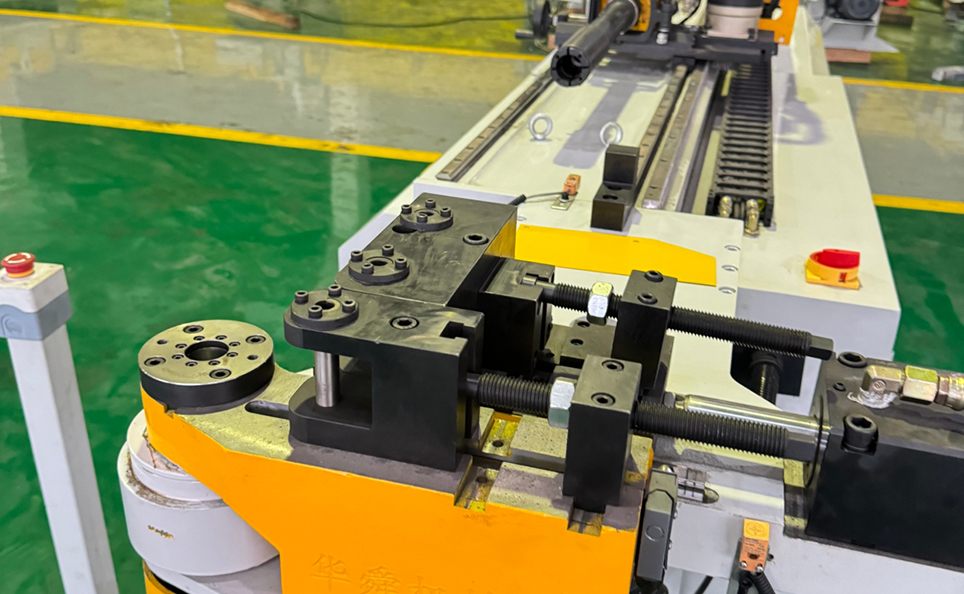

Two bending modes are available: a hydraulic pipe bender for traditional bending needs and a servo CNC tube bender for more advanced and precise operations. Hydraulic pressure die assists ensure consistent and uniform bends across all cycles.
Lubrication and Maintenance
The mandrel lubricating system reduces friction and ensures smooth operation during the bending process. A centralized greasing system lubricates all moving parts, extending the machine's lifespan.
User Interface and Cooling
The touch screen PLC system simplifies the control of the machine, providing easy access to both auto and manual modes. The electric cabinet is equipped with a cooling fan, ensuring optimal machine performance over time.

Parameter table

Main Technical Parameter

Model          SB-18CNC SB-25CNC
Mild Steel     18×1.5 t 25×2.0 t
Stainless Steel 12×1.2 t 22×1.5 t
Max. Rectangle Pipe 14×1.2 t 22×1.5 t
Max. Bending Radius 80 mm 180 mm
Max. Bending Angle 190° 190°
Max. Effective Mandrel Length 1500 mm 2000 mm
Bending Accuracy ±0.1° ±0.1°
Bending Speed 180 mm/s 160 mm/s
Feeding Accuracy ±0.1 mm ±0.1 mm
Feeding Speed 1100 mm/s 1000 mm/s
Rotation Accuracy ±0.1° ±0.1°
Rotation Speed 360 mm/s 250 mm/s
Max. Bending Radius Difference 25 30

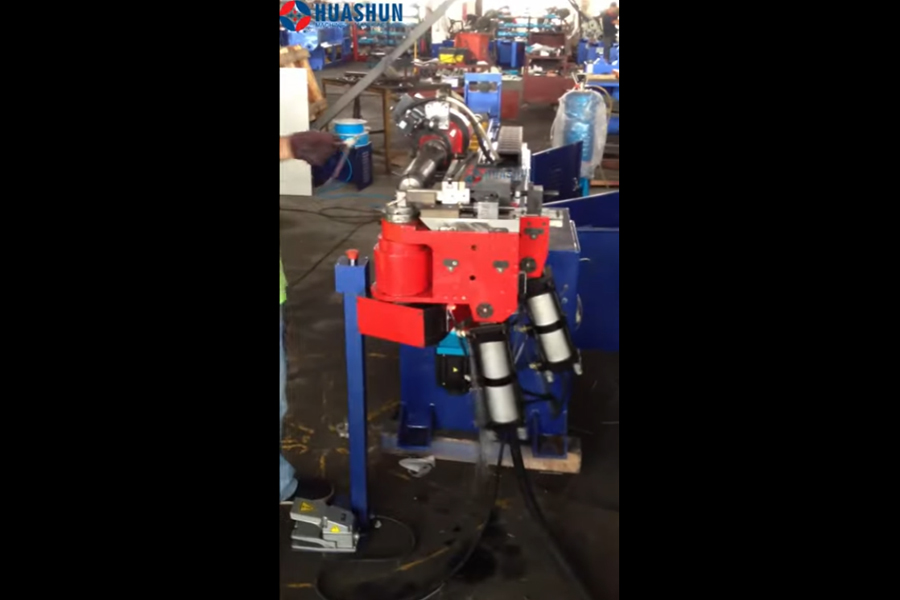

Video
