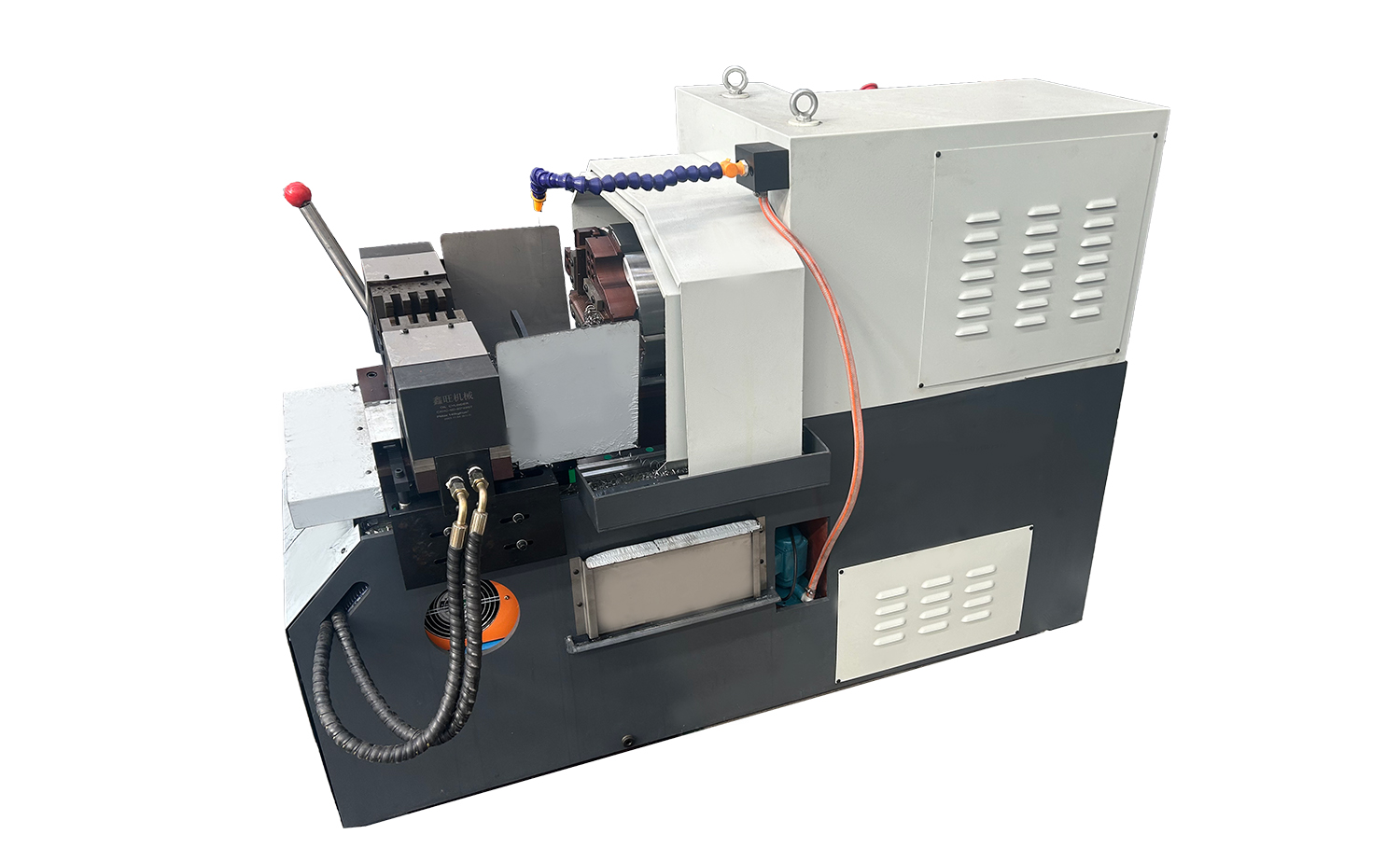

Intelligent Pipe Threading Machine
Back
Features
Basic Parameters
Video
Industry Applications
Contact Us
Features
The Intelligent Threading Machine from huashuntech Machinery Co., Ltd. is a cutting-edge solution for high-precision threading applications. Designed with advanced PLC intelligent control and servo motor technology, this machine ensures exceptional performance, accuracy, and reliability for various pipe threading tasks.
Parameter table
Main Technical Parameter
| Model | HTTS50 | HTTS65 | HTTS80 | HTTS100 |
| Processing Range | ½ inch - 2 inch (21mm-60mm) | ½ inch - 2½ inch (21mm-76mm) | ½ inch - 3 inch (21mm-89mm) | ½ inch - 4 inch (21mm-114mm) |
| Equipment Certification | CE | CE | CE | CE |
| Rated Voltage | 380V 50HZ | 381V 50HZ | 382V 50HZ | 383V 50HZ |
| Equipment Dimensions(LxWxH) | 1800x800x1250mm | 1801x800x1250mm | 1802x800x1250mm | 1803x800x1250mm |
| Spindle Servo Motor Power | 5.5KW | 6.5KW | 7.5KW | 8.5KW |
| Application | Pipe Threading | Pipe Threading | Pipe Threading | Pipe Threading |
| Minimum Pipe Length | 150mm | 151mm | 152mm | 153mm |
| Thread Varieties | PT NPT | PT NPT | PT NPT | PT NPT |
| Rated Power | 8KW | 9KW | 10KW | 11KW |
| Equipment Weight | 1000KG | 1001KG | 1002KG | 1003KG |
| Hydraulic Pressure | 3.5MPa | 4.5MPa | 5.5MPa | 6.5MPa |
| HMI(Human Machine Interface) | Chinese,English | Chinese,English | Chinese,English | Chinese,English |
