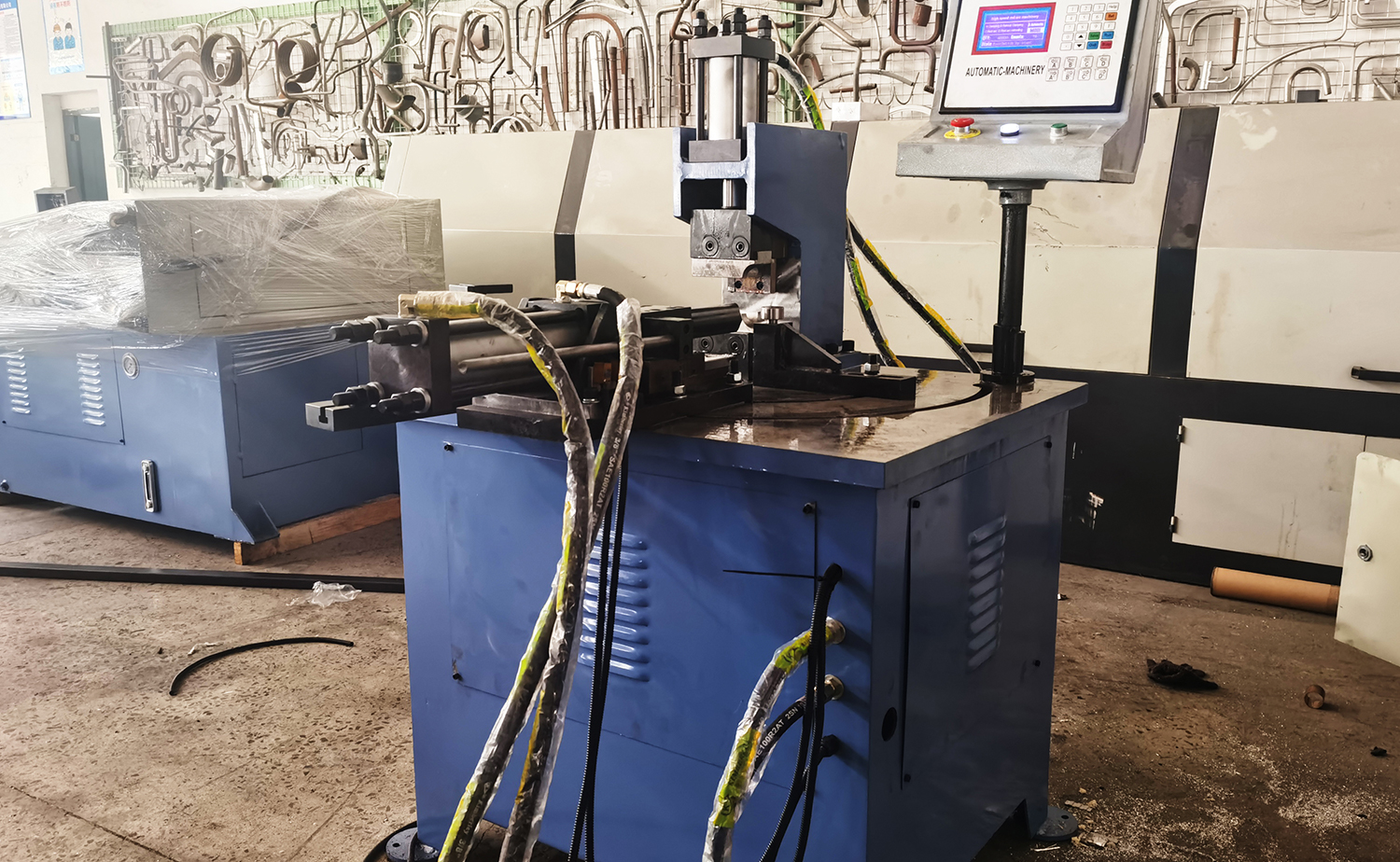

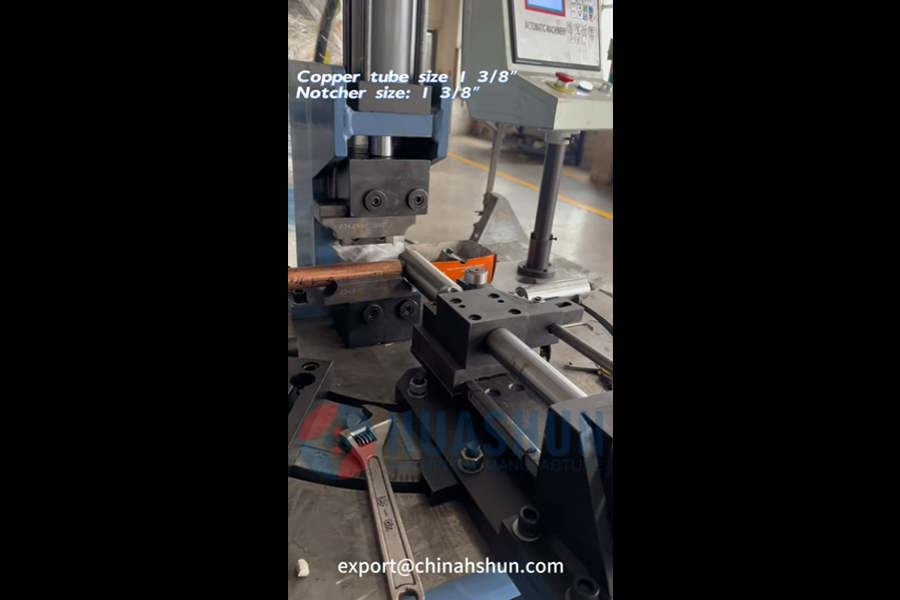

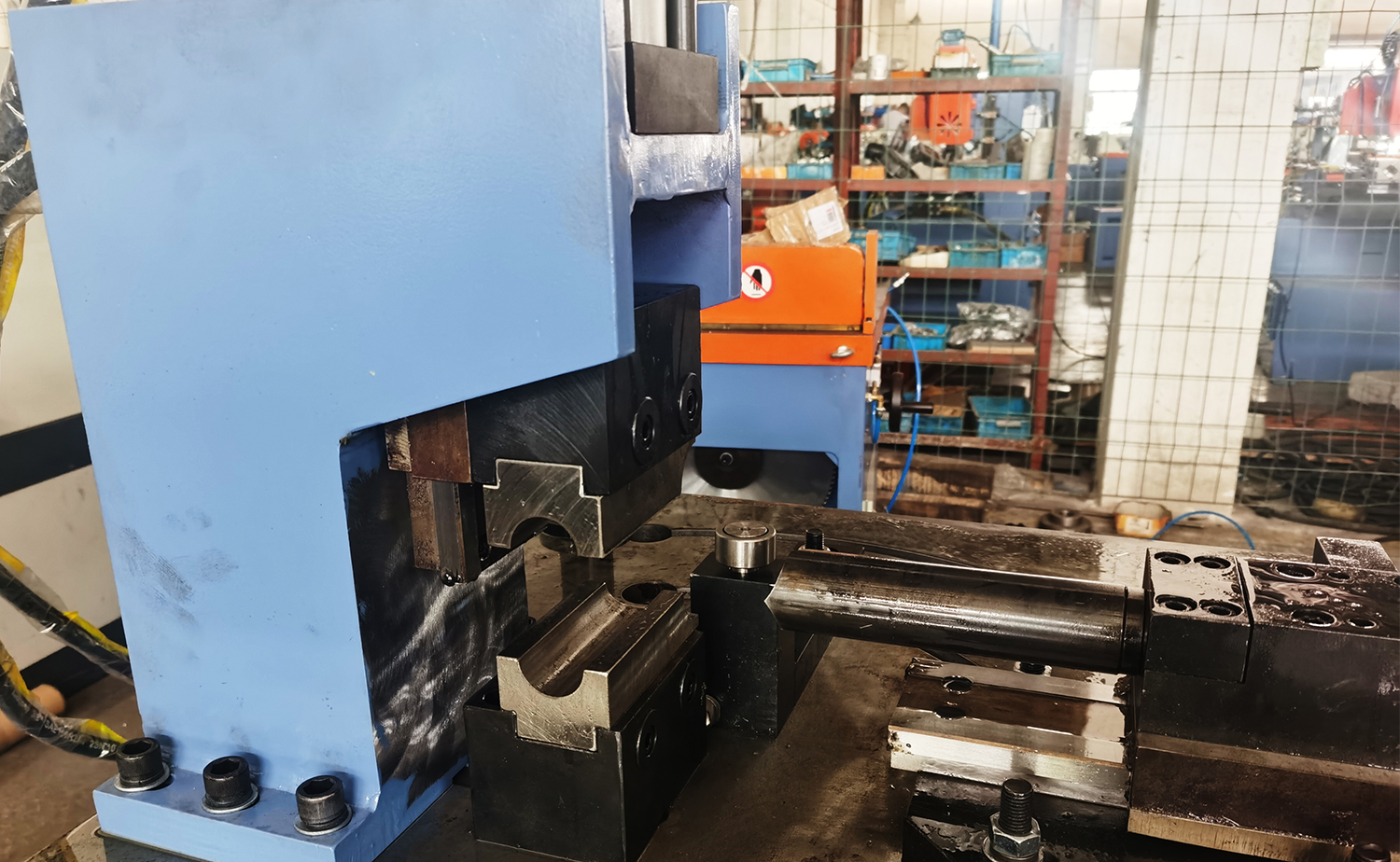

CH50 Tube Notching Machine
Back
Features
Basic Parameters
Video
Industry Applications
Contact Us
Features
1.The Tube Arc Punching Machine features automatic clamping and punching functions, driven by a powerful hydraulic system, ensuring efficient and consistent operation.
2.Compatible with a wide range of materials, including carbon steel, stainless steel, copper, aluminum, and more, making it versatile for various applications.
3.The machine is designed to accommodate different arc punching angles, providing flexibility to meet the unique requirements of each customer.
4.Equipped with manual, automatic, and emergency operation modes, this machine prioritizes operator safety, offering multiple levels of control for secure usage.
5.High-quality mechanical components guarantee stable and reliable performance, ensuring long-lasting durability and minimized downtime.
6.User-friendly controls make the machine easy to operate, while its low noise output enhances the work environment for operators.
Parameter table
Main Technical Parameter
| Name | CH-50 | CH-80 |
| Max. Punching Capacity | Φ48×2.0mm | Φ80×3.5mm |
| Punching Angle Region | 15-180degree | 15-180degree |
| Punching Time | 3-4S | 6-8S |
| Max. Hydraulic Pressure | 14 Mpa | 14 Mpa |
| Motor Power | 5.5KW | 7.5KW |
| Machine Dimension | 1600x1000x1650mm | 1600x1400x1650mm |
| Machine Weight | 980KGS | 1500KGS |
