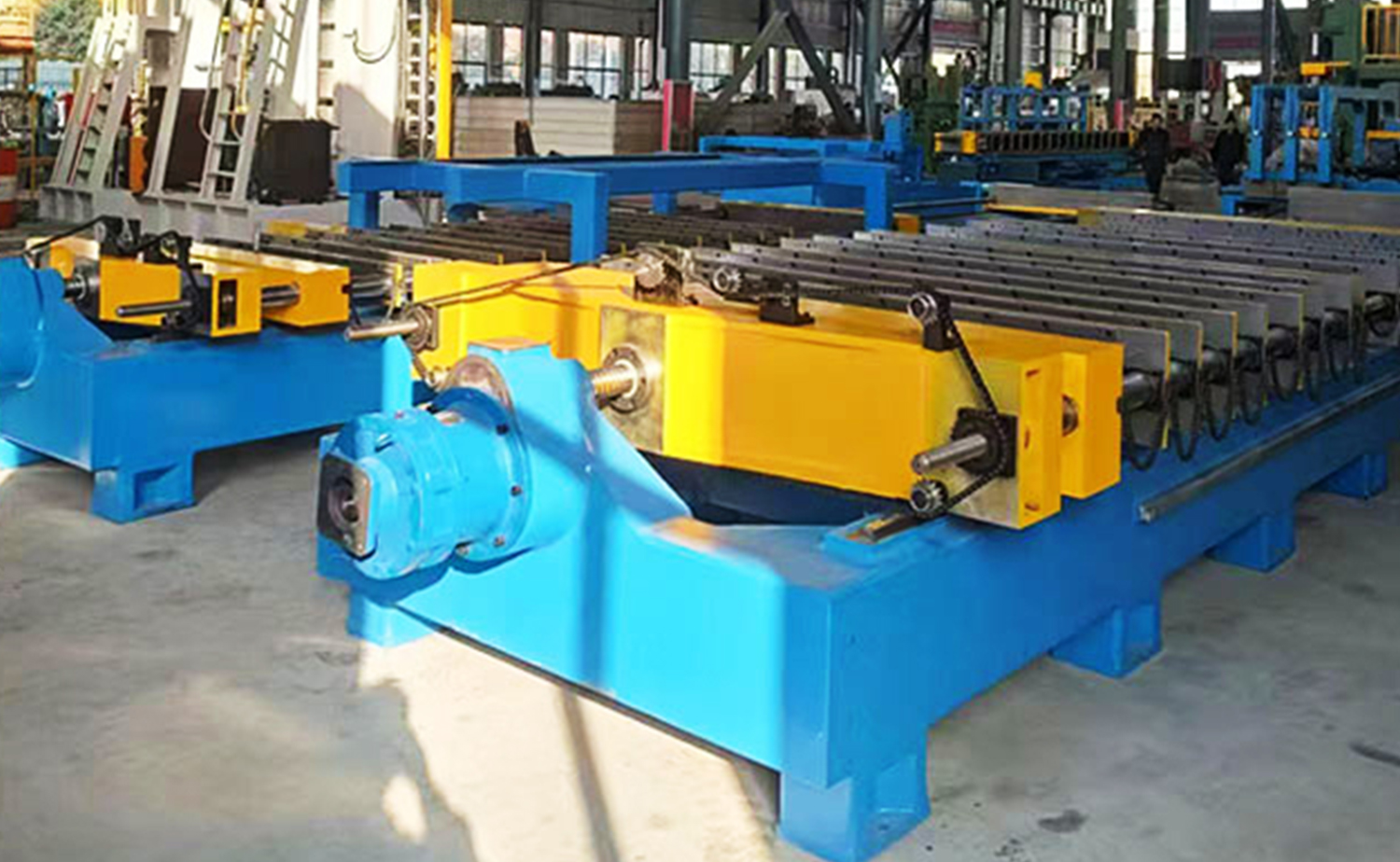

3500 Servo Type Horizontal Expander
Back
Features
Basic Parameters
Video
Industry Applications
Contact Us
Features
Structure and Design：The horizontal gantry design allows automatic opening and closing for easy tube loading and unloading.
Drive and Control：A servo motor and ball screw drive control tube expanding and flaring, with settings adjustable via a touchscreen.
Operation Modes：Offers both manual and automatic modes, with adjustable speeds for expanding and flaring.
Automation：Fully automated production cycle for consistent and smooth operation.
Quick Setup：Product parameters and model storage enable fast changeovers and minimal downtime.
Frame and Stability：The high-rigidity frame ensures long-term accuracy and operational stability.
Length Adjustment：Servo-driven length adjustment with automatic positioning and locking of the U-shaped support.
Safety and Ejection：Includes automatic workpiece ejection and a safety locking system for secure operation.
Precision and Durability：Linear guide rails provide precise mold movement and high load capacity for reliable performance.
Maintenance：Automatic lubrication and air storage tank for smooth operation and easy maintenance.
Expansion Rod Monitoring：Features a high-strength expansion rod, anti-bending design, and automatic deformation monitoring with alarms.
Parameter table
Main Technical Parameter
| Item | 5/8'' 3500 Servo Type | 3/8'' 3500 Servo Type |
| Parameter | Ф15.88mm X 50 Pitch X 43.3 Row Distance X 6 Rows X 36 Holes | Ф9.52mm X 25 Pitch X 21.65 Row Distance X 6 Rows X 8 Holes |
| Coil height | 200～3500 mm | 200～3500 mm |
| Nozzle height A (mm) | 13-20 | 13-20 |
| Collar height B (mm) | 2.5 | 1.5 |
| Flaring length C (mm) | 7 | 6 |
| Collar angle K (°) | 60 | 60 |
| Bullet diameter D1 (mm) | ||
| Flaring diameter D2 (mm) | 16 | 9.68 |
| Upper clapboard height H1 (mm) | ≤30 mm | ≤30 mm |
| Lower clapboard height H2 (mm) | ≤60 mm | ≤60 mm |
| Boarder Spacing E, F (mm) | ≤50 mm | ≤50 mm |
| Tube thickness | 0.5 - 0.8 mm | 0.28 - 0.5 mm |
| Expand Type | Servo Motor Drive | Servo Motor Drive |
| Tube type | Hairpin U, Hairpin U+Straight | Hairpin U, Hairpin U+Straight |
| Independent flaring system, much better than scan type. | ||
