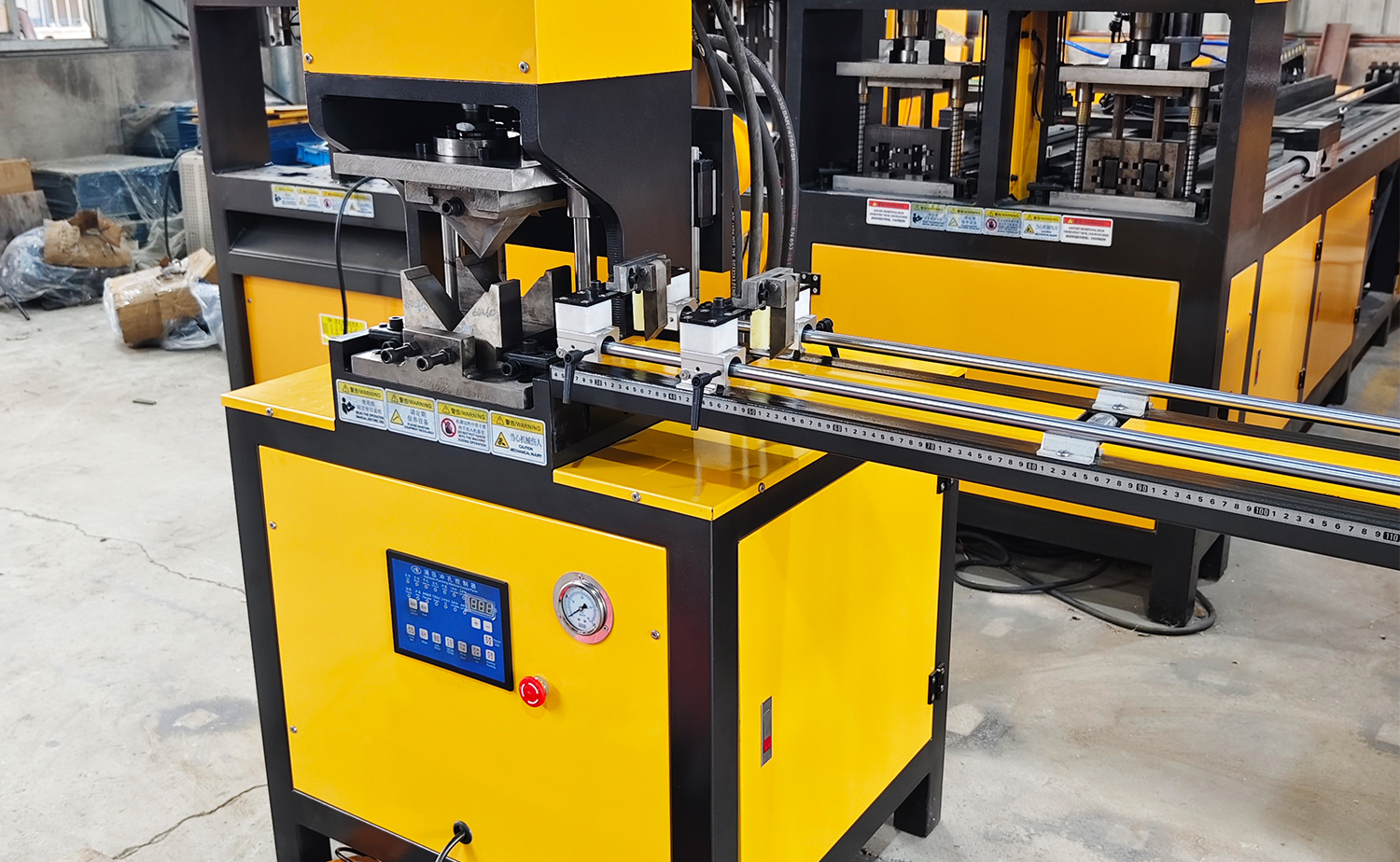

HS-P-100-2P Semi-automatic Punch Machine
Back
Features
Basic Parameters
Video
Industry Applications
Contact Us
Features
The CNC Automatic Single Cylinder Hydraulic Punching Machine is an advanced automated solution designed for high-precision punching operations. Powered by a robust hydraulic system, this machine excels in perforating various types of pipes, including steel, stainless steel, iron, and aluminum alloys. It is engineered to create precise holes in an array of shapes and sizes, meeting diverse manufacturing requirements.
Equipped with an automatic feeding mechanism, the machine ensures seamless material handling. Once the pipe is loaded into the punching molds, it is fed automatically based on the pre-programmed distance, with the system precisely punching holes along the pipe at designated intervals. Key parameters such as pipe length, hole quantity, and hole spacing are easily configured via the PLC control system, which is accessible through a multi-language touch screen interface.
This machine is especially favored by manufacturers of rack shelving systems worldwide, thanks to its efficiency, accuracy, and ease of use. It offers an ideal solution for businesses seeking reliable, high-volume punching capabilities with minimal operator intervention.
Parameter table
Main Technical Parameter
| Model | HS-P-100-2P |
| Control | CNC/Automatic Feeding |
| Feeding Accuracy | ±0.15 mm |
| Punching Mold Accuracy | ±0.01 mm |
| Hole Size Accuracy | ±0.10 mm |
| Driven Power | Hydraulic |
| Hydraulic Oil Tank | 160 L |
| Hydraulic Cooling System | Yes |
| Cylinder Inner Diameter: | 100 mm |
| Max. Hydraulic Pressure | 15 MPA |
| Max. Punching Force | 12Tons |
| Max. Material Thickness | 2.0 mm |

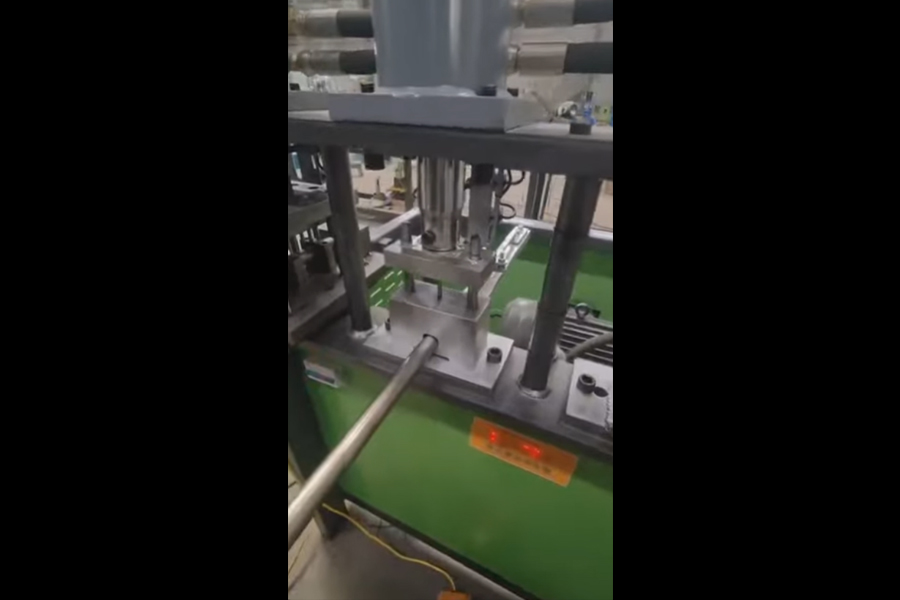

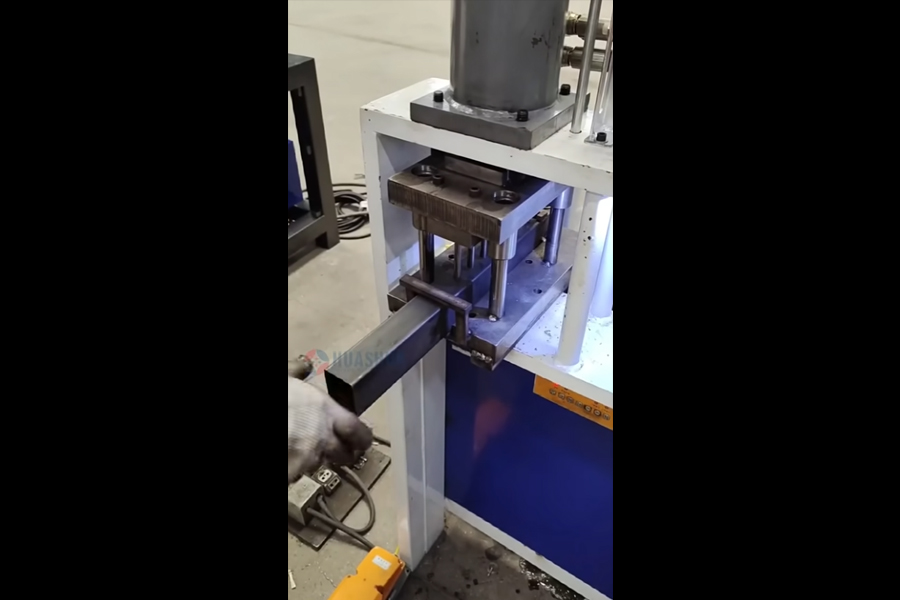

Video
