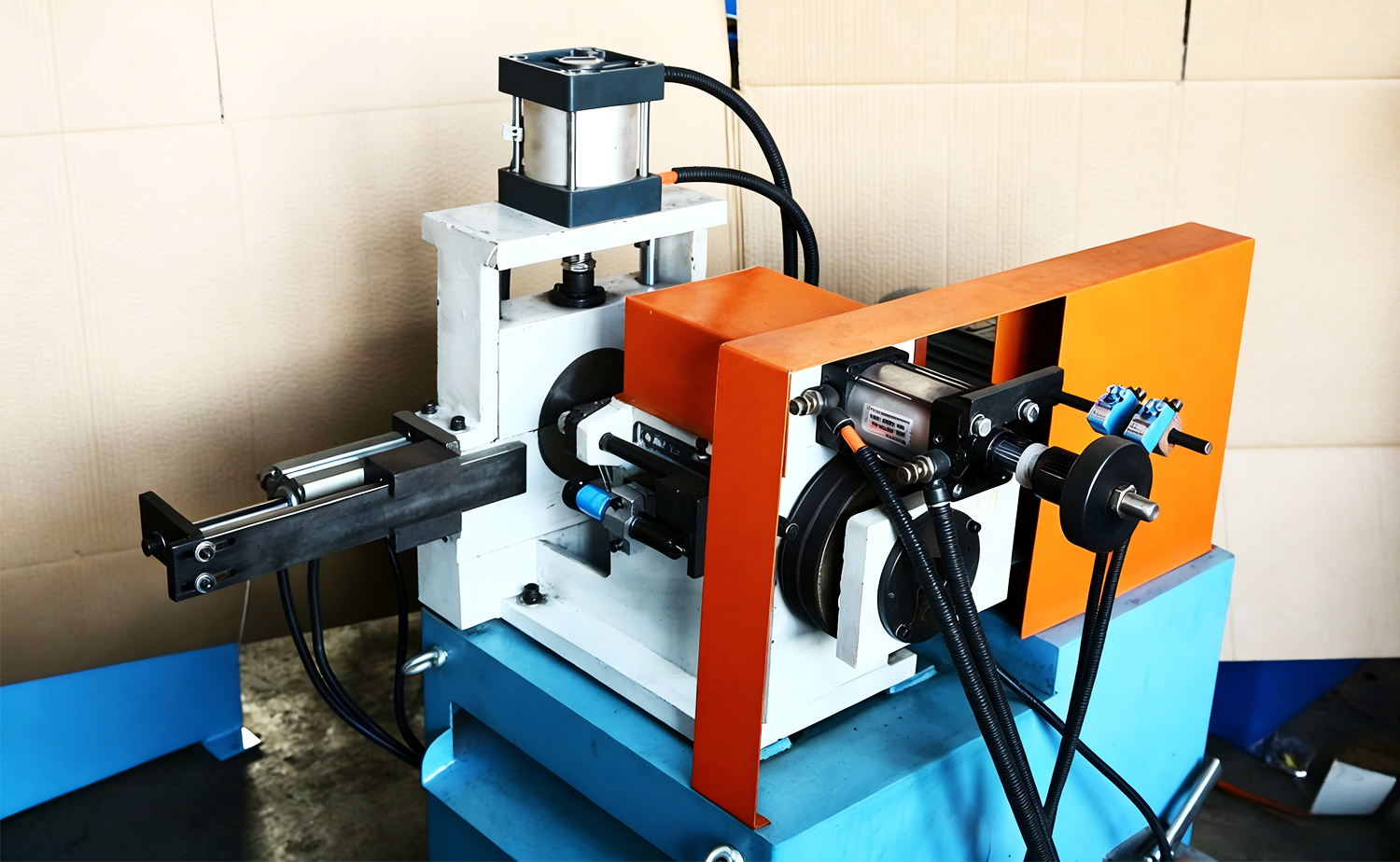

EF AC Series High Precision Single Head Tube Chamfering Machine
Back
Features
Basic Parameters
Video
Industry Applications
Contact Us
Features
1.This semi-automatic machine features manual feeding and fully automated chamfering, making it an efficient solution for various tube processing tasks.
2.Chamfering can be performed on one side (flat face), two sides (internal and external), or three sides (flat, internal, and external), allowing for customization based on your specific requirements.
3.Suitable for processing materials such as carbon steel, stainless steel, copper, and aluminum, this machine provides flexibility for a wide range of industries.

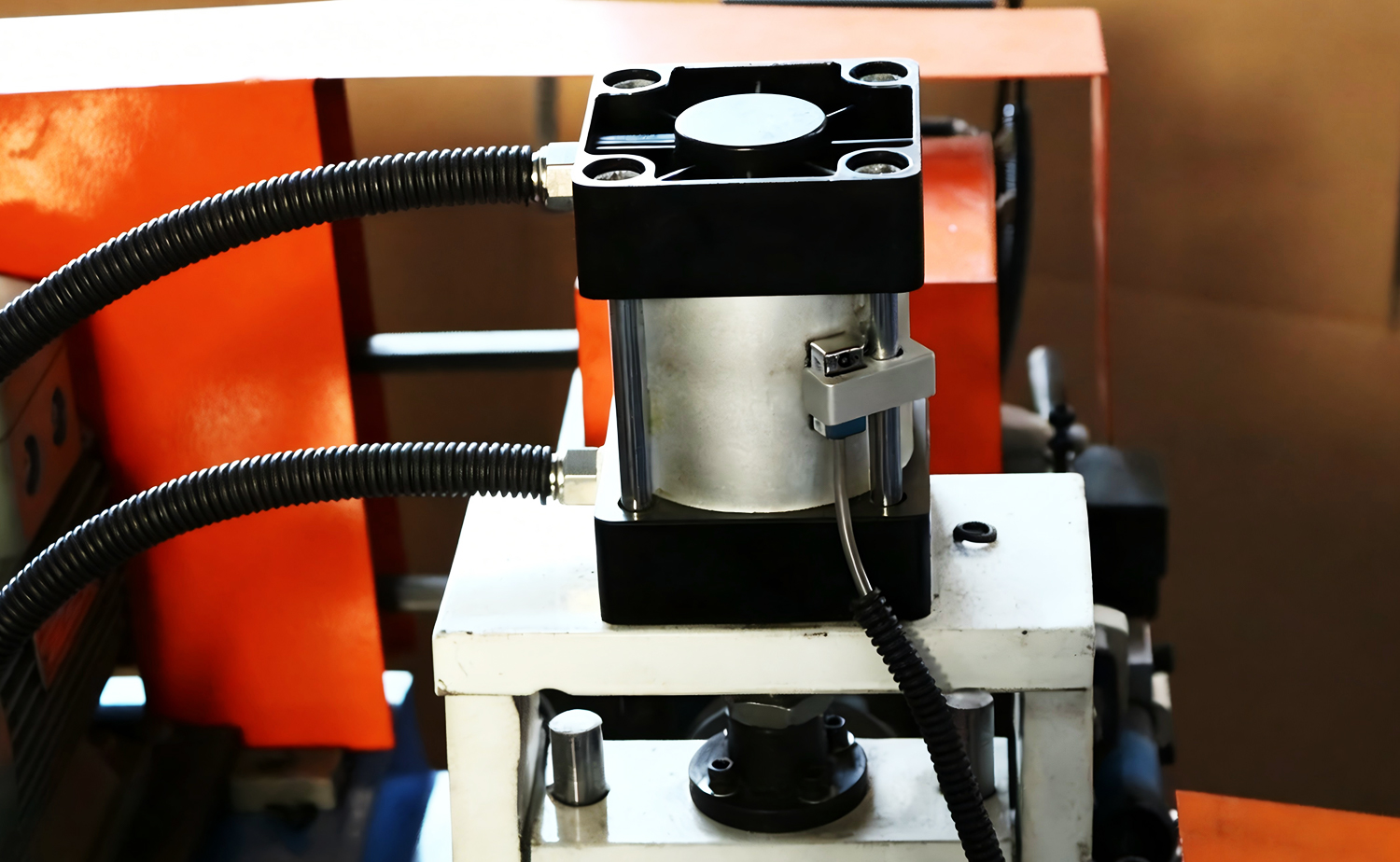

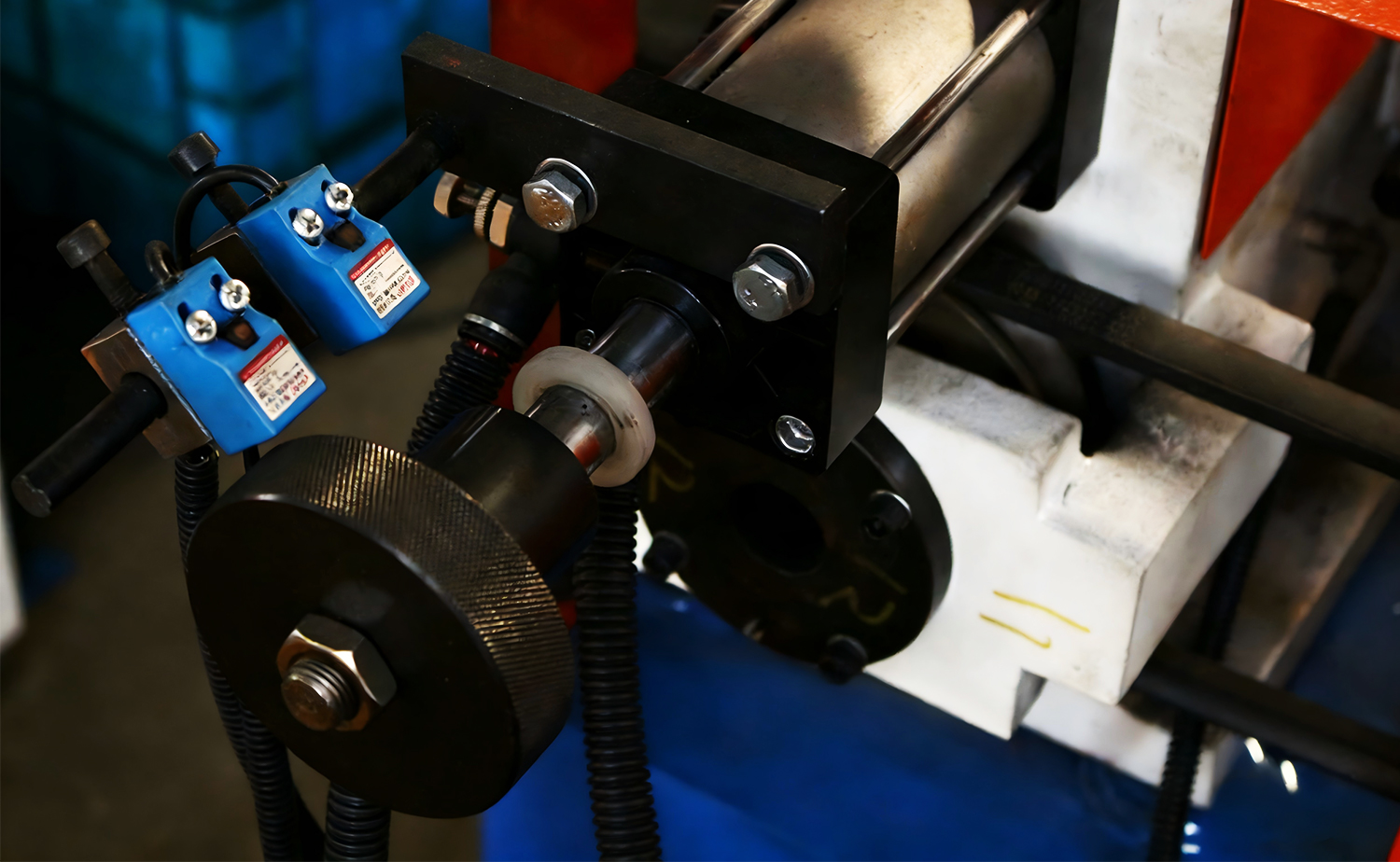

4.The chamfering knife's forward and backward motion, along with the entire chamfering process, is pneumatically driven, ensuring smooth and precise operation.
5.The chamfering procedure is completed in a single cycle, achieving high-speed processing without compromising on the accuracy of the chamfered edges.
6.Both the clamp and knife holder are engineered with high precision to ensure the workpiece and knife holder are perfectly aligned, guaranteeing consistent, accurate chamfering results.
Parameter table
Main Technical Parameter
| Name | EF-60AC | EF-80AC |
| Main Motor Power | 0.75 KW | 2.2 KW |
| Chamfering Capacity | Pipe Diameter:Φ8—Φ60mm | Pipe Diameter:Φ8—Φ80mm |
| Bar Diameter:Φ6—Φ12mm | Bar Diameter:Φ5—Φ20mm | |
| Processing Length | ≥50mm | ≥35mm |
| Processing Accuracy | ±0.1mm | ±0.1mm |
| Standard Knife Plate | One Set | One Set |
| Chamfering Speed one time | 3-5 S | 3-5 S |
| Control Method | Pneumatic | Pneumatic |
| Machine Size(estimate) | 700x900x1200mm | 1000x900x1400mm |
