Double Head Automatic Pipe Threading Machine
Back
Features
Basic Parameters
Video
Industry Applications
Contact Us
Features

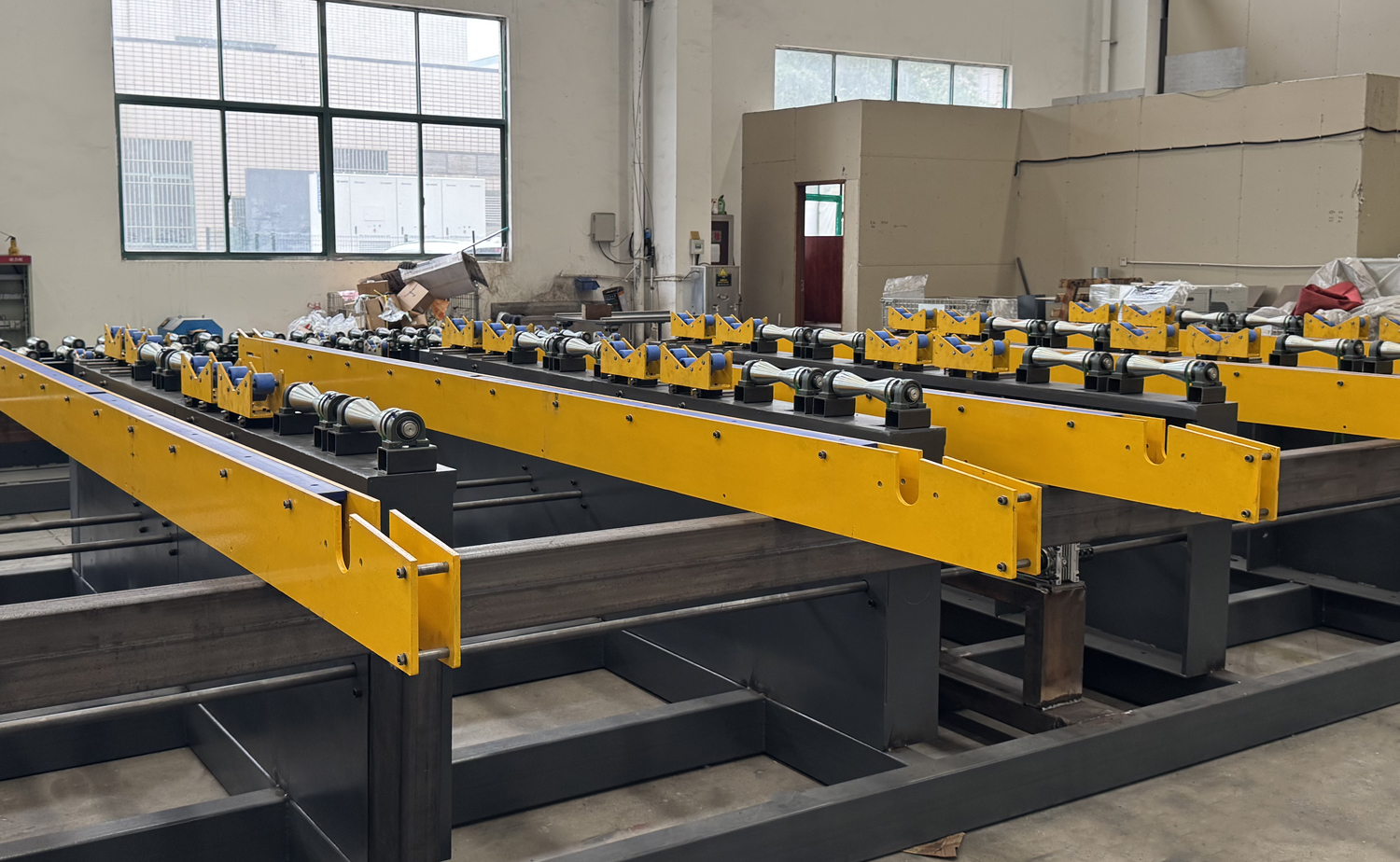

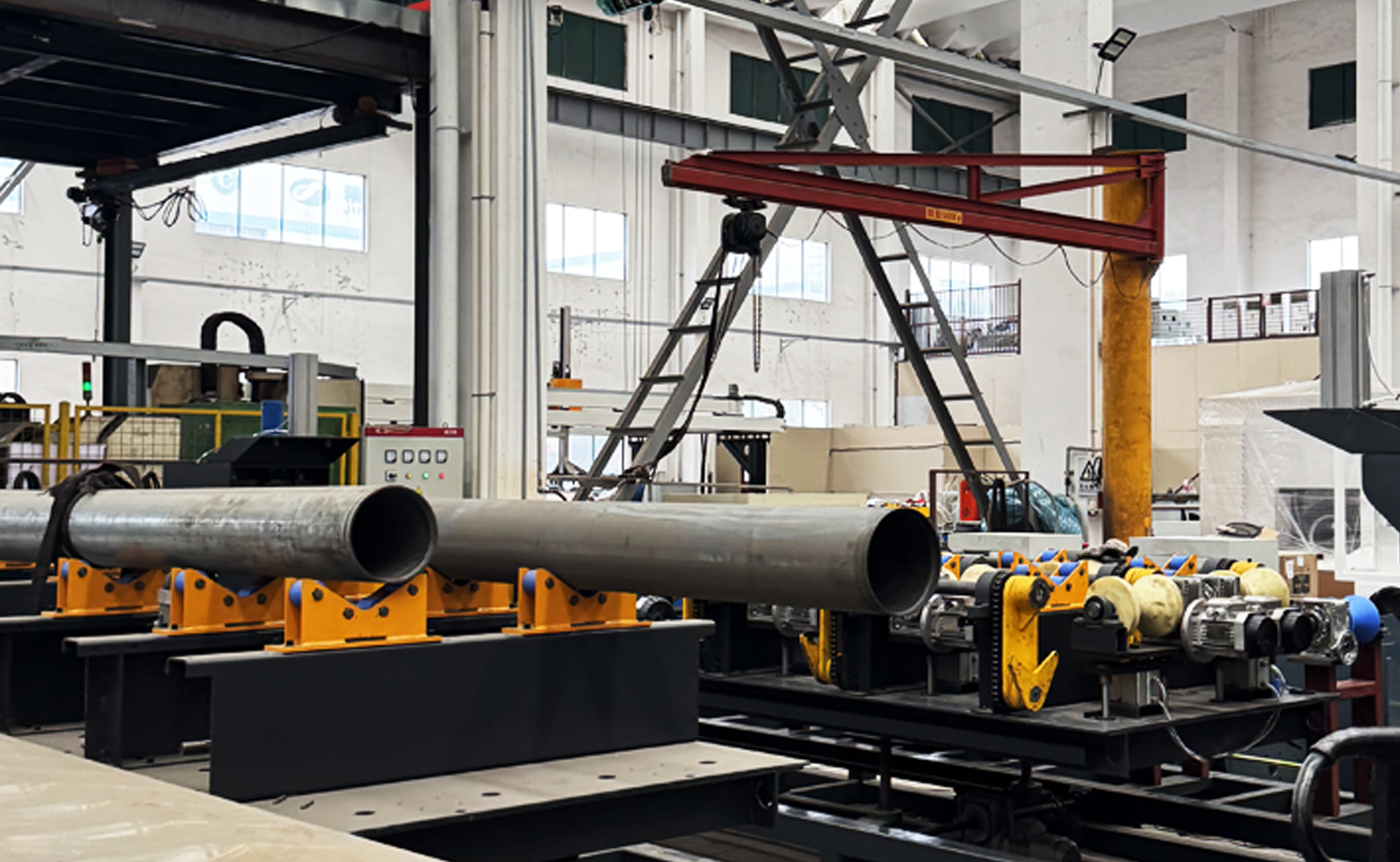

The double-head grooving machine by Huashuntech Machinery Co., Ltd. is a cutting-edge, high-performance pipe processing tool. Engineered for precision and efficiency, it features a material rack, an advanced feeding system, a translation mechanism, and a precise grooving unit. This machine is specifically crafted to address the grooving requirements of various pipe types, offering exceptional versatility. It is ideal for industries that demand fast, high-quality grooving operations, significantly enhancing both production efficiency and the overall quality of processed pipes.
Parameter table
Main Technical Parameter
| Model | HTDTS-50A | HTDTS-65A | HTDTS-80A | HTDTS-100A |
| Processing Range | 21mm-60mm | 21mm-76mm | 21mm-89mm | 21mm-114mm |
| Pipe Length Range | 1200mm-6000mm | 1200mm-6000mm | 1200mm-6000mm | 1200mm-6000mm |
| Rated Voltage | 380V 50HZ | 380V 50HZ | 380V 50HZ | 380V 50HZ |
| Equipment Dimensions(LxWxH) | 8400x4000x1600mm | 8400x4000x1600mm | 8400x4000x1600mm | 8400x4000x1600mm |
| Spindle Servo Motor Power | 5.5KW*2 | 5.5KW*2 | 5.5KW*2 | 5.5KW*2 |
| Thread Varieties | PT NPT | PT NPT | PT NPT | PT NPT |
| Rated Power | 20KW | 20KW | 20KW | 20KW |
| Equipment Weight | 6400KG | 6400KG | 6400KG | 6400KG |
| Hydraulic Pressure | 3.5MPa | 3.5MPa | 3.5MPa | 3.5MPa |
| Application | Pipe Threading | Pipe Threading | Pipe Threading | Pipe Threading |

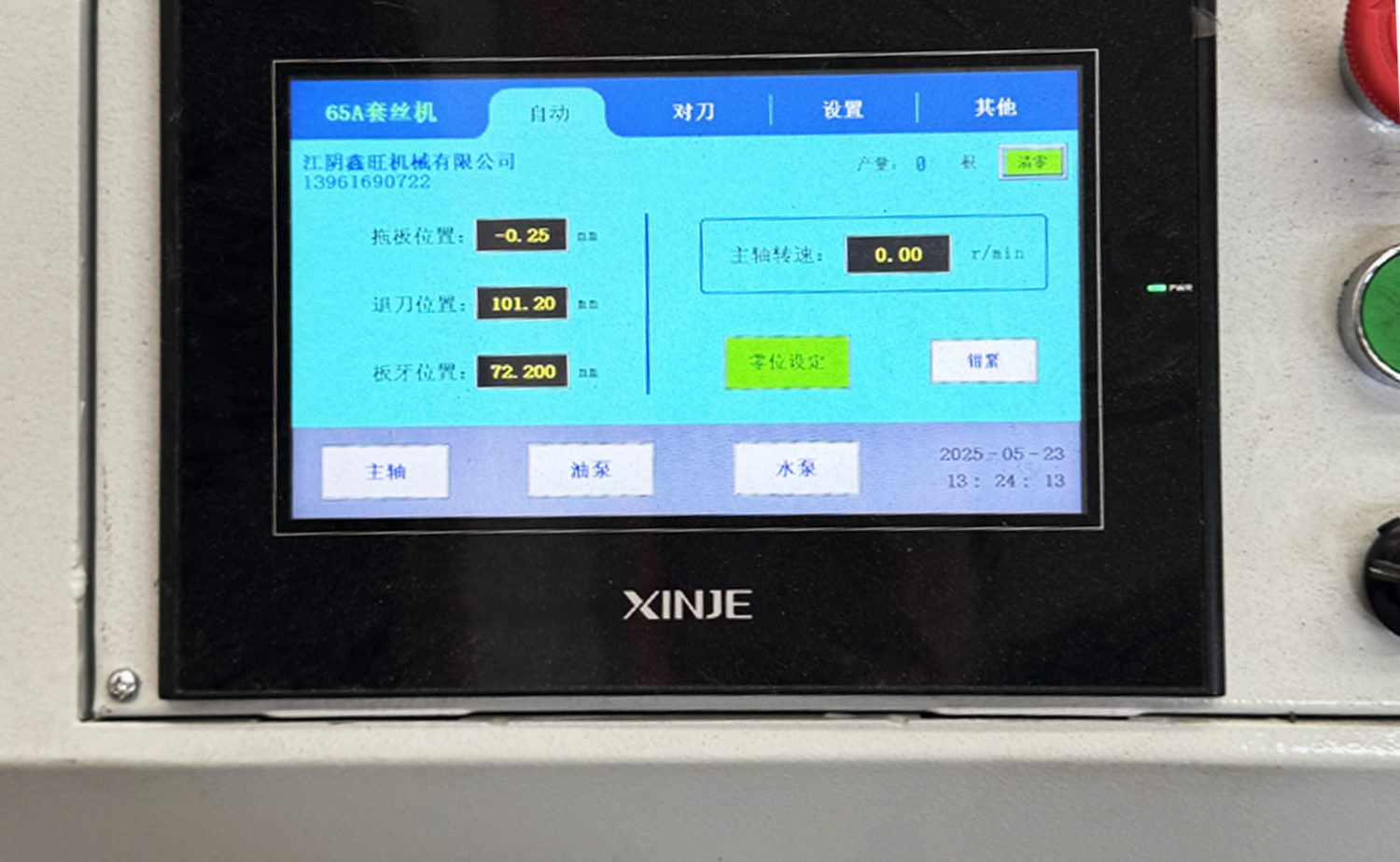

| Human Machine Interface | Chinese,English | Chinese,English | Chinese,English | Chinese,English |
