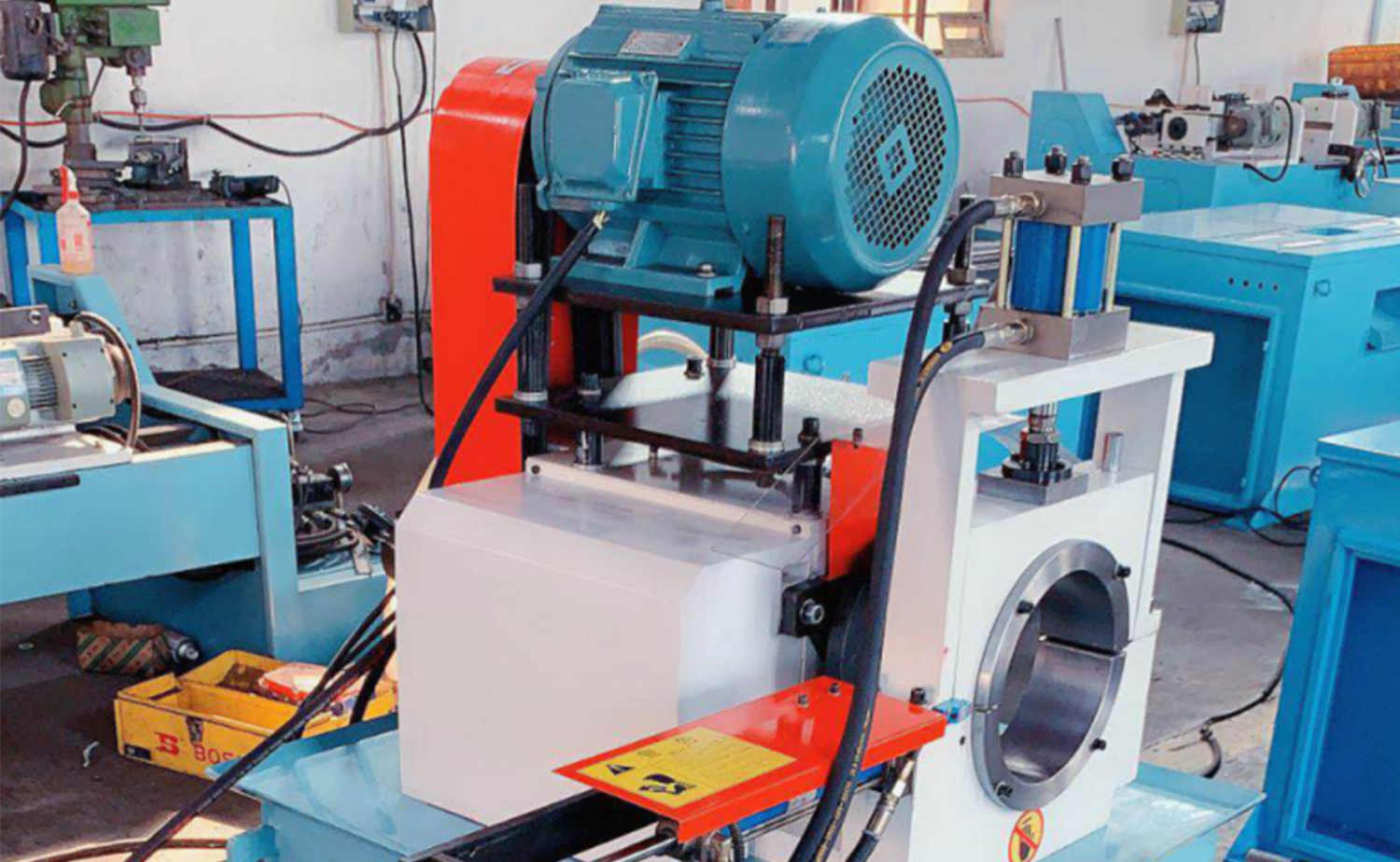

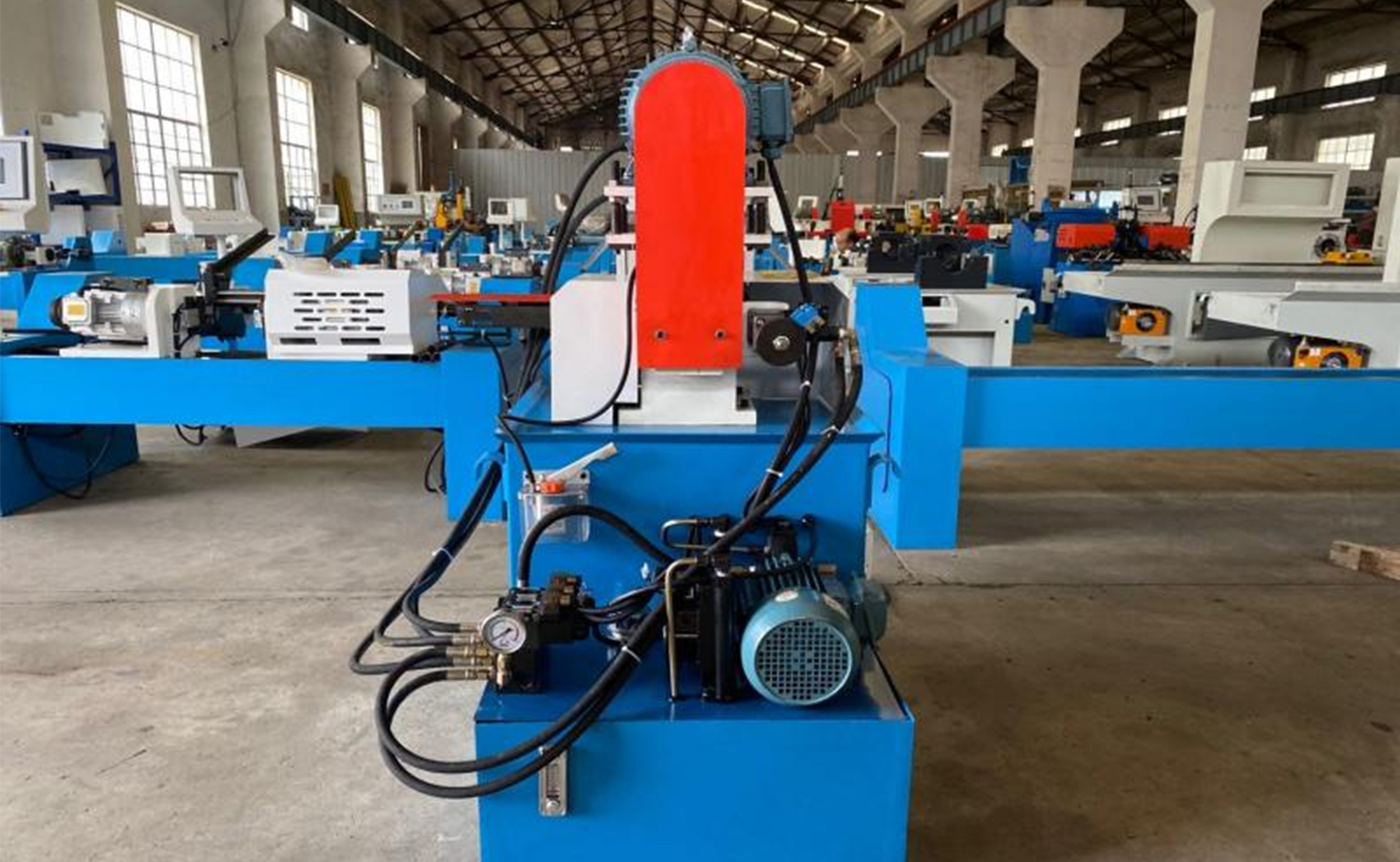

EF PV2 Series Single Head Tube Chamfering Machine for Metal Tubes
Back
Features
Basic Parameters
Video
Industry Applications
Contact Us
Features
1.This semi-automatic machine offers manual feeding and hydraulic-powered automatic chamfering, providing an efficient and reliable solution for tube processing.
2.Chamfering can be done on one side (flat face), two sides (internal and external), or three sides (flat, internal, and external), depending on your specific requirements.
3.It supports a wide range of materials, including carbon steel, stainless steel, copper, aluminum, and more, making it adaptable to various industrial applications.

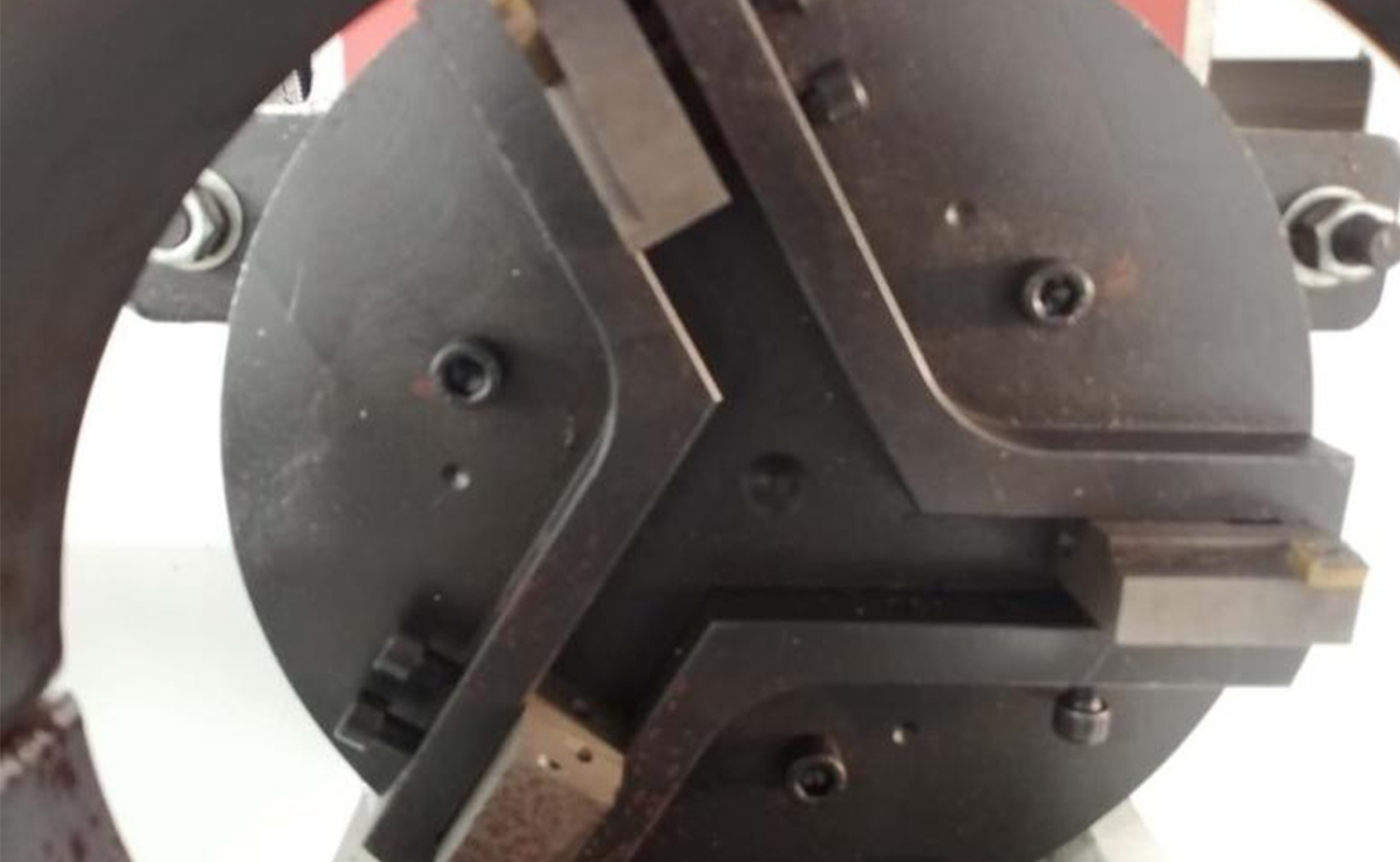

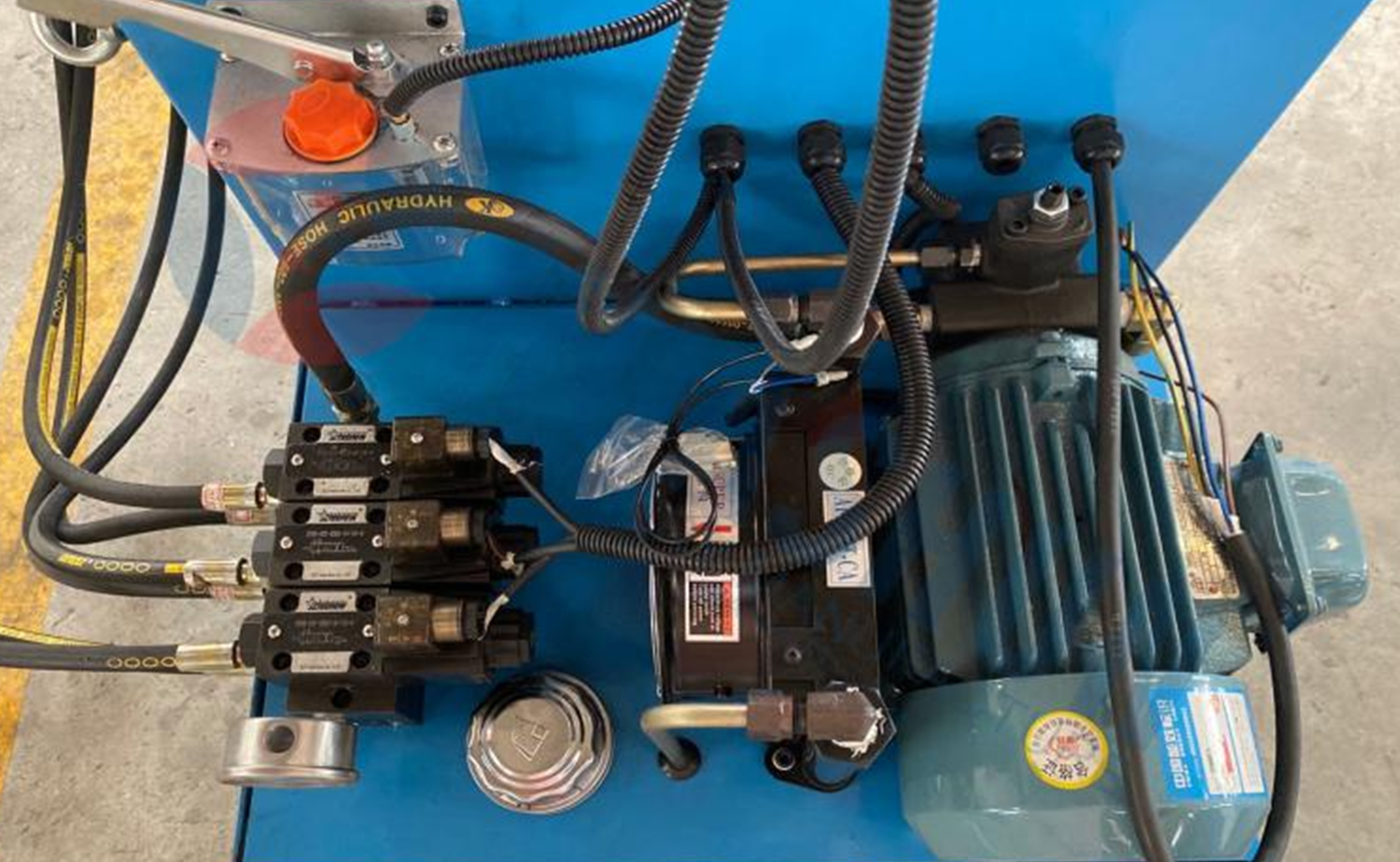

4.The machine’s chamfering knife moves automatically forward and backward, with the chamfering action fully controlled by hydraulics for smooth and efficient performance.
5.The chamfering process is completed in a single operation, delivering high-speed results with exceptional accuracy to meet the tightest chamfering tolerances.

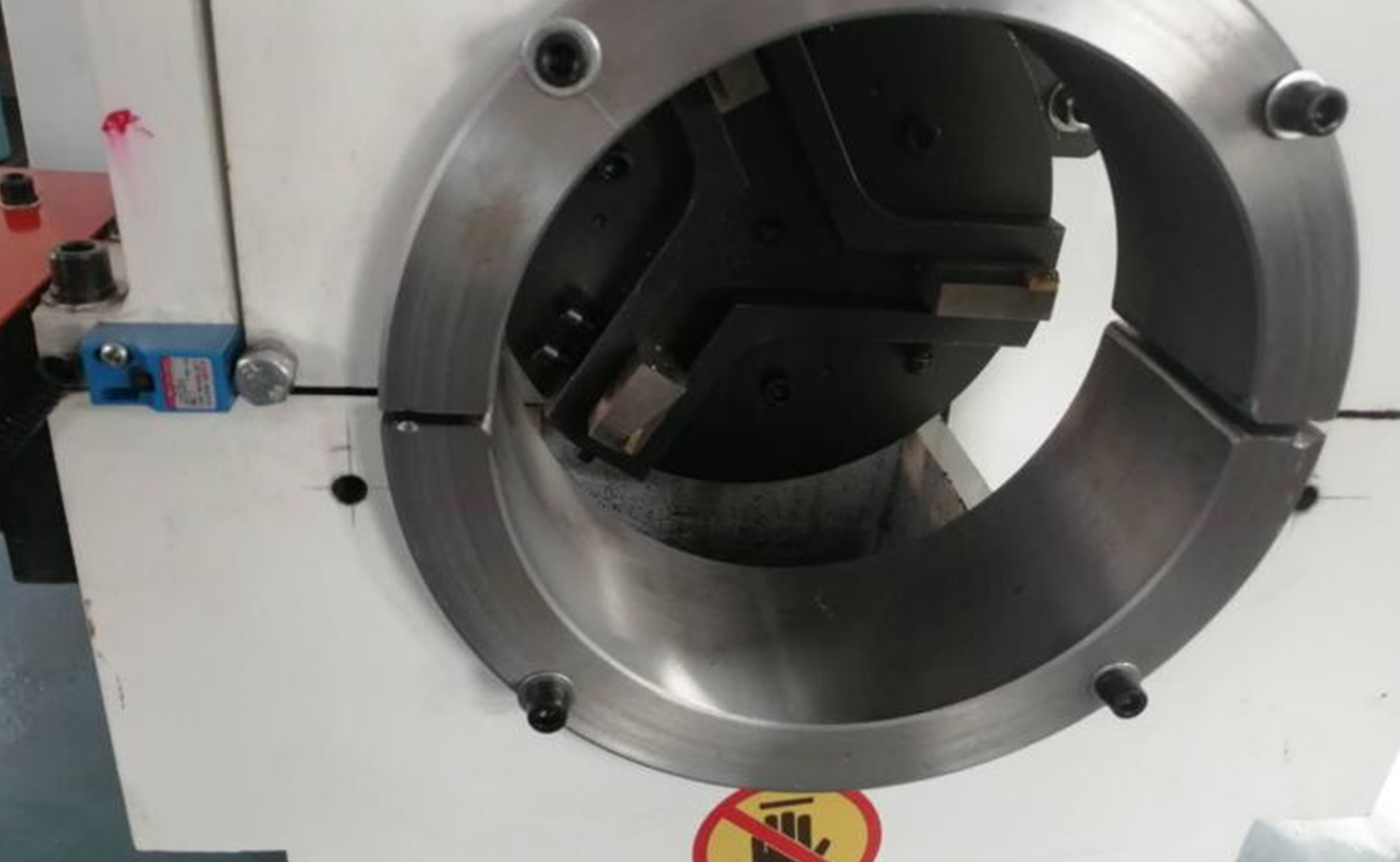

6.The clamp and knife holder are meticulously designed to ensure the workpiece and knife holder are perfectly aligned, allowing for precise and consistent chamfering.
Parameter table
Main Technical Parameter
| Name | EF-180PV | EF-230PV | EF-300PV |
| Main Motor Power | 4 KW | 5.5 KW | 5.5 KW |
| Pipe Diameter:Φ20—Φ180mm | Pipe Diameter:Φ50—Φ230mm | Pipe Diameter:Φ90—Φ280mm | |
| Chamfering Capacity | Pipe Thickness:2-12mm | Pipe Thickness:2-15mm | Pipe Thickness:2-18mm |
| Processing Length | ≥150mm | ≥160mm | ≥180mm |
| Processing Accuracy | ±0.1mm | ±0.1mm | ±0.1mm |
| Standard Knife Plate | One Set | One Set | One Set |
| Control Method | Hydraulic | Hydraulic | Hydraulic |
| Machine Size | 1200mm×1400mm×1600mm | 1200mm×1600mm×1700mm | 1400mm×1600mm×1850mm |

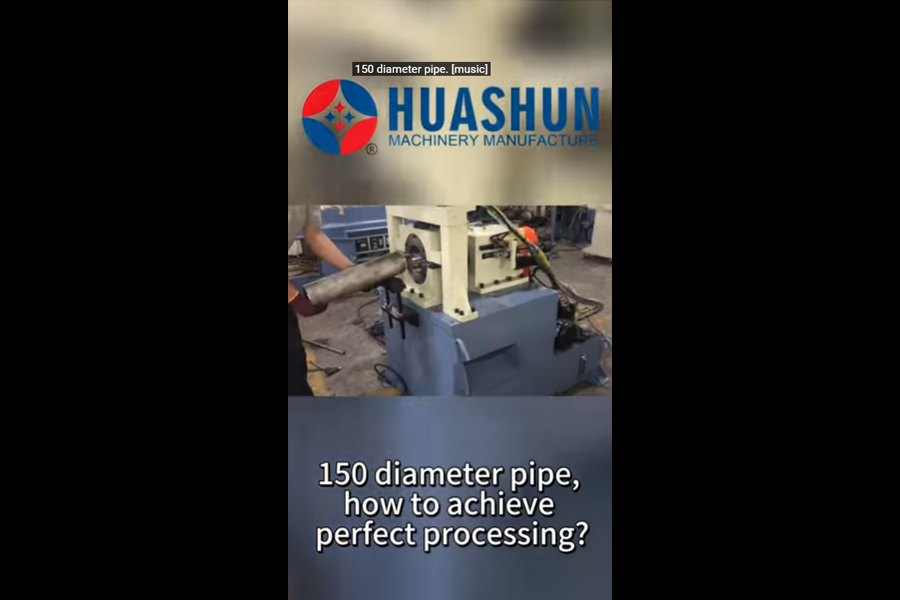

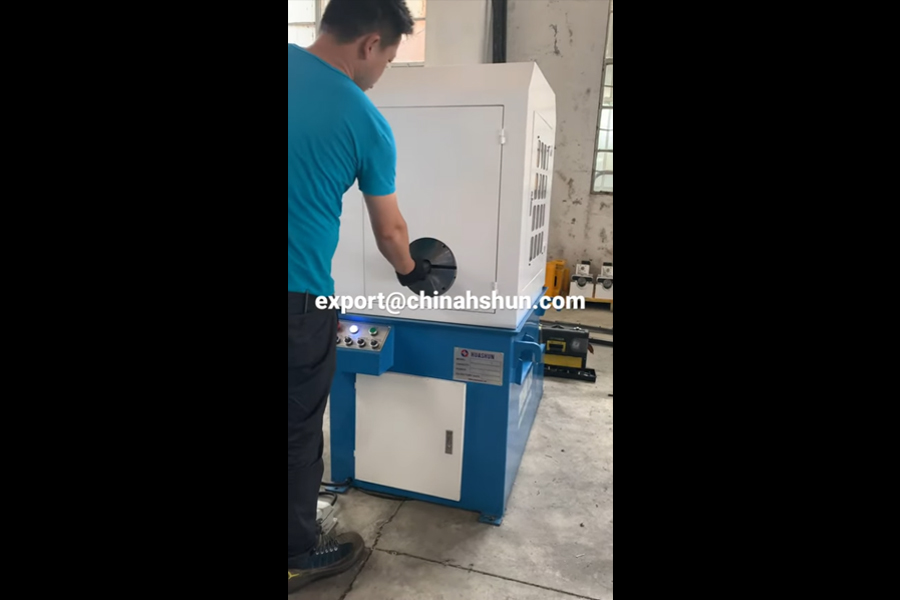

Video
