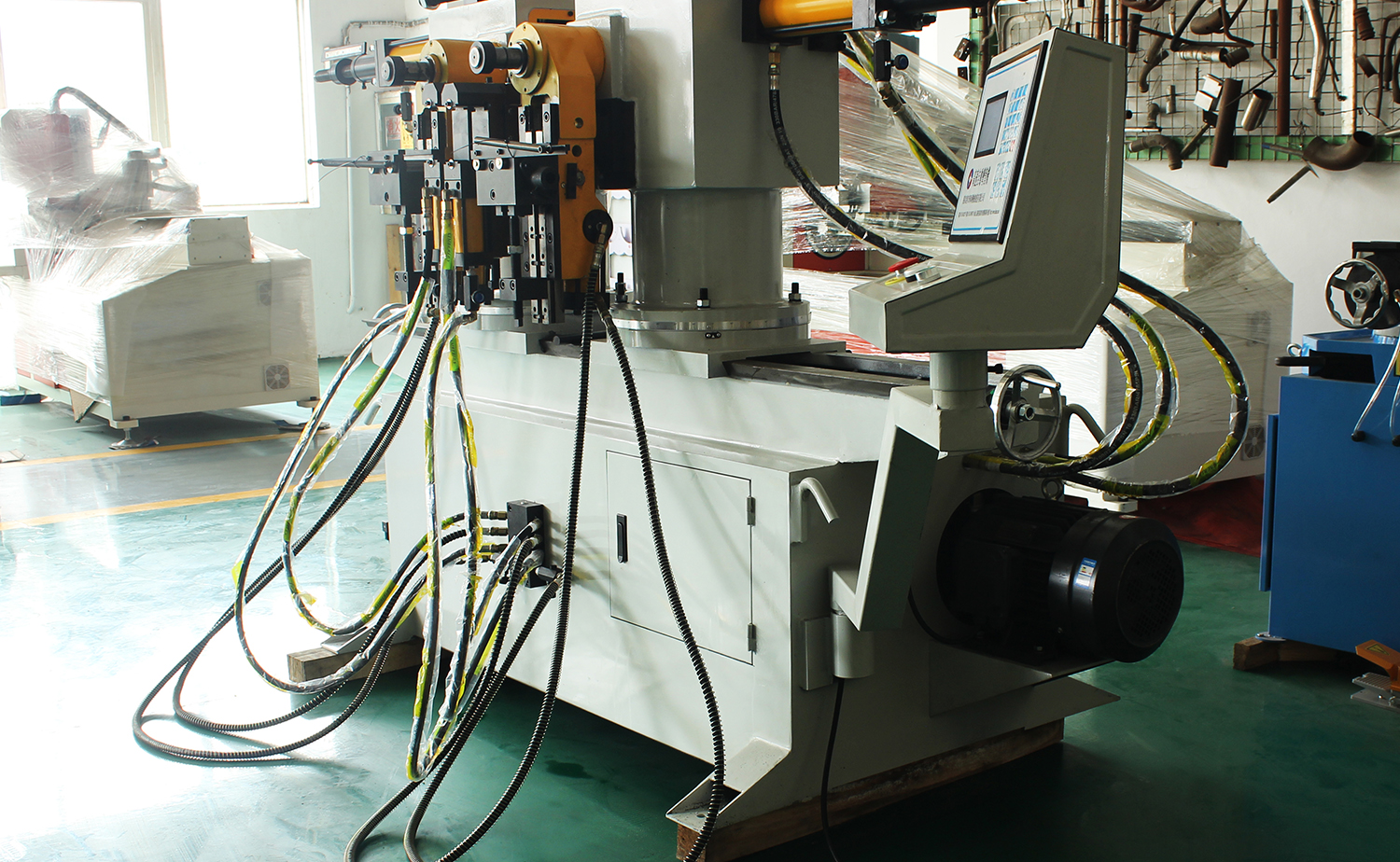

Rotary-Type Twin Head Multi-Bending Pipe Machine
Back
Features
Basic Parameters
Video
Industry Applications
Contact Us
Features
Operation Modes：The machine provides easy switching between automatic and manual modes, allowing flexibility for different production needs.

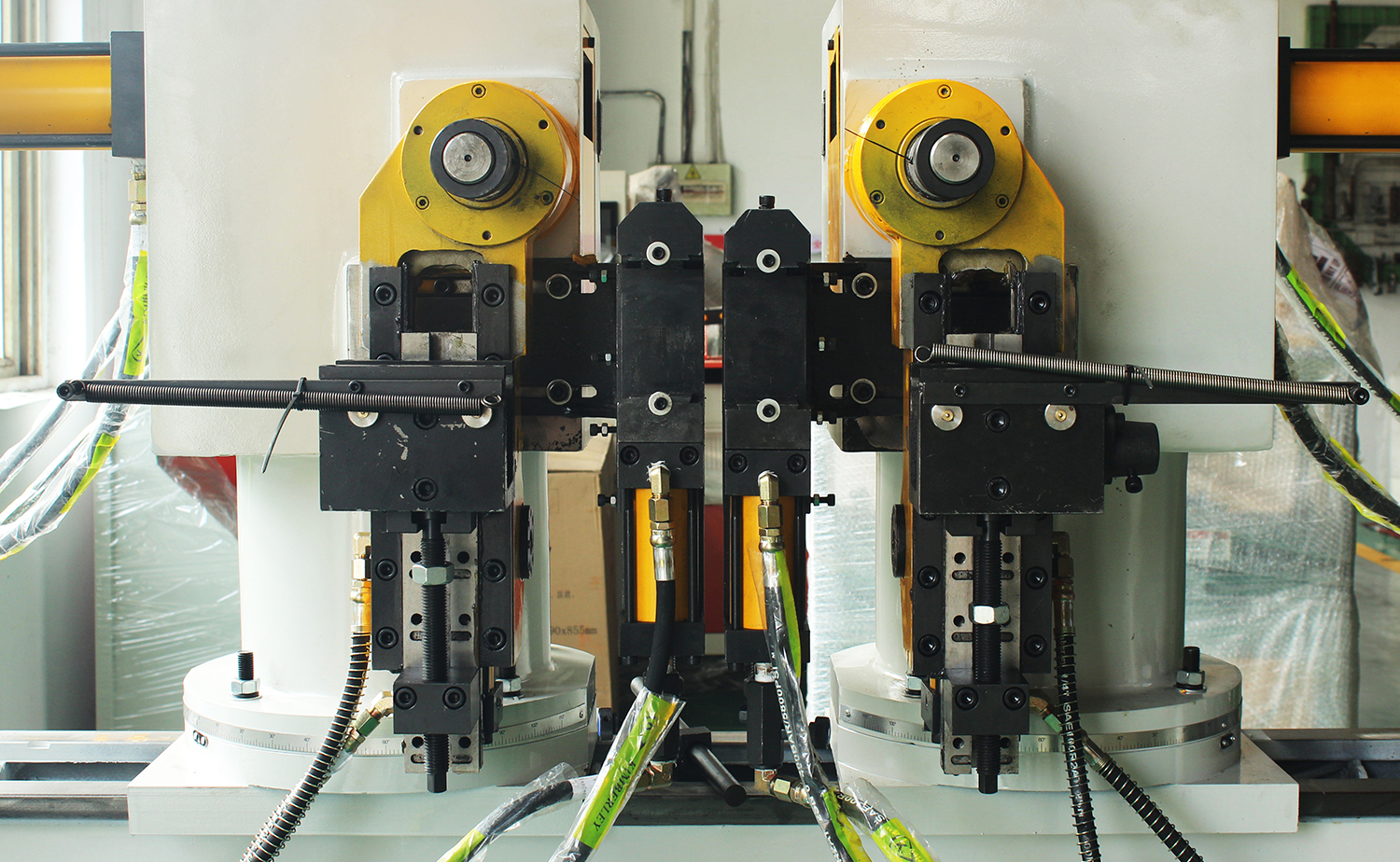

Rotating Machine Head：The machine head is rotatable, offering versatility for various bending tasks.
Production Capability：It supports symmetric mass production on both sides, and can be configured with either a standard or rotary base frame.
Stability and Adjustment：The left and right cabinets enhance machine stability, while the bending shaft center is easily adjustable for precise alignment.
Dual-Head Function：The double-head system can operate independently, further increasing production flexibility.
Efficiency：Capable of bending 2, 4, 6, or 8 tubes simultaneously, boosting production efficiency significantly.
Certifications：CE and ISO9001 certified for quality assurance.
Parameter table
Main Technical Parameter
| Model | DB38NC | DB38NC90 | DB50NC | DB50NC90 |
| Max Bending Capacity | Φ38 x 2.0 mm | Φ38 x 2.0 mm | Φ50 x 2.0 mm | Φ50×2.0 mm |
| Max Bending Radius | 200 mm | R38-200 mm | 300 mm | R300 mm |
| Range of Double Bending Center | 140-1600 mm (extensible) | 140-1600 mm (extensible) | 200-1800 mm | 200-1800 mm |
| Max Bending Degree | 190° | 190° | 190° | 190° |
| Max Pressure | 12 MPa | 12 MPa | 14 MPa | 14 MPa |
| Motor Power | 5.5 kW | 5.5 kW | 7.5 kW | 7.5 kW |
| Machine Weight | 1500 kg | 1680 kg | 2000 kg | 2180 kg |
| Machine Size | 3100×1100×1250 mm | 3100×1150×1550 mm | 3400×1200×1250 mm | 3400×1200×1550 mm |

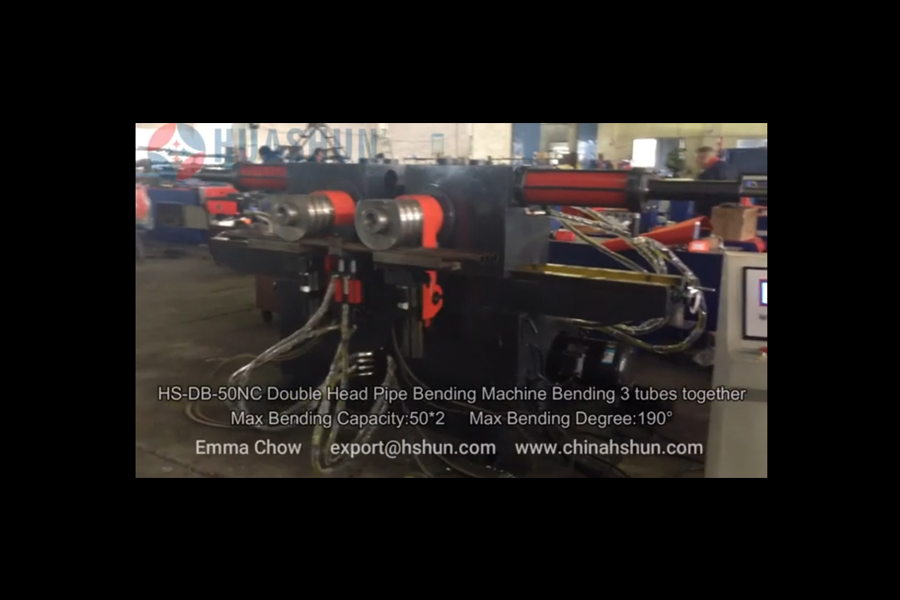

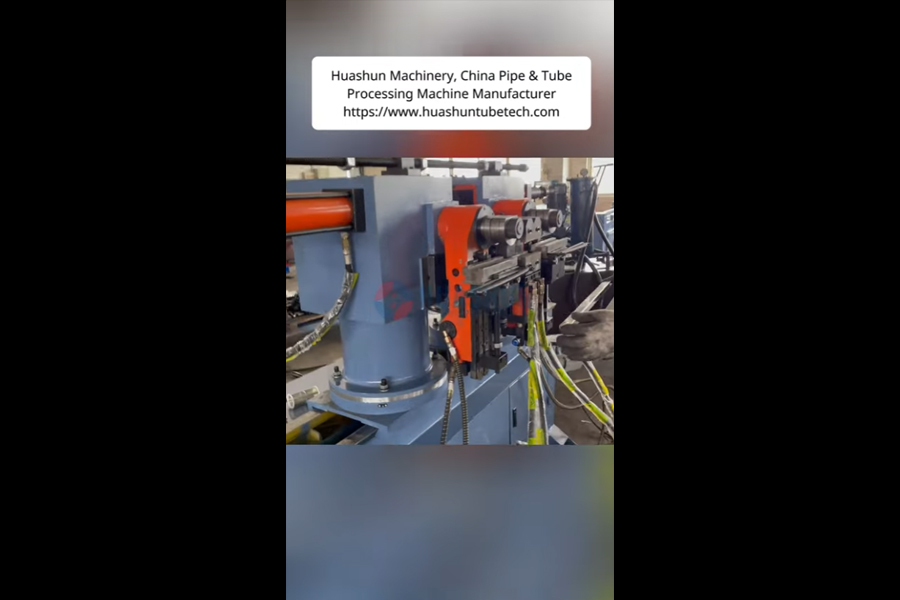

Video
