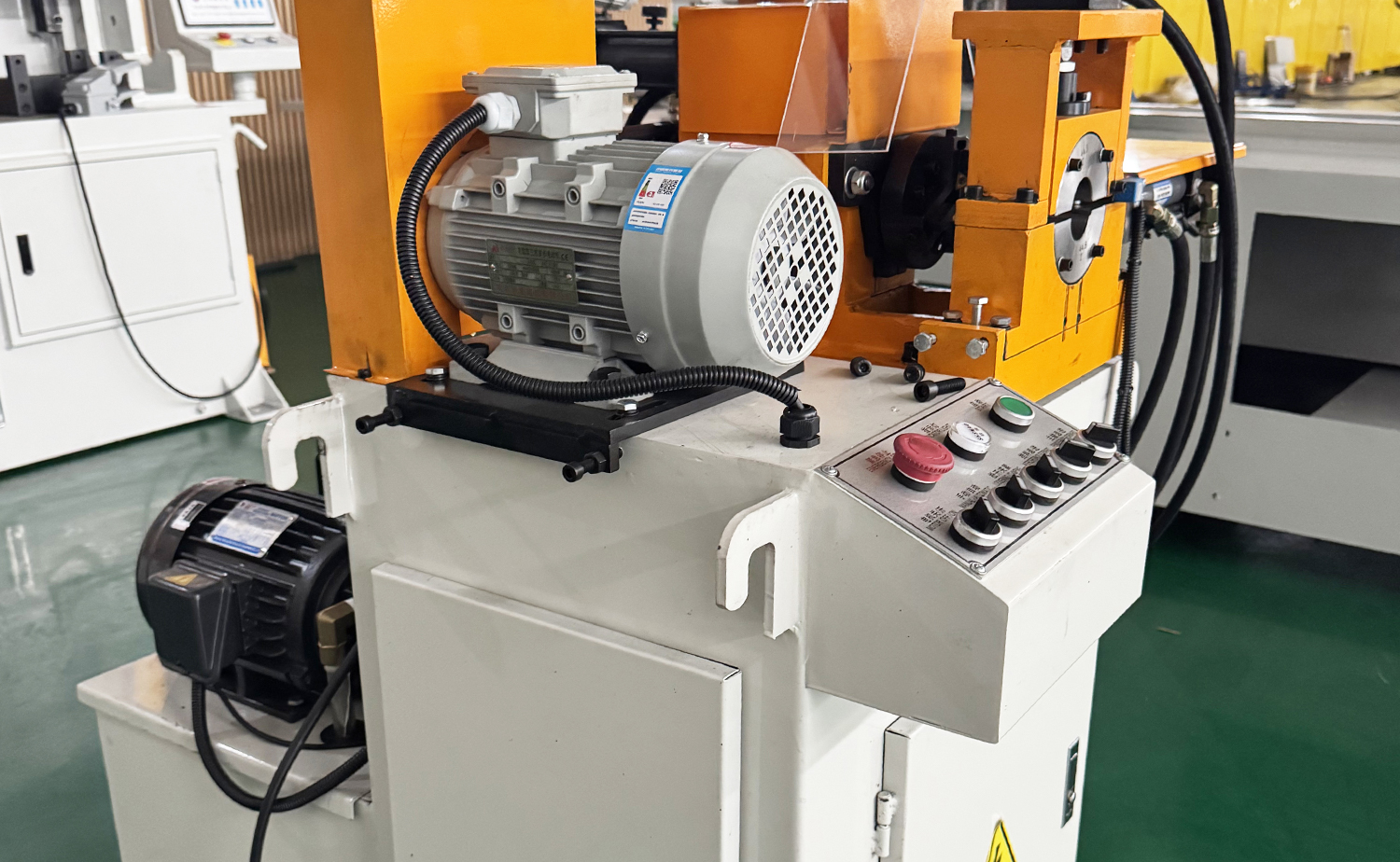

EF PV1 Series Hydraulic Semi-Automatic Tube Chamfering Machine
Back
Features
Basic Parameters
Video
Industry Applications
Contact Us
Features

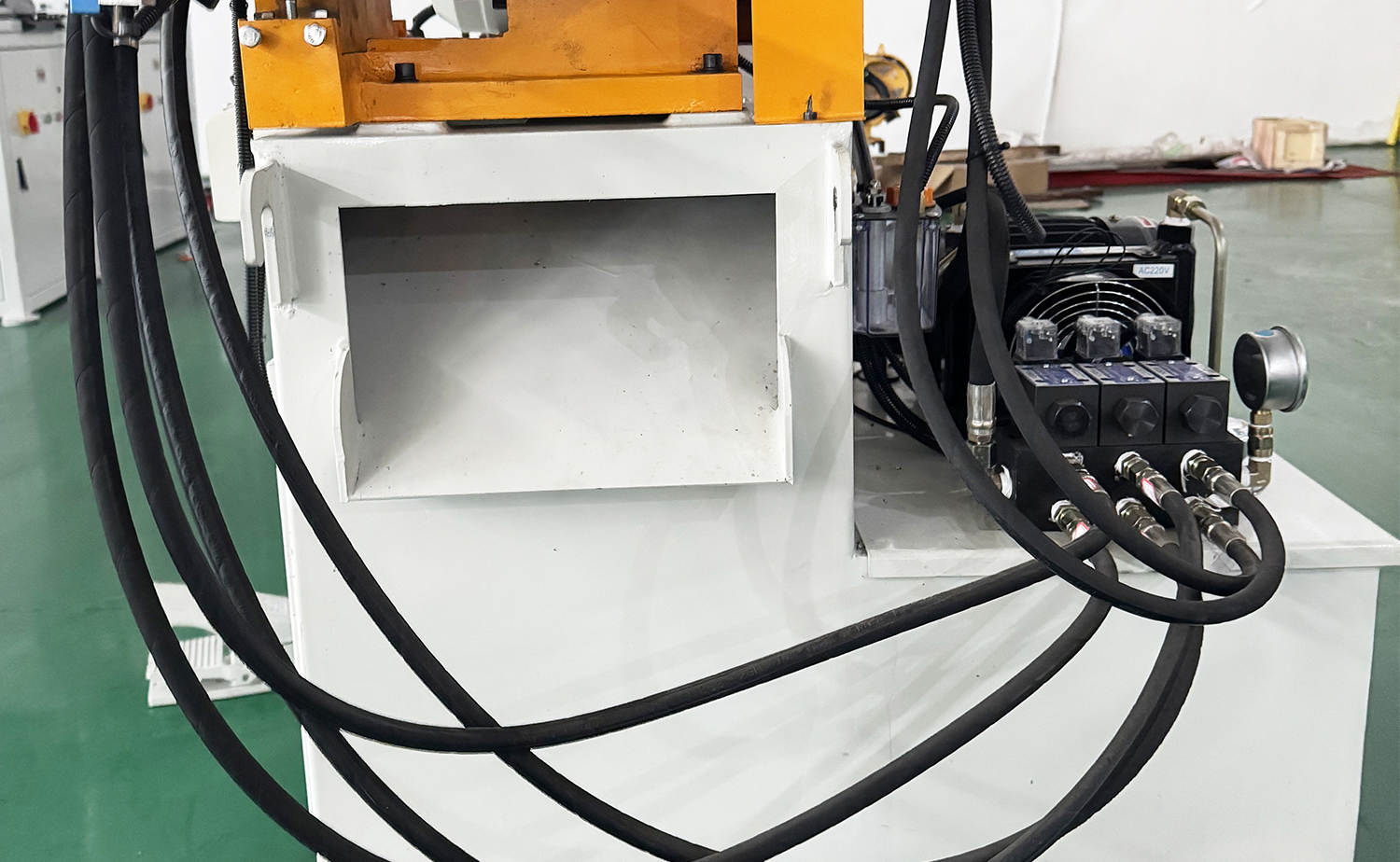

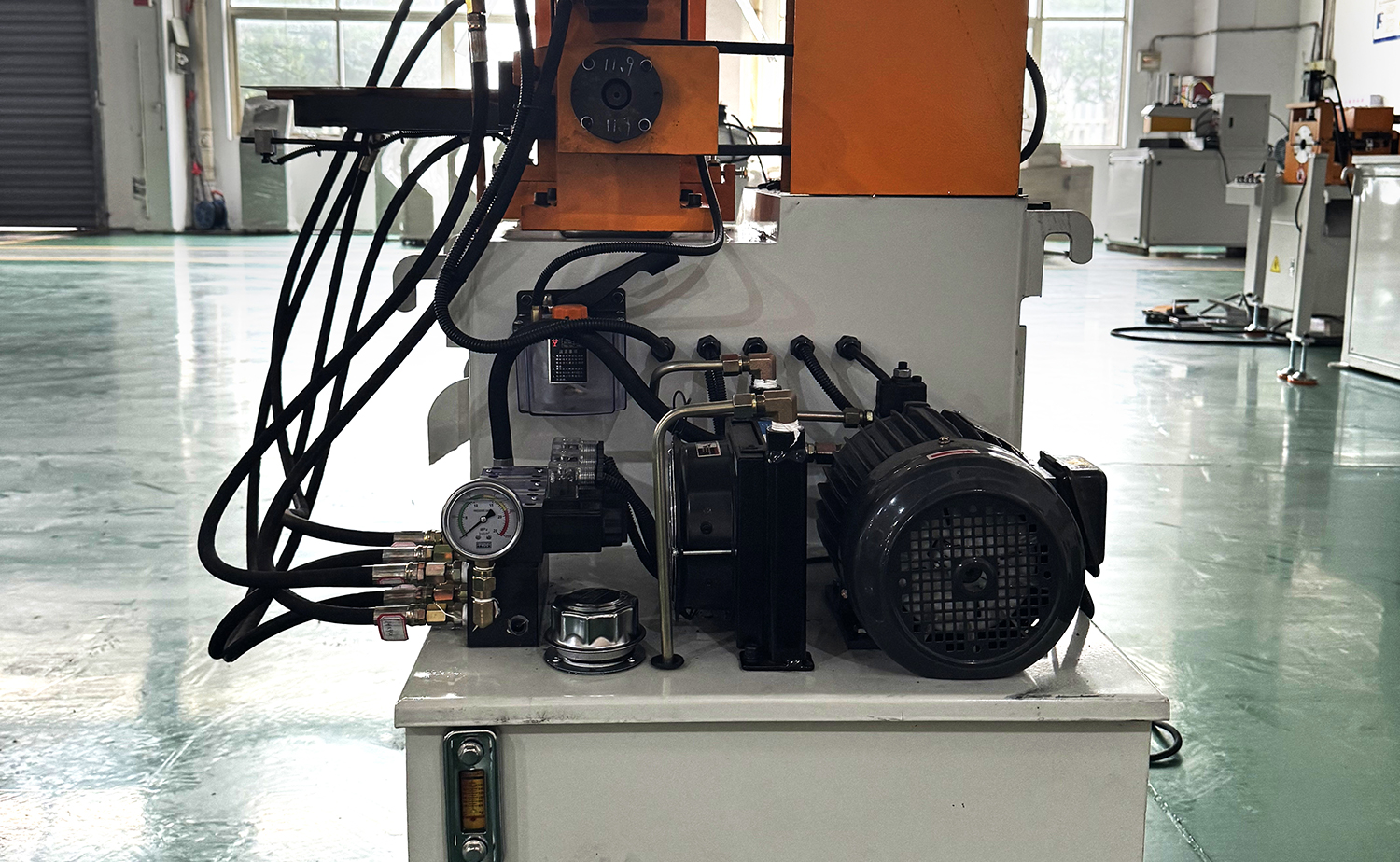

1.This semi-automatic machine features manual feeding with automatic chamfering, all powered by a hydraulic system for efficient operation.
2.The chamfering process can be performed on one side (flat face), two sides (internal and external of the tube), or three sides (flat face, internal, and external), offering flexibility to meet your specific needs.
3.Compatible with a variety of materials, including carbon steel, stainless steel, copper, and aluminum, making it versatile for different industrial applications.

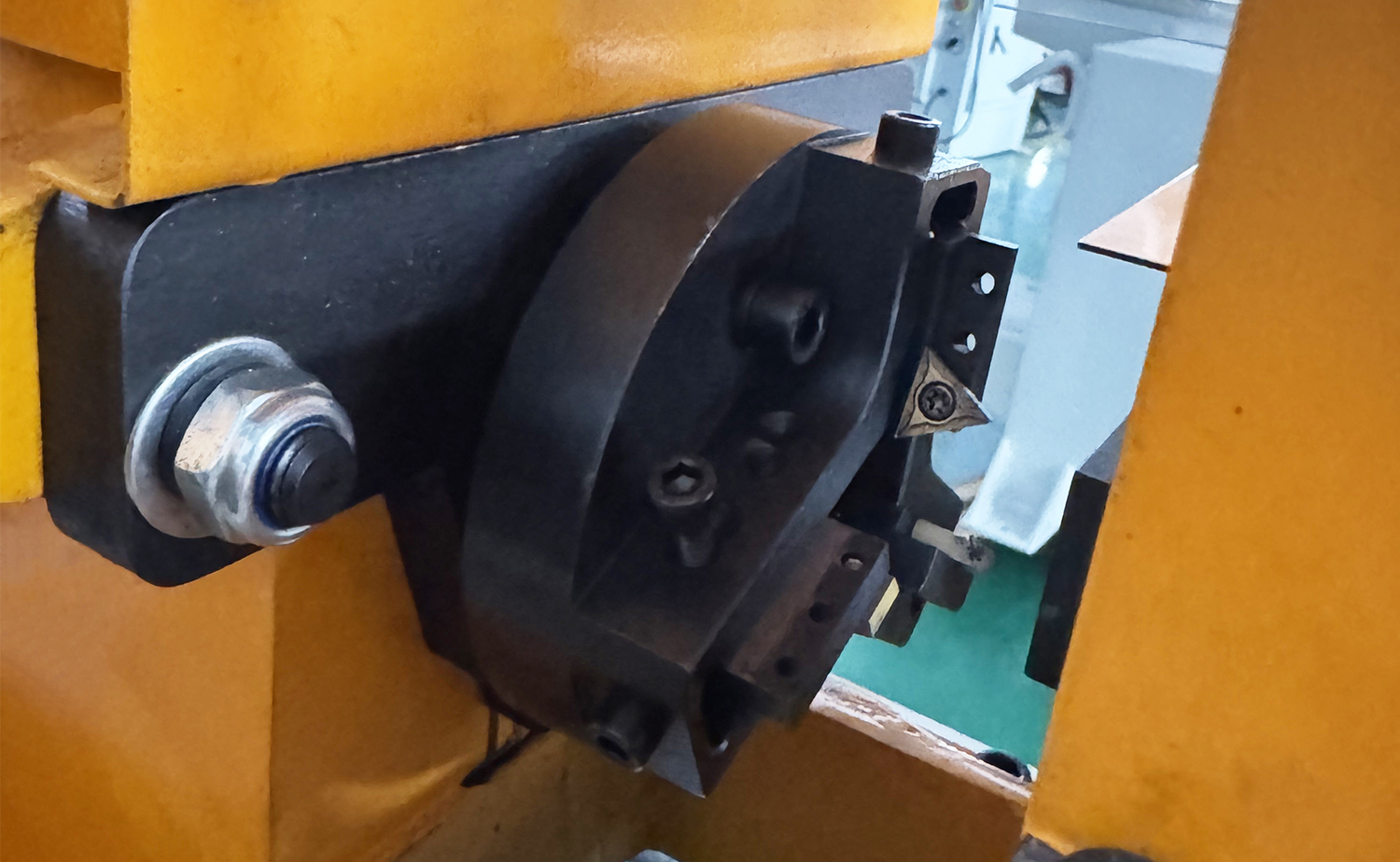

4.The chamfering knife moves forward and backward, with the entire chamfering action driven automatically by hydraulics, ensuring precise and smooth operation.
5.The chamfering process is completed in a single pass, achieving fast speeds while maintaining high precision to meet your exact chamfering requirements.
6.The clamp device and knife holder are engineered with high precision to ensure that the centerline of the workpiece and the knife holder remain perfectly aligned, ensuring accurate results.
Parameter table
Main Technical Parameter
| Name | EF-120PV | EF-150PV |
| Main Motor Power | 3 KW | 3 KW |
| Chamfering Capacity | Pipe Diameter:Φ28—Φ114mm | Pipe Diameter:Φ10—Φ150mm |
| Pipe Thickness:1-8mm | Pipe Thickness:Φ0.5—Φ15mm | |
| Bar Diameter:Φ20—Φ30mm | Bar Diameter:Φ20—Φ60mm | |
| Processing Length | ≥60mm | ≥60mm |
| Processing Accuracy | ±0.1mm | ±0.1mm |
| Standard Knife Plate | One Set | One Set |
| Control Method | Hydraulic | Hydraulic |

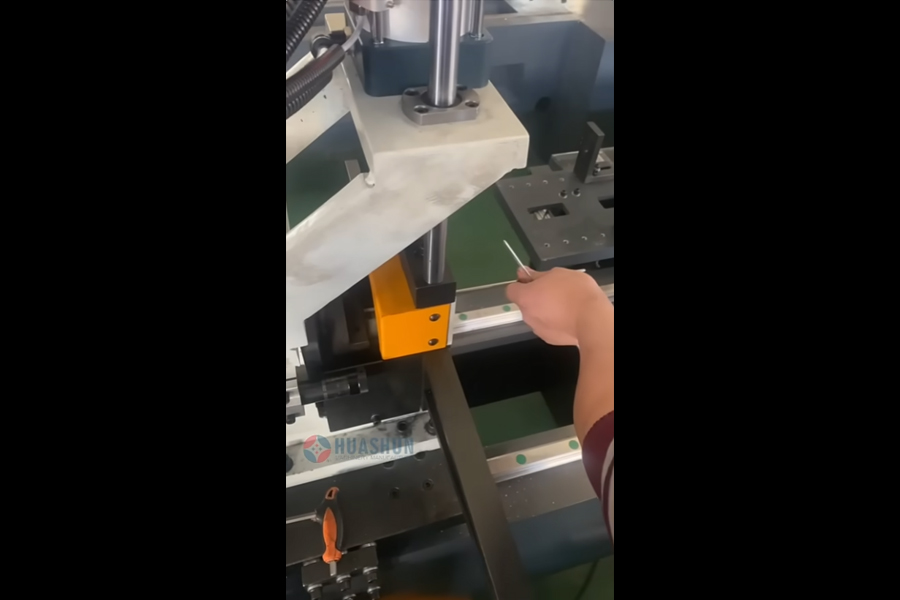

Video
