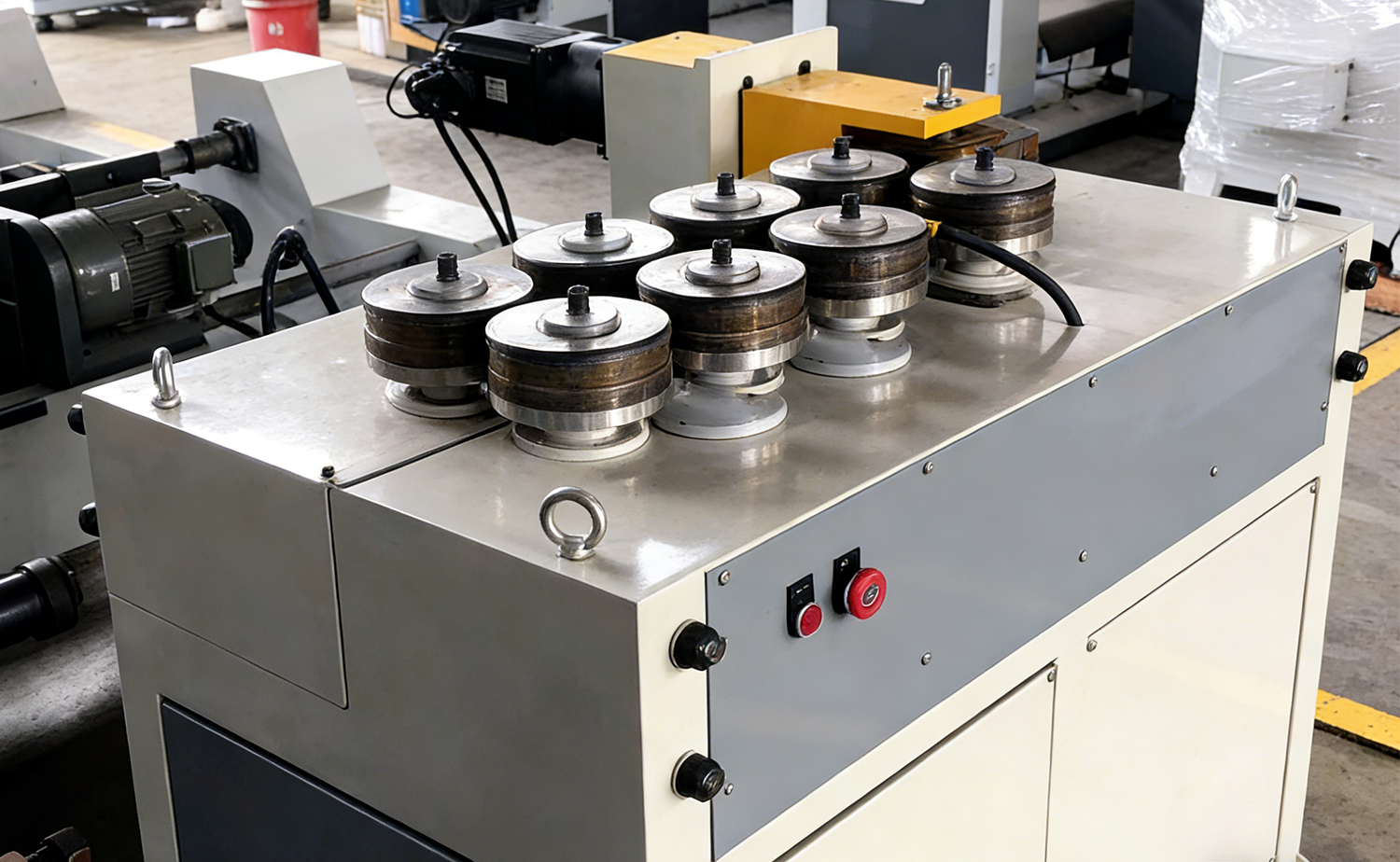

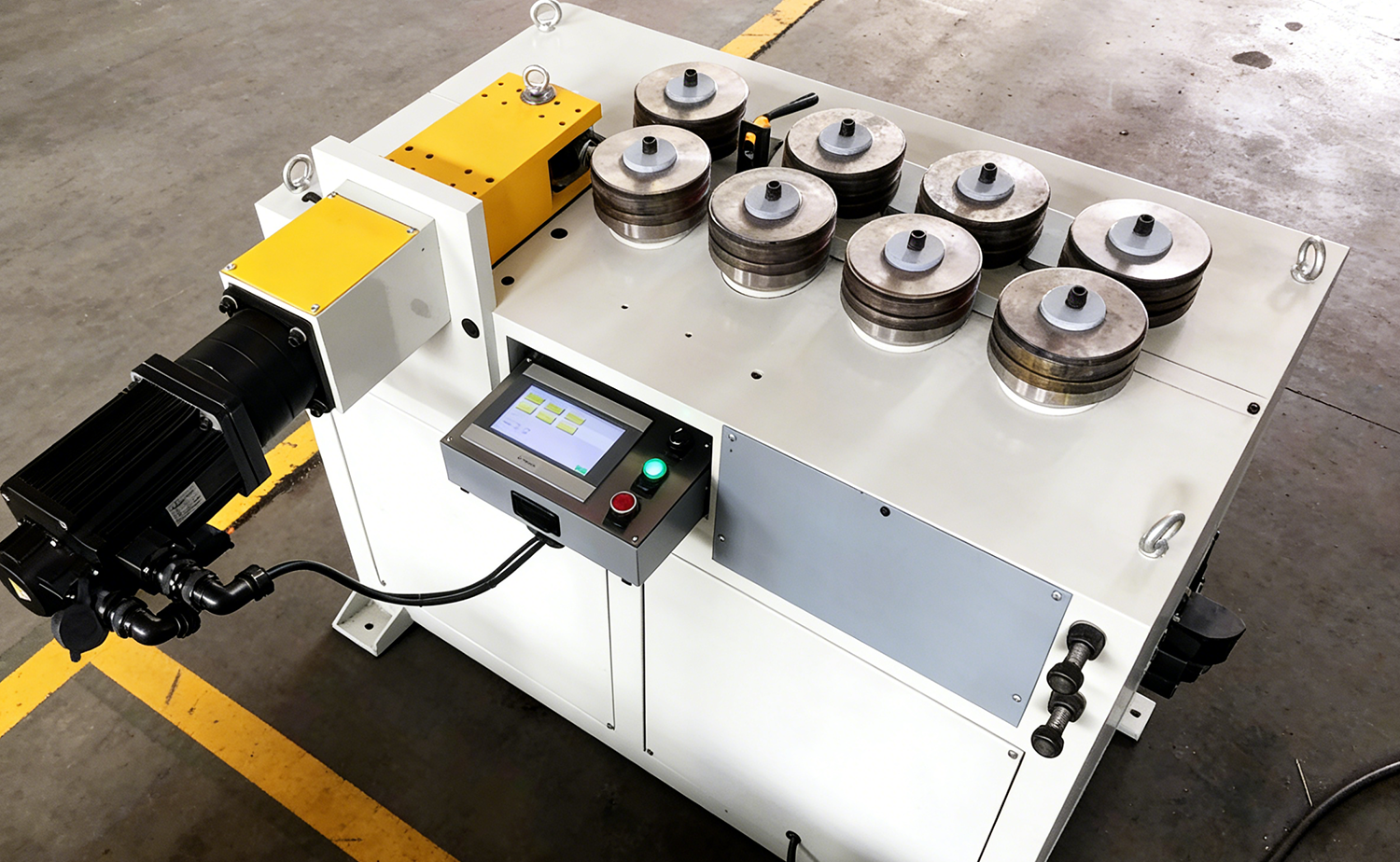

GY40 CNC Series High-Speed Thin-Walled Tube Roll Bending Machine
Back
Features
Basic Parameters
Video
Industry Applications
Contact Us
Features
1. The reducer drives the wire set to be driven by a roller, with compact structure and high reliability.
2. The wheel drive is not easy to slip, and the thin-walled material can also be bent.
3. The servo motor controls the diameter change to realize multiple different bending
radii on one pipe.
4. The foot switch also has an emergency stop, which is easy to operate.
5. The machine is balanced in transmission, only need to set the parameters on the to
uch screen, and can obtain circular, arc or spiral shapes with different curvatures.
6. Changing the groove shape of the mold can process various metal profiles, such as angle steel, flat steel, round steel and other special cross-section profiles.
7. The bending of large-radius profiles avoids the disadvantages of making extra-large pipe bending molds. It is a necessary supplement that cannot be achieved by the series of single-head and double-head pipe bending machines.
Parameter table
Main Technical Parameter
| Name | HSGY-40CNC | HSGY-60CNC | HSGY--80CNC | HSGY-120CNC |
| Max. Rolling Capacity(carbon steel) | Φ40×2.5mm | Φ60×2.0mm | Φ80x3mm | Φ120x4mm |
| Max. Rolling Capacity(stainless steel) | Φ40×1.3mm | Φ50×2.0mm | Φ80x2mm | Φ110x3mm |
| Min. Bending Radius | R=4-7.5D | 80mm | 4-7.5 tims of tube OD | R=10D |
| Max. Bending Radius | No limitation | No limitation | No limitation | No limitation |
| Rolling Speed | 50-150mm/s | 50-150mm/s | 50-150mm/s | 8m/min |
| Rolling Mould Rotating Speed | 30r/min | 36r/min | 20r/min | 15r/min |
| Bending Mold Diameter | 136mm | 200mm | 280mm | |
| Bending Servo Motor Power | 0.75 kw | 1 kw | 2 kw | 5kw (Mitsubishi) |
| Feeding Frequency ConverterMotor Power | 3kw | 4KW | 7.5KW | 15kw(China Brand) |
| Machine Dimension | 900x600x1500mm | 1000x800x1100mm | 1500x1300x1200mm | 2000x2000x1300mm |
| Machine Weight | 700KGS | 1000KGS | 1500KGS | 4000KGS |

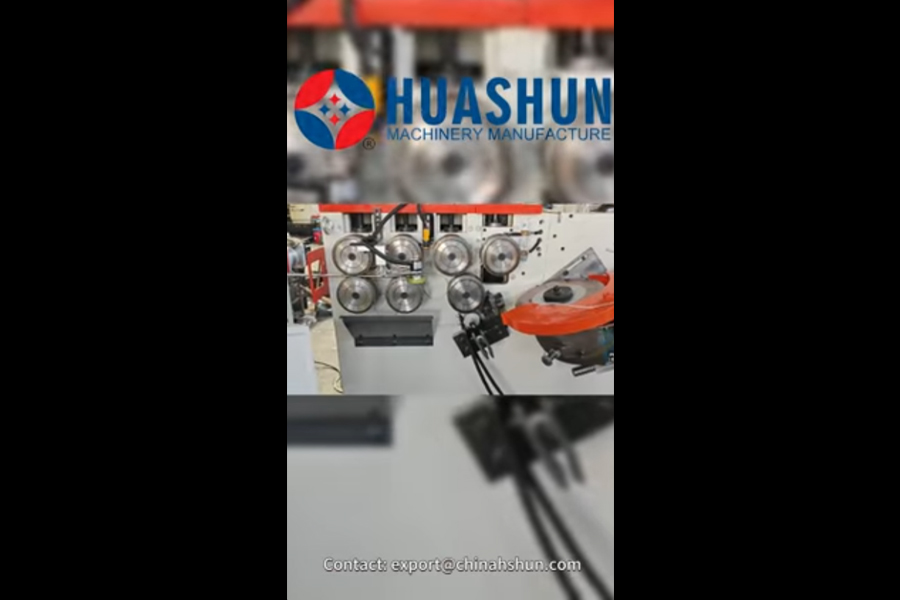

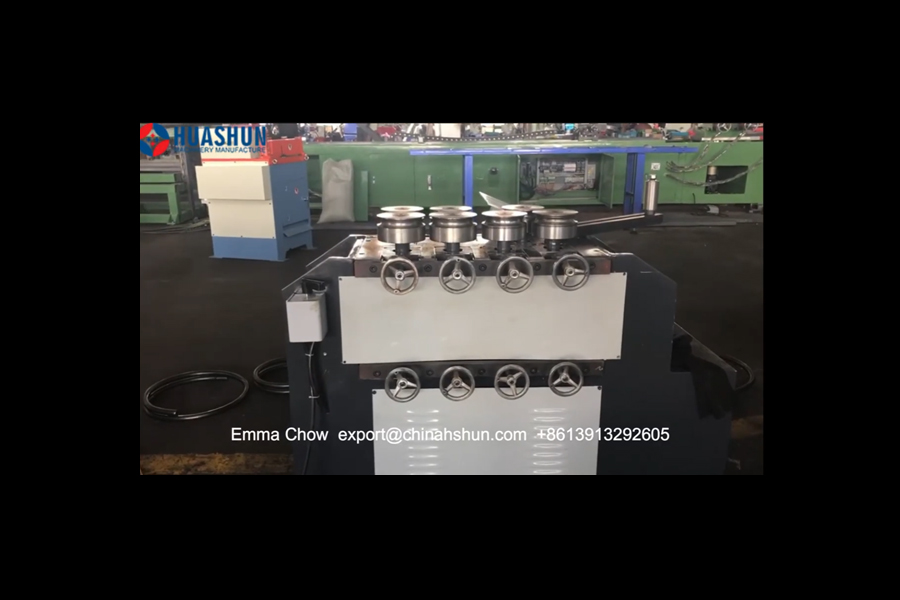

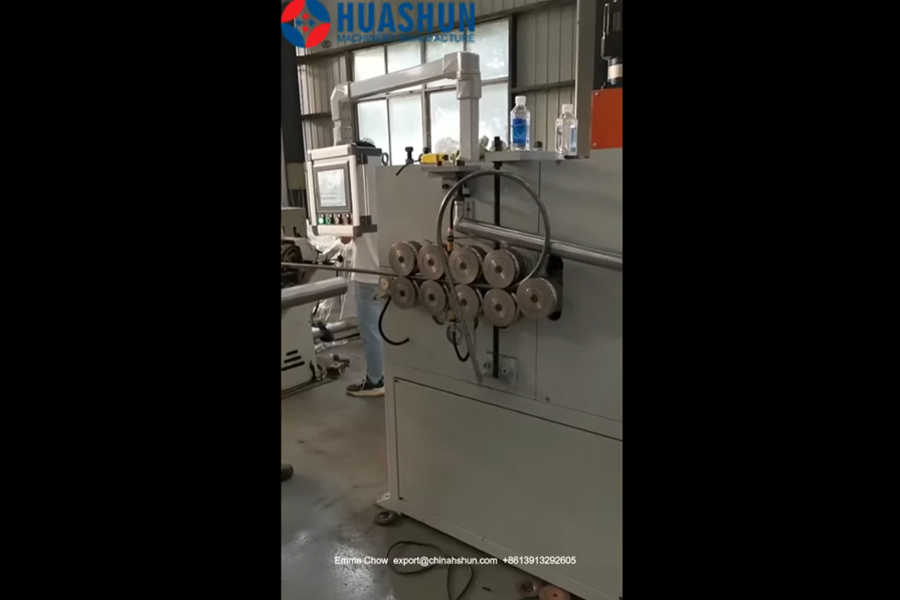

Video
