CNC360 Series High Precision Fully Automatic Hydraulic Aluminum Cutting Machine
Back
Features
Basic Parameters
Video
Industry Applications
Contact Us
Features
Fully Automated: Servo motor feeding, hydraulic clamping, and cutting for efficient, automated operation.

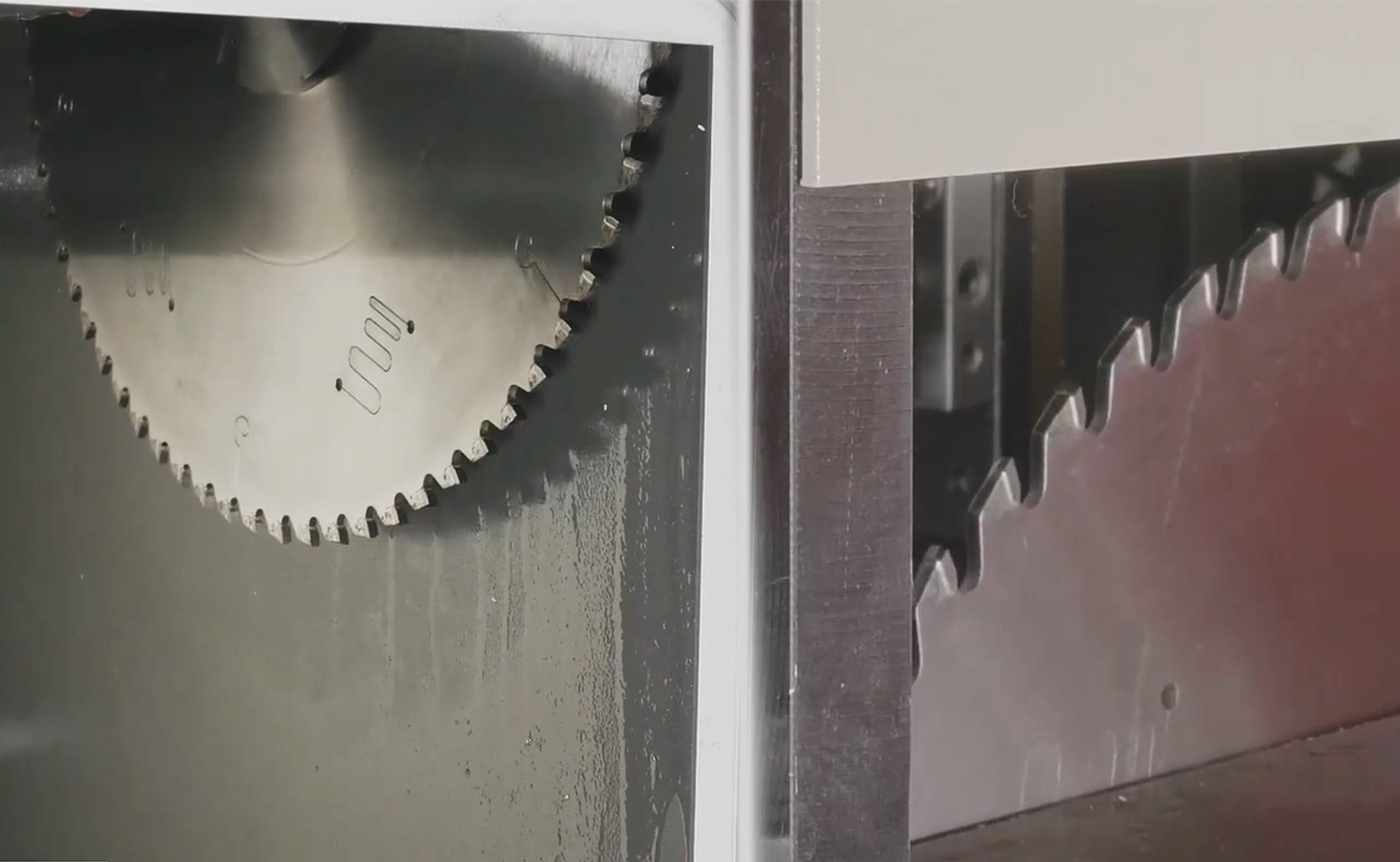

Precision Cutting: Hydraulic saw head for smooth cuts in aluminum and brass tubes.
Versatile: Cuts copper, aluminum tubes and bars, and copper solid bars.

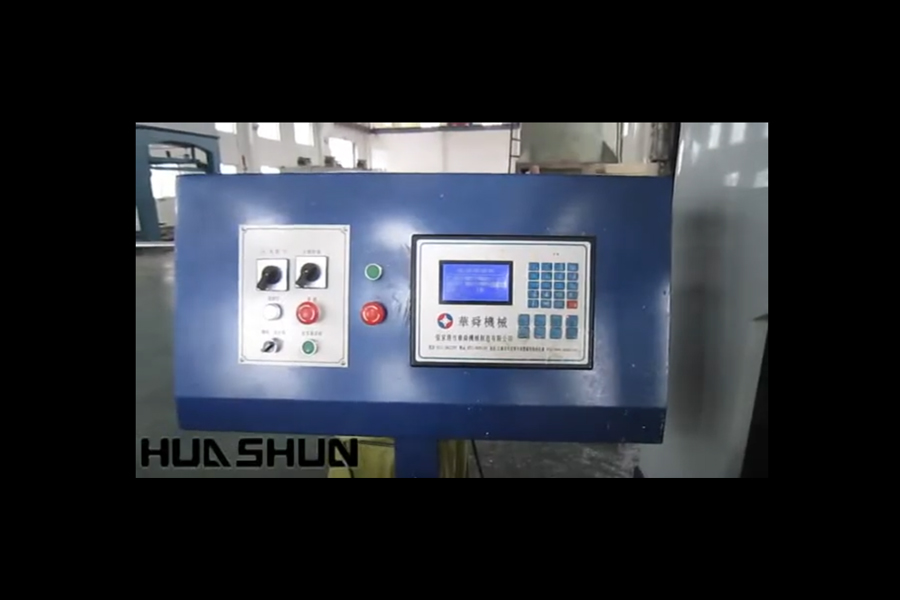

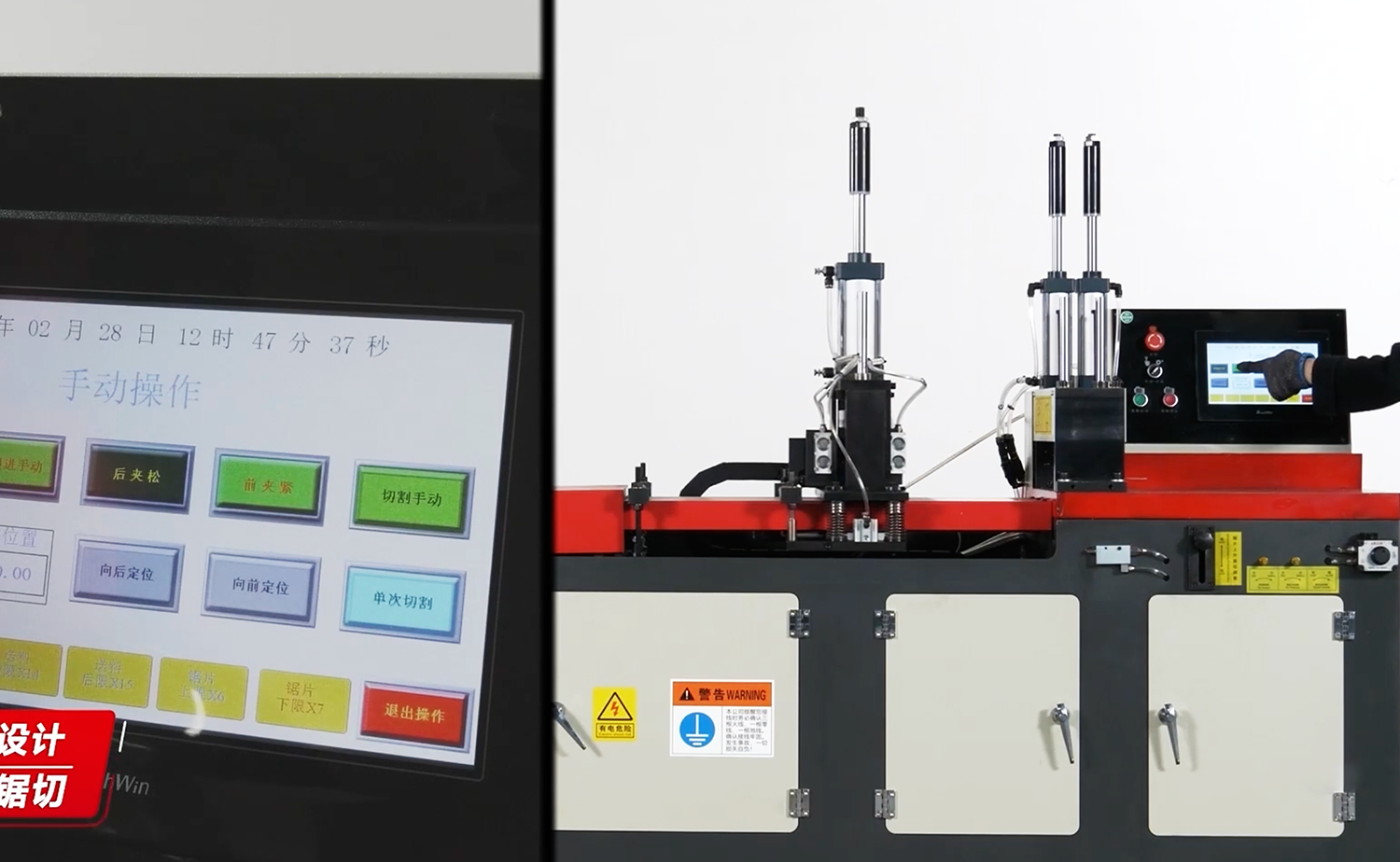

User-Friendly: Easy-to-use PLC touch screen with auto and manual modes.

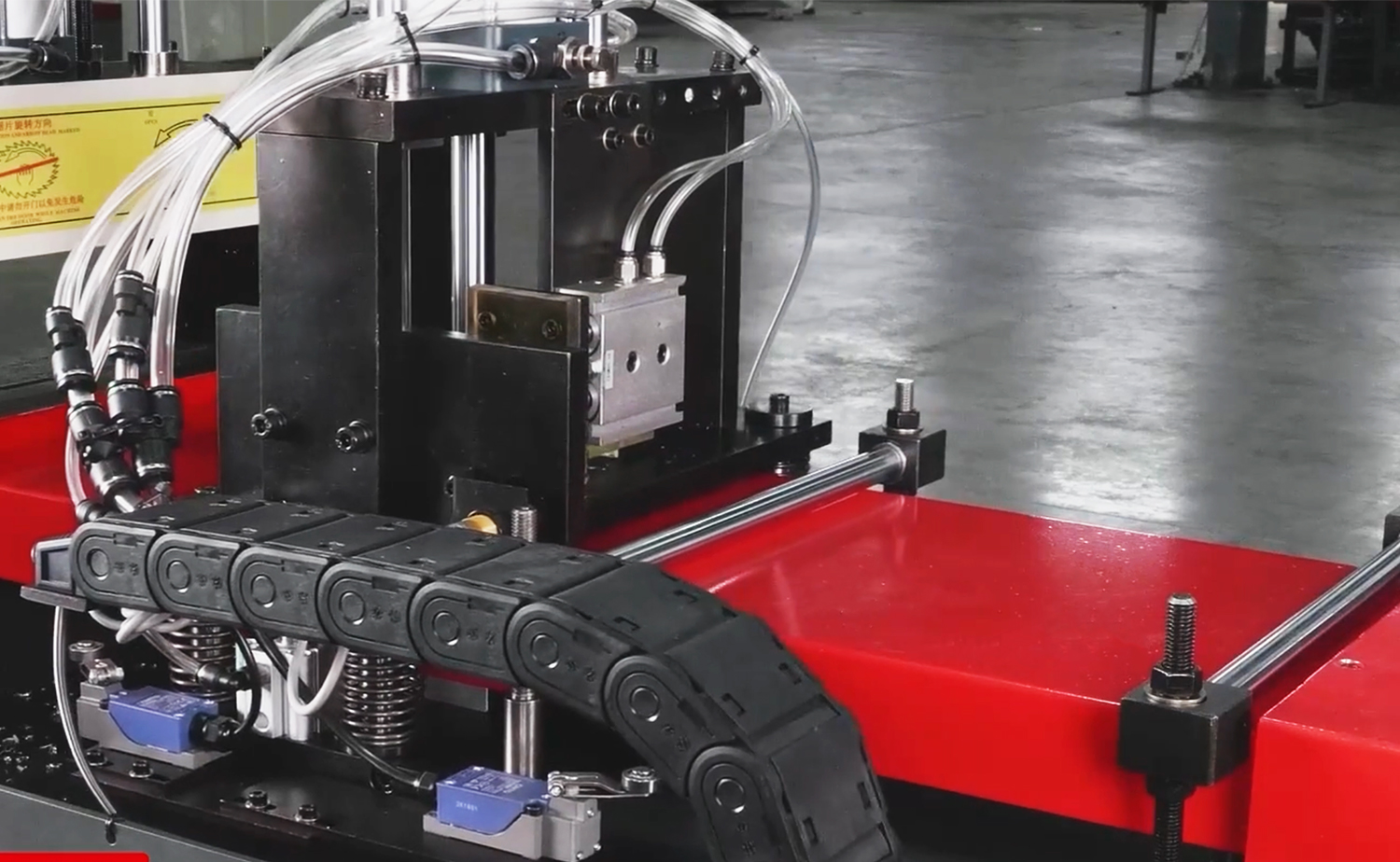

Hydraulic System: Hydraulic-driven clamping, saw blade motion, and clamp releasing for reliable operation.
Burr-Free Cutting: Clean cuts with no burrs on both internal and external tube surfaces.
Durable: Water cooling and lubrication system extend machine and blade life.
Stable Performance: High-quality mechanical parts ensure smooth, stable operation.
Certifications: CE and ISO9001 certified for safety and quality.
Parameter table
| Model | MC-360CNC |
| Max Cutting Capacity |  110mm |
 95×95mm |
|
| ● 77mm | |
| ■ 55×55mm | |
 25mm×9pieces |
|
| Motor Power | 5.5 kW |
| Hydraulic Pump Motor Power | 4 kW |
| Feeding Servo Motor Power | 0.75 kW |
| Cooling Pump | 90 W |
| Spindle Rotating Speed | 3600 RPM |
| Cutting Angle | 90° |
| Hydraulic Pressure | 25-30 kgf |
| Cutting Speed | Step-less Speed |
| Cooling Mode | Cycling Water Cooling |
| Feeding Accuracy | ± 0.1 mm |
| Feeding Length | 6-600 mm/one time |
| Saw Blade Size | 355 mm |
| Machine Dimension | 2800×1200×2200 mm |
| Machine Weight | 1580 kg |
