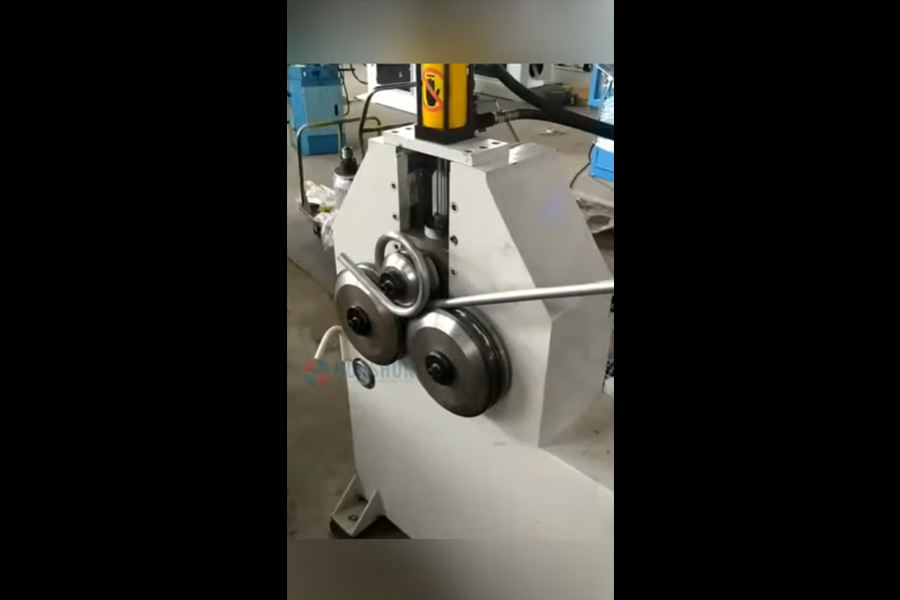

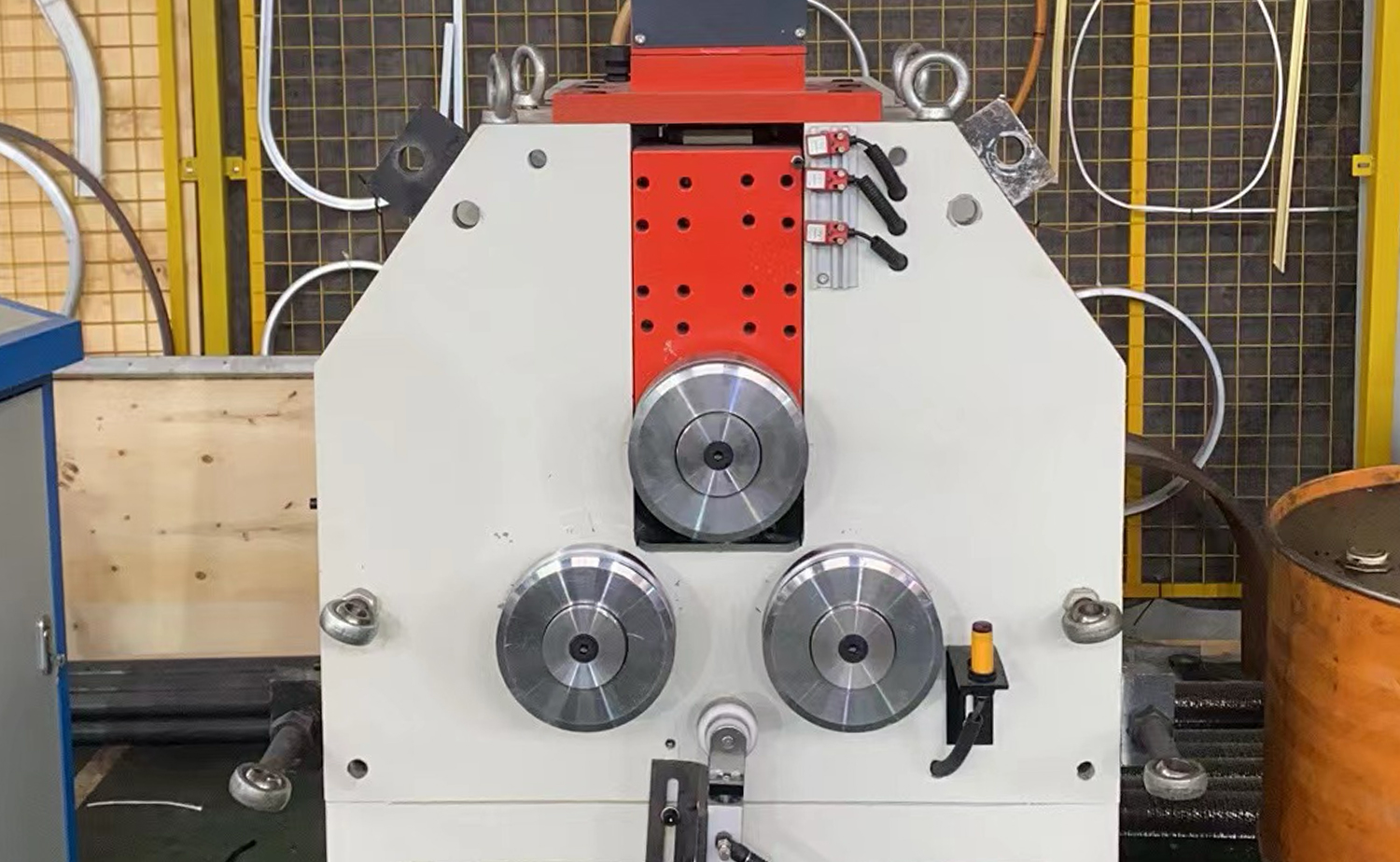

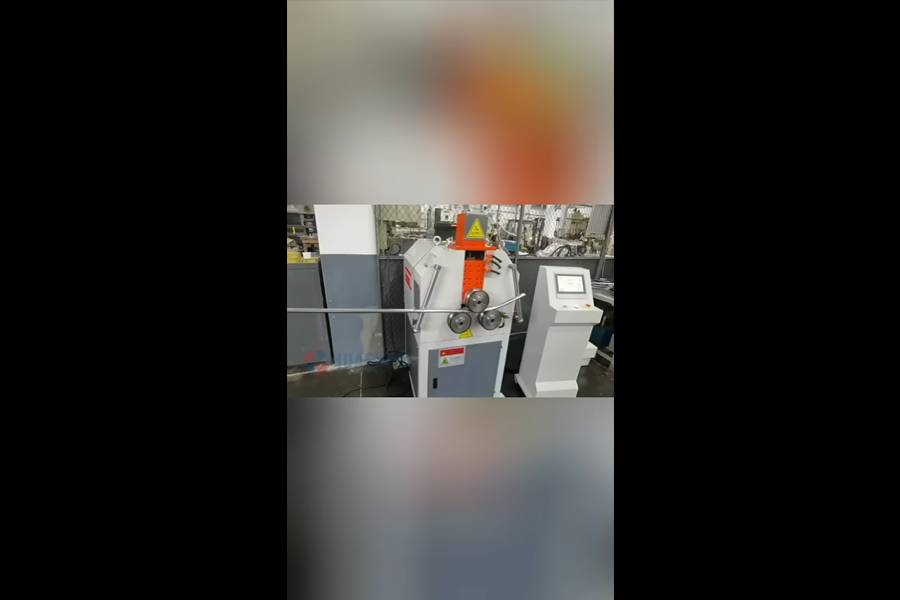

CNC Series Tube Roll Bending Machine for Metal Profiles
Back
Features
Basic Parameters
Video
Industry Applications
Contact Us
Features
1. The reducer drives the wire set to be driven by a roller, with compact structure
and high reliability.
2. The wheel drive is not easy to slip, and the thin-walled material can also be bent.
3. The servo motor controls the diameter change to realize multiple different bendin
g radii on one pipe.
4. The foot switch also has an emergency stop, which is easy to operate.
5. The machine is balanced in transmission, only need to set the parameters on the
touch screen, and can obtain circular, arc or spiral shapes with different curvatures.
6. Changing the groove shape of the mold can process various metal profiles, such
as angle steel, flat steel, round steel and other special cross-section profiles.
7. The bending of large-radius profiles avoids the disadvantages of making extra-large
pipe bending molds. It is a necessary supplement that cannot be achieved by the se
ries of single-head and double-head pipe bending machines.
Parameter table
Main Technical Parameter
| Name | HSGY-60CNC-3-2X |
| Max. Rolling Capacity(carbon steel) | Φ60×2mm |
| Max. Rolling Capacity(stainless steel) | Φ56×1.5mm |
| Min. Bending Radius | R=8-15D |
| Max. Bending Radius | No limitation |
| Rolling Mould Rotating Speed | 20r/min |
| Bending Mold Diameter | 156mm |
| Arc pressing servo motor | 1 kw |
| Feeding Motor Power | 4.4kw |
| Machine Dimension | 1300x800x1100mm |
| Machine Weight | 1000KGS |
