CNC455 Series Fully Automatic Aluminum and Copper Cutting Machine
Back
Features
Basic Parameters
Video
Industry Applications
Contact Us
Features
Vertical Saw Blade: Safe, up-and-down motion for efficient cutting.
Burr-Free: Smooth cuts with no burrs on tube edges.
Flexible: Cuts single or multiple pieces, including round, square, rectangle, solid bar, and more.
Blade Protection: Spray lubrication extends blade life and improves cutting quality.
Electronic Control: Adjustable clamping and cutting times for optimized performance.
Low Noise: Operates quietly for a more comfortable workspace.
Cooling System: Water cooling and lubrication to prolong machine and blade life.
Stable Operation: High-quality parts ensure reliable performance.
Certifications: CE and ISO9001 certified for safety and quality.
Parameter table
Main Technical Parameter
| Model | MC-455CNC |
| Cutting Angle | 90° |
| Max Height | 125 mm |
| Max Width | 280 mm |
| Feeding Length (one time) | 700 mm |
| Driven Motor for Blade | 4 kW |
| Feeding Motor | 750 W |
| Clamp Way | up & down |
| Feeding Servo Motor Power | 0.75 kW |
| Motor Speed | 2880 RPM |
| Feeding Accuracy | ± 0.1 mm |
| Pneumatic Pressure | 6-8 kg/cm³ |
| Blade Size | 355-455 mm |
| Machine Dimension | 2100×800×1600 mm |
| Machine Weight | 750 kg |

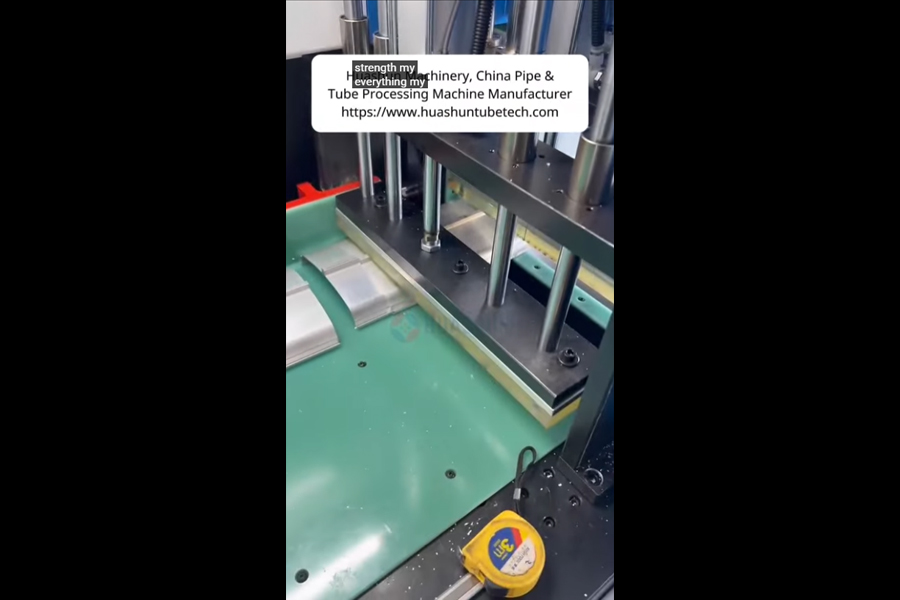

Video
