CNC Series Automatic Single Cylinder Hydraulic Punching Machine
Back
Features
Basic Parameters
Video
Industry Applications
Contact Us
Features
The CNC Series Automatic Single Cylinder Hydraulic Punching Machine is a fully automated punching system, powered by a high-performance hydraulic unit. This machine is designed to efficiently punch holes in a variety of materials, including steel tubes, stainless steel tubes, iron pipes, and aluminum alloys, creating precise hole shapes for diverse applications.

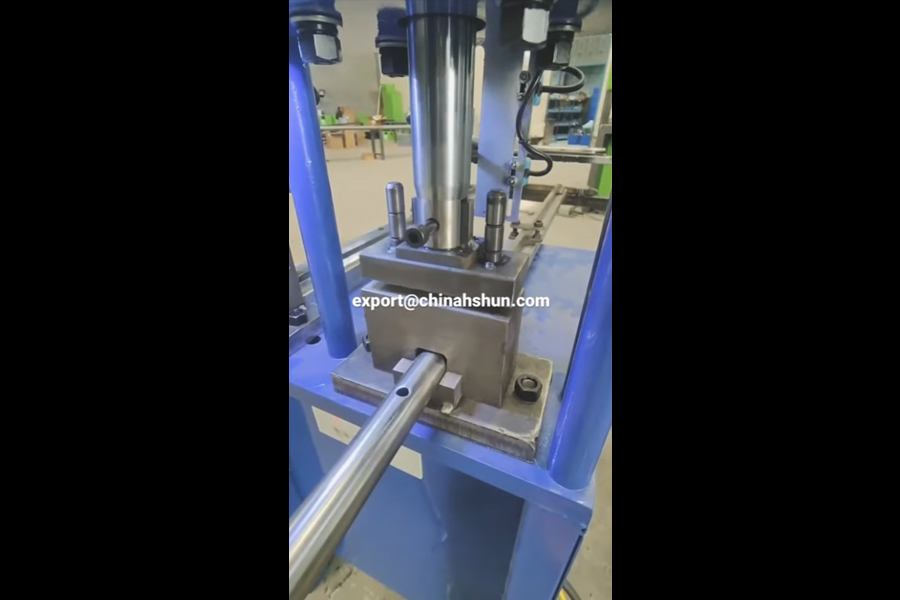

Operators simply load the pipe into the punching molds, and the machine automatically feeds the pipe according to the predefined settings. It then punches holes with high accuracy, based on the programmed parameters such as pipe length, hole quantity, and spacing. These parameters are easily configured via a user-friendly PLC control system, with an intuitive touch screen interface that supports multiple languages for global accessibility.
This punching machine is especially popular in the rack shelving industry, providing manufacturers with a reliable, high-efficiency solution for mass production. Its seamless automation and high precision make it a preferred choice for businesses looking to streamline their production processes while ensuring consistent, high-quality results.
Parameter table
Main Technical Parameter
| Model | HS-P-100-1P |
| Control | CNC/Automatic Feeding |
| Feeding Accuracy | ±0.15 mm |
| Punching Mold Accuracy | ±0.01 mm |
| Hole Size Accuracy | ±0.10 mm |
| Driven Power | Hydraulic |
| Hydraulic Oil Tank | 160 L |
| Hydraulic Cooling System | Yes |
| Cylinder Inner Diameter: | 100 mm |
| Max. Hydraulic Pressure | 15 MPA |
| Max. Punching Force | 12Tons |
| Max. Material Thickness | 2.0 mm |
